WXT520 Weather Transmitter

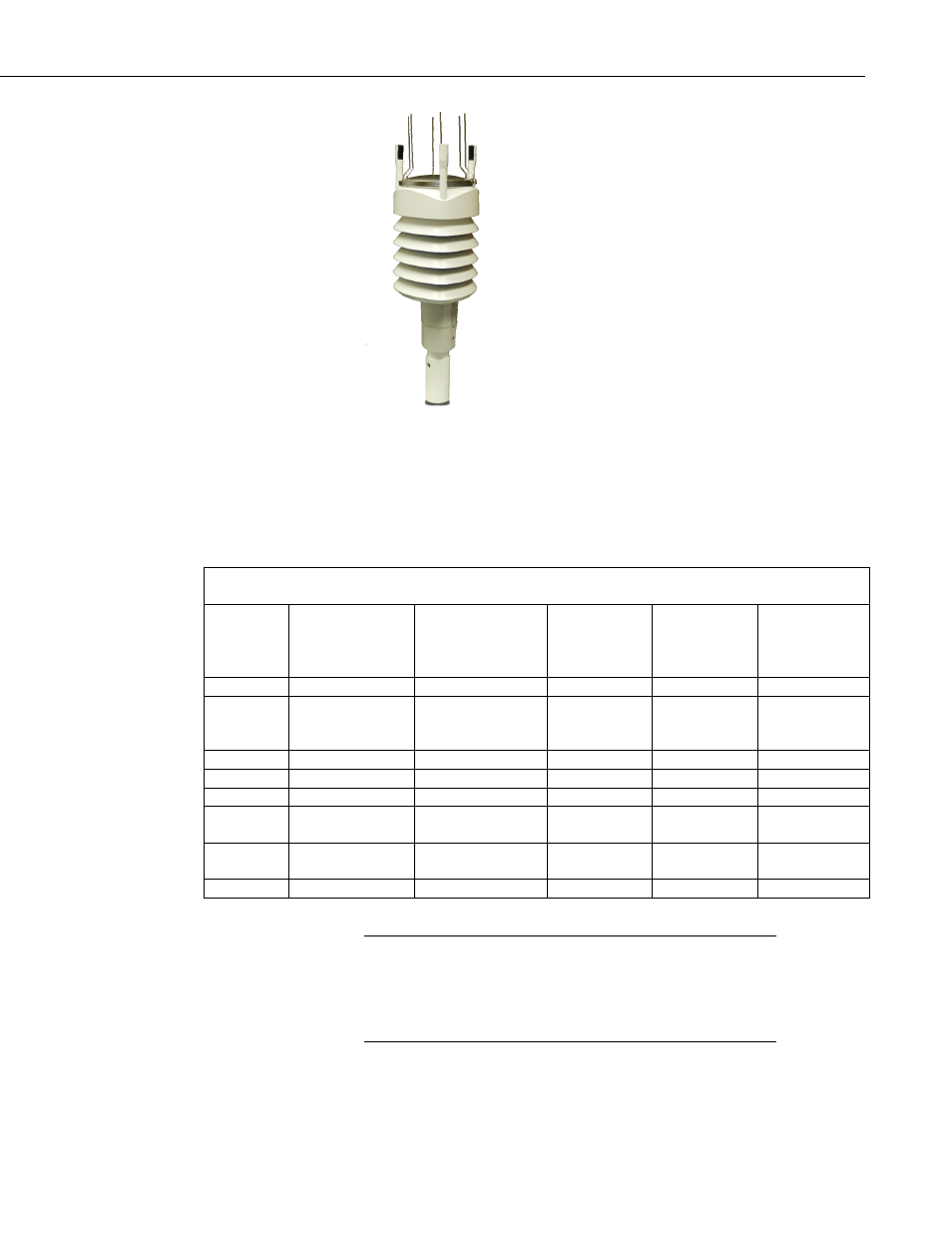

FIGURE 6-2. Optional bird spike device
6.4 Wiring Table
TABLE 6-1. Connections to Campbell Scientific Dataloggers
Color
Description CR1000, CR800,
CR850, CR3000,
CR5000,
CR9000(X)
CR10(X),
CR510
21X, CR23X,
CR7
CR200(X)
Brown Power 12 V 12 V +12 SW Battery
Clear
(silver)
or Red Power ground G G G G
Blue SDI-12 Signal C1 C2 C2 C1
White SDI-12 Signal C1 C2 C2 C1
Green data ground G G G G
Yellow Optional heater
power (see note)
12V 12V +12 SW Battery
Pink Optional heater
ground (see note)
G G G G
Grey Not used Not used Not used Not used
Unless special ordered, the heater will not be operational for
WXT520s purchased from Campbell Scientific. Although the
heater is not operational, the WXT520 will have a pink and
yellow wire. Do not connect the pink and yellow wire unless the
heater is operational. NOTE
5
