Benefits
„ Remote individual control of up to 136 power outlets
„ Dual power inputs allows increasing total load and security
„ Outlet Grouping allows controlling multiple power supply servers and devices
„ Power-up sequencing avoids in-rushes currents at start-up
„ IP device, temperature and humidity monitoring
„ Programmable restart delays and labels
„ Access protected by names and passwords
„ Firmware upgrade over the LAN for future product enhancements

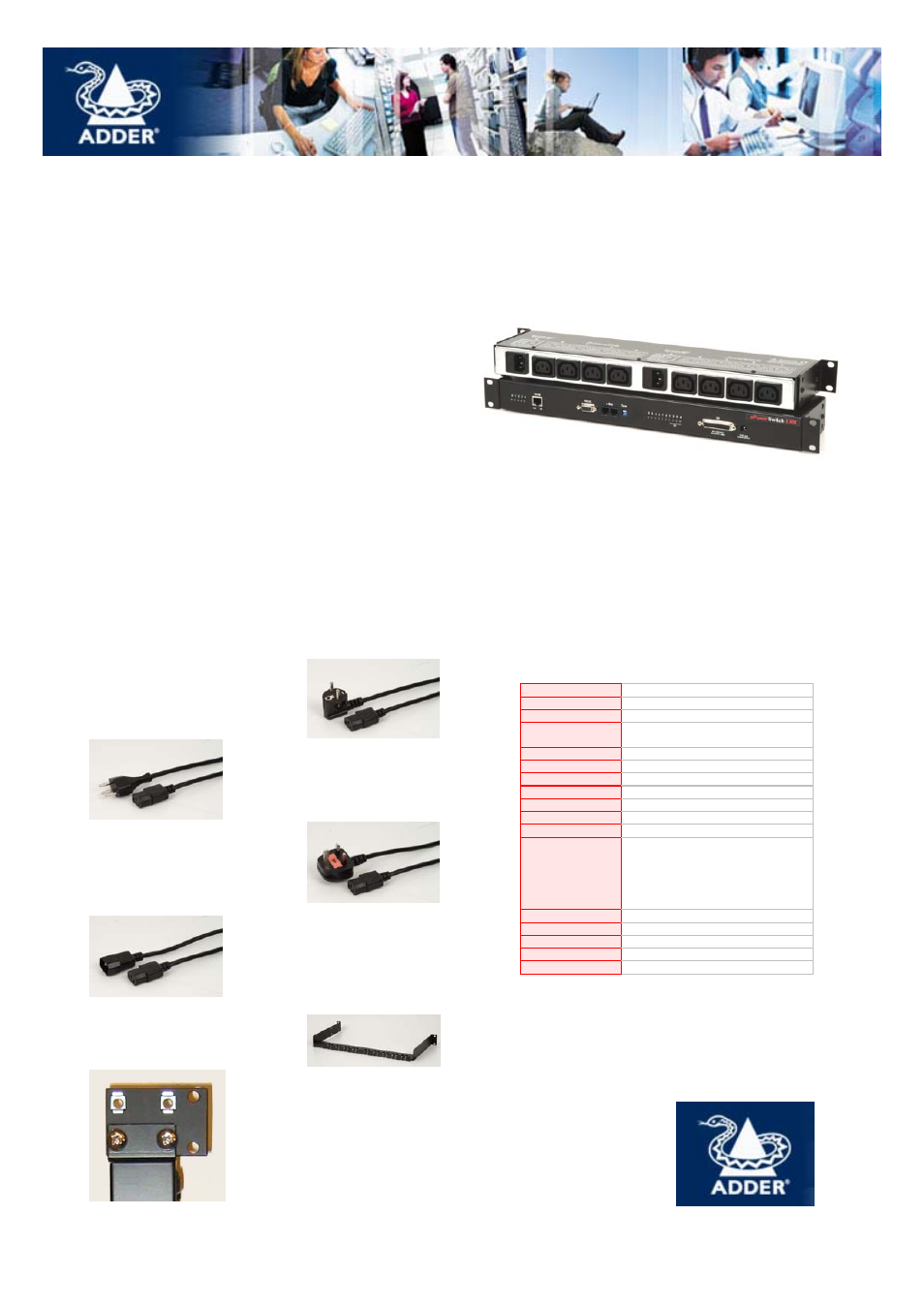

ePowerSwitch 8XM Master
Front side / Back side
A series of front-panel LEDs provide quick status checks.
2 separate AC inputs allow power managing of devices
with redundant power supply and a total load of 20Amp / 230V.
What’s included
„ 1 EPS 8XM XX (XX specifies delivered power cables, see below)
„ 2 power cables IEC-320-C13 to XX (EU = Schuko/Europe standard,
CH =Swiss standard or UK = British standard) 1.80 Meters
„ 1 serial cable (SUB-D9 male/female) 1.80 Meters
„ 1 CD-ROM containing User Guide in English and IP Configuration Tool
Accessories
Technical Features
Power Cable 230 V / 10 A
„
Swiss standard
„ Swiss to IEC-320 C13
„ 1.80 Meters, Black, Part-Nr.: 19.08.1220
Power Cable 230 V / 10 A
„
Schuko/Europe standard
„ Schuko CEE 7/EU1-16P to IEC-320 C13
„ 1.80 Meters, Black, Part-Nr. 19.99.1018
Network standards IEEE 802.3, 10 / 100 BASE-T
Network protocols TCP/IP, HTTP
Network connection RJ-45 connector for UTP CAT5
Max. network cable
length 100 meters (not included)
Serial connection RS232, SUB-D 9 female
SSL Technology Version 2 and 3
Nominal input voltage 230 V/50Hz
Input power socket IEC-320
Output voltage 230 V/50Hz
Output power socket IEC-320
Maximum total current 2 x 10 A
LEDs 1 for Power Supply A
1 for Power Supply B
8 for the Power Outlets status
4 for Dry Contacts Output Status
1 for Network traffic
1 for Network Speed 10 / 100 Mbits/s
Operating temperature 0°C to +40°C
Operating humidity 10% to 80%
Dimensions (LxDxH) 437 x 107 x 42 mm
Weight 2 Kg
Approvals CE, EN55022 & EN55024
Power Cable 230 V / 10 A
„
United Kingdom standard
„ British BS1363A to IEC-320 C13
„ 1.80 Meters, Black, Part-Nr.: 80.90.10
Power Cable 230 V / 10 A
„
IEC-320 C14 male to IEC-320 C13 female
„ 1.80 Meters, Black, Part-Nr.: 19.99.1515
Horizontal Rack mounting kit
with cable fastening
„
Part-Nr.: EPS-CABMAN
Vertical rack mounting kit
„
Part-Nr.: EPS-RACKMOUNT
