SP70 Solar Panel

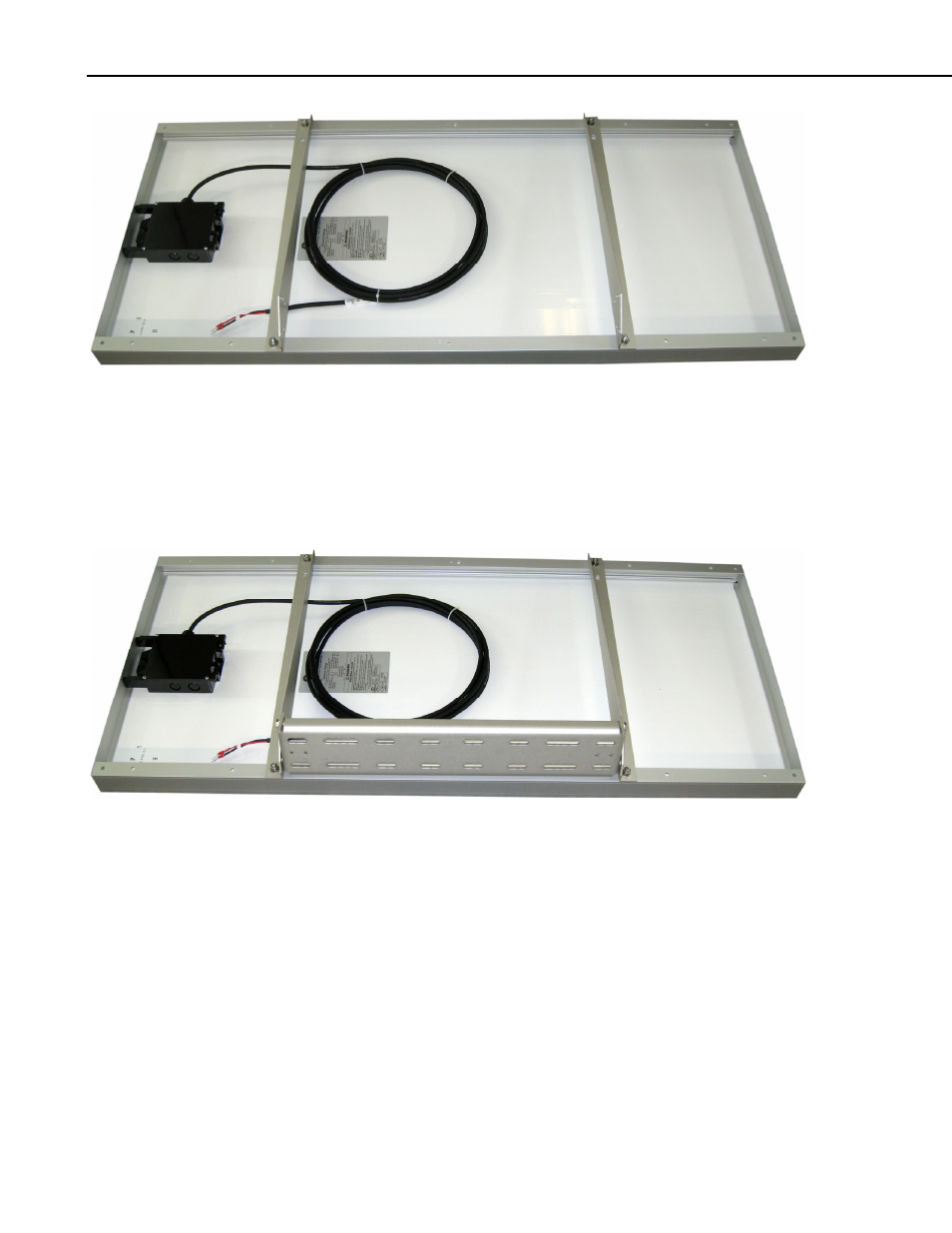

FIGURE 6. Right and Left Arm Brackets are Attached to the Back of the Solar Panel
Attach the mount to the back of the solar panel between the right and left
brackets already in place as shown in Figure 7. Use the 5/16-18 x 0.75 Hex
bolt and nuts along with the matching lock washers and flat washers. Use two
flat washers for each bolt as shown in Figure 8.
FIGURE 7. Attach the Mount to the Back of the Solar Panel between Right and Left Arm Brackets
6
