SC932 9-Pin to RS-232-DCE Interface
5

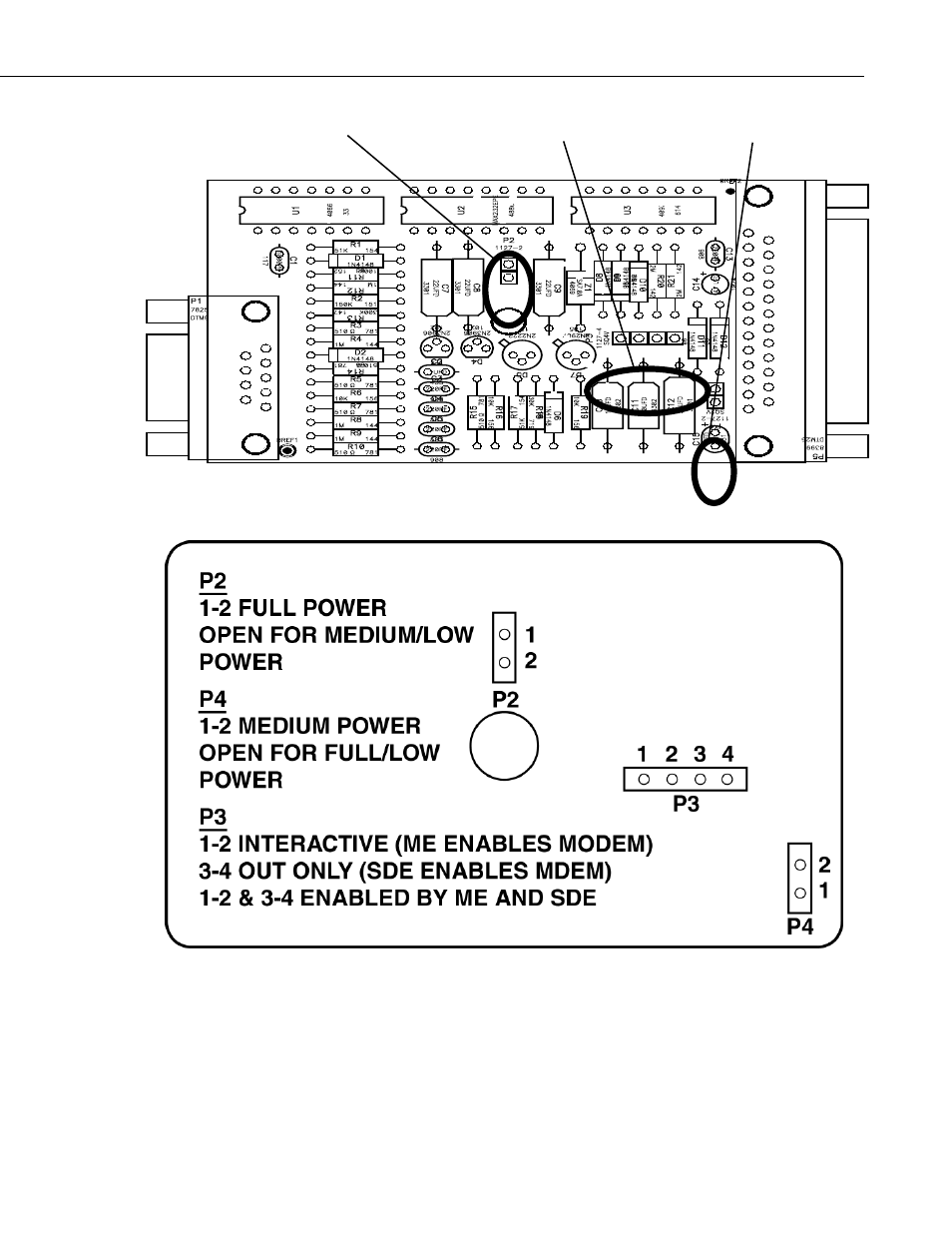

FIGURE 2. SC932 Jumper Locations
FIGURE 3. SC932 Jumper Descriptions
3.4 Jumper Descriptions
The following guidelines are used to determine the proper jumper configuration
for the modem being used. When selecting a jumper configuration always try
to keep current drain to a minimum.
P2
P3
P4
