PS100 and CH100 Power Supply and Charging Regulators
1
1
2
7
3
8
4
9
5
+5 V
GND
HS
Ring
+12 V
RX
TX
ME
Ring
RX
TX
ME
2
3
4
5
6
7
8
9
+12 V
+5 V
1.85 A
Thermal
Fuse

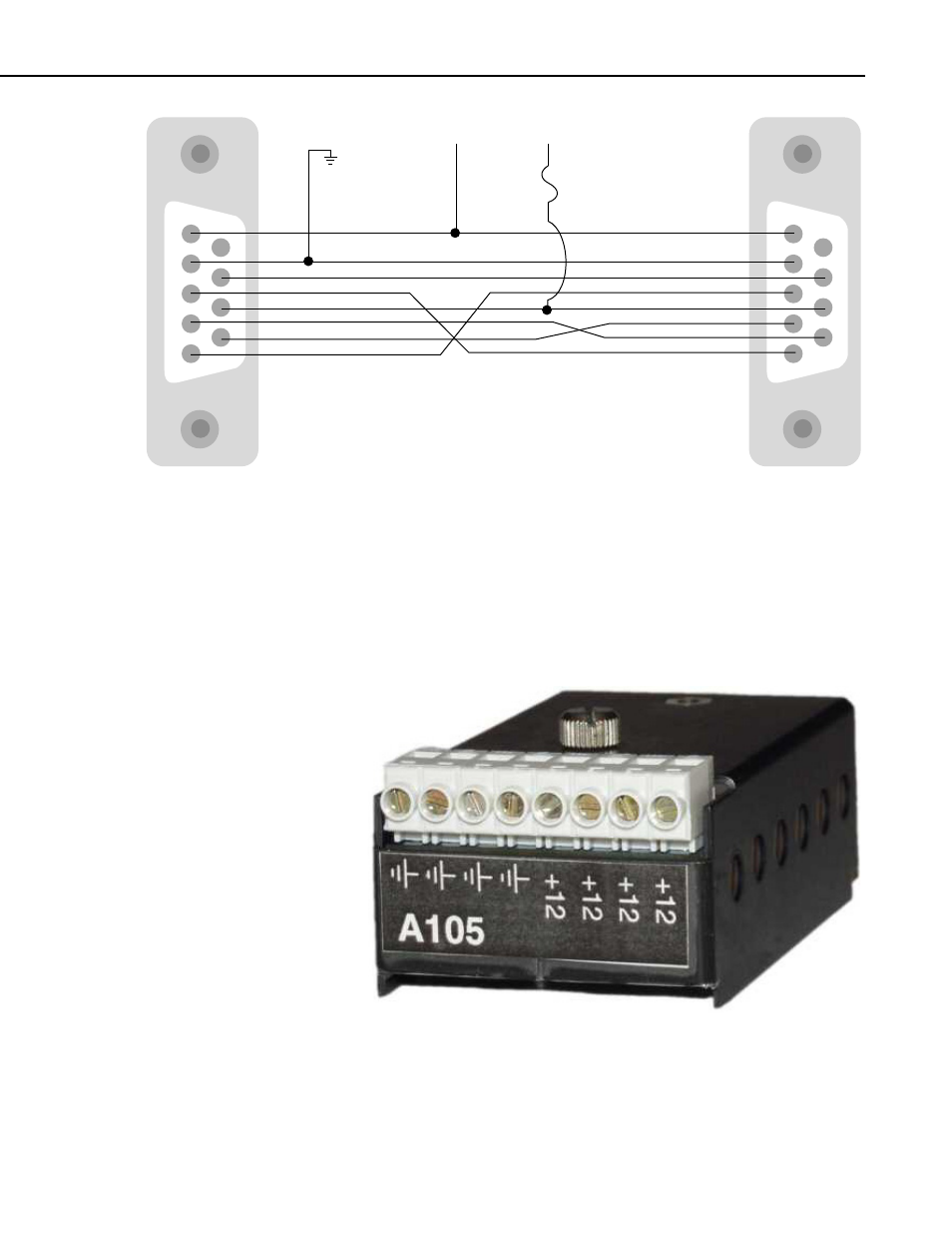

FIGURE 3. Null Modem Connections
5. A105 12V Terminal Expansion Adapter
The A105 adapter adds four 12-V terminals and four ground terminals to a
CH100 or PS100 (see Figure 4). The extra terminals make it easier to wire
multiple continuously powered 12-Vdc devices to the power supply.
FIGURE 4. A105 Adapter
5
