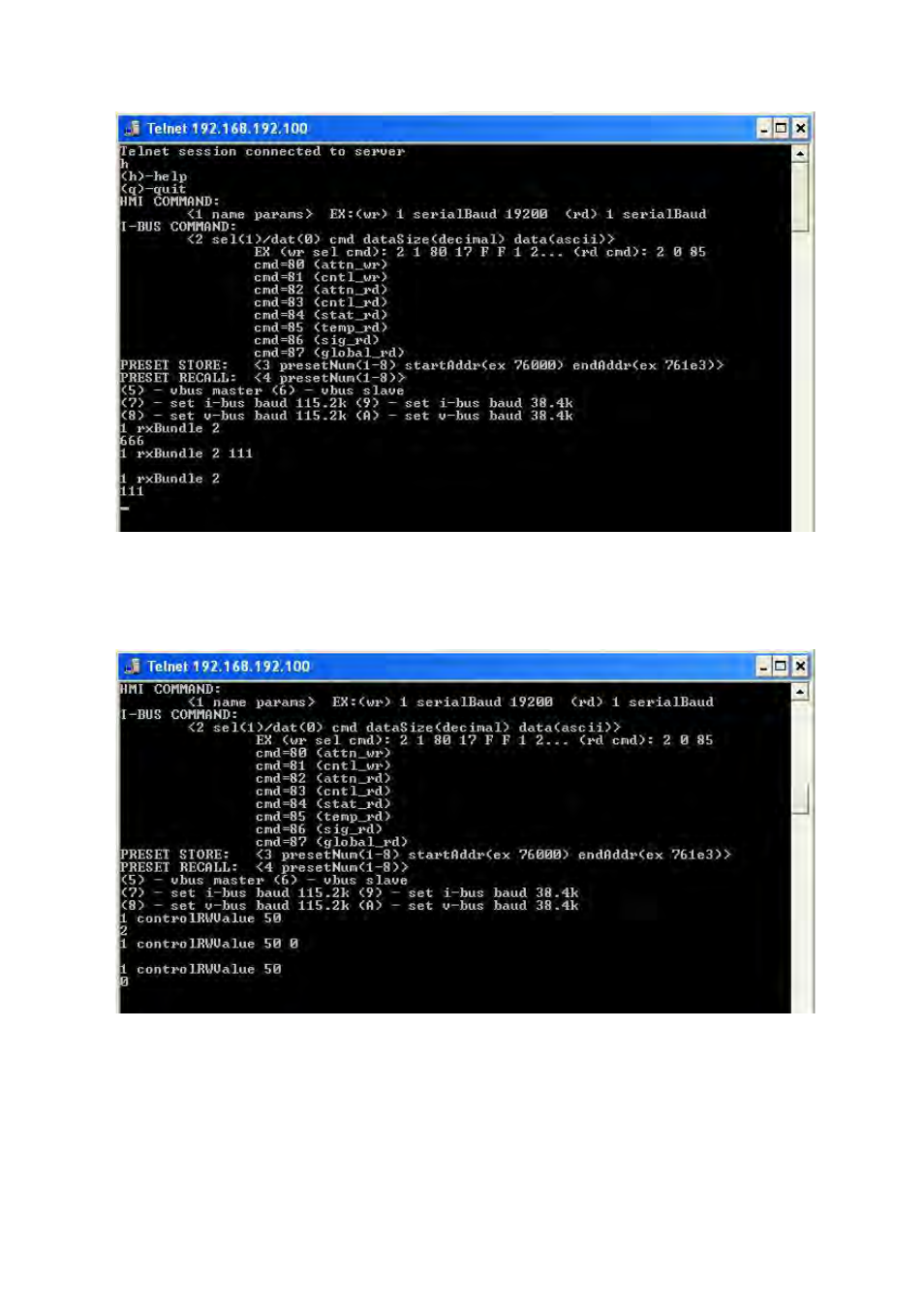

Figure 4-2: Setting CobraNet™ Parameters
Similarly, Figure 4-3 below shows the setting of DSP parameters.
Figure 4-3: Setting CobraNet™ DSP parameters
The instruction sequence is “1” for an HMI (CobraNet™) command, “controlRWValue” is
the DSP read/write command instruction “50” represents the DSP offset (see section 3.2.2
above) for router output channel 1 (see Figure 4-4 below). The Router output channel 1
(Offset 50) is initially read set at input channel 2 and is then set to input channel 0 (ie mute).
