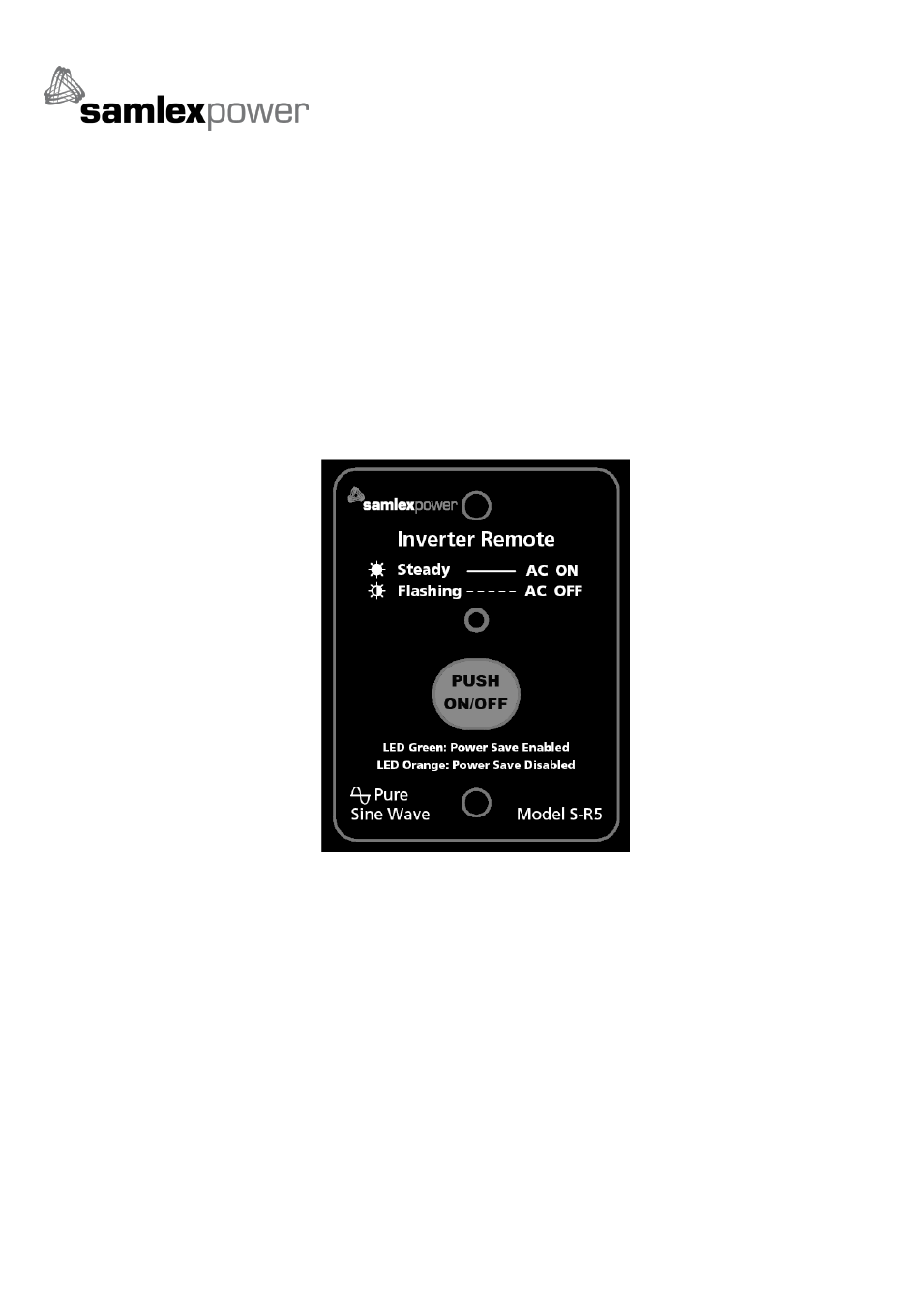

Samlex America S-R5 User Manual
S-r5 inverter remote control user manual
www.samlexamerica.com
S-R5 Inverter Remote Control User Manual
1. Features
•
Remote ON/OFF switching for the inverter
•
Power Saving Mode Setup & display
2. Specification
•
Input Voltage : 10.5 – 30 VDC
•
Operating Temperature Range : 0 – 40
℃
•
Storage Temperature Range : - 30
℃ - 70℃
•
Stand-By Current Draw : < 40mA
•
Applicable Models : SA-1500 Series
3. Introduction
•
System Configuration
Plug the 9-pin D-SUB connector of the Inverter Remote Control into the RS-232 port of the Inverter.
Check the setting of DIP-SW S5 & S6, The communication BAUD RATE should be set to 4800bps (S5 & S6 OFF).
•
Initialization
Turn on the Inverter with the help of the Power on/off switch on the front panel of the inverter. There will be two short
beep sounds coming from the Inverter. All LEDs will be ON, and one second later, there will be a short beep sound. The
amber, green, and red LEDs of the Inverter Remote Control will be ON for 0.5 second then OFF sequentially. The Inverter
is then in OFF mode. The amber LED will be flashing every 2~3 seconds. (Power Save disabled).
Document Outline
- Set SLIDE SW “ON” (Keypads will not work if SLIDE SW is set “OFF”)
- Pressing the button (and releasing in one second) changes (toggles) the output ON/OFF mode and the display of LED will be changed accordingly.
- Operation of Power Saving Mode
- Press and hold the button for 2 seconds, then the color of LED will be changed. Keep pressing the button and the color will be toggled between amber and green light every 2~3 seconds. The color of LED will determine the mode of operation. Green color ...
- Regardless of power saving mode, when the power OFF command is set, the power will be turned OFF and the power saving mode will be set to OFF automatically (amber LED will flash for 2~3 seconds).
- When the power is ON, the power saving mode will restore the previous setting.
