5
176
87.6
10
22.2
22.2
43.2
INPUT
-
OUTPUT
-
OUTPUT
+
INPUT
+

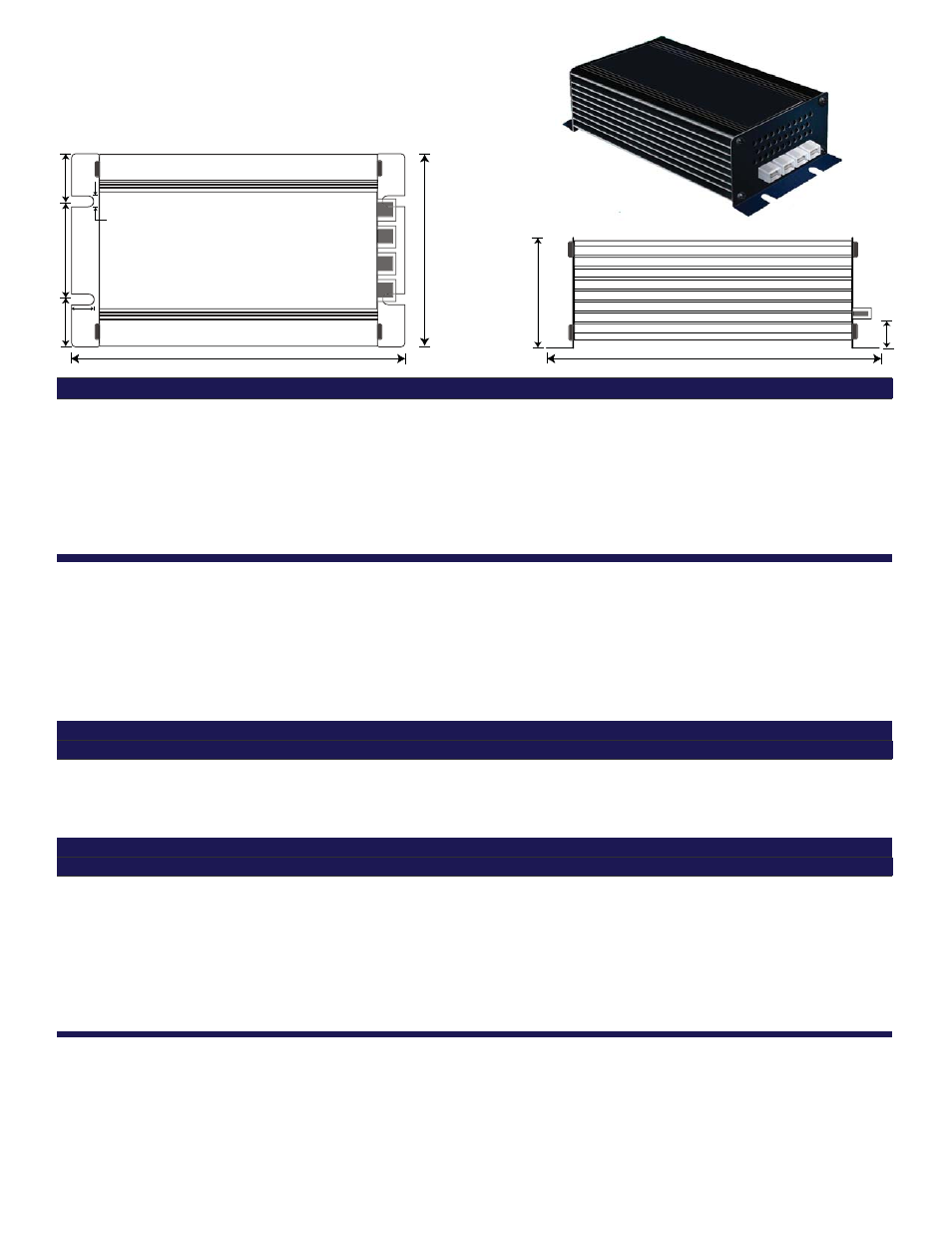

TOP VIEW
176
SIDE VIEW
50
12
Model Name Input Voltage Range (VDC) Output Voltage (VDC) Output Current (A) *
IDC-200A-12 9 - 18 12.5 16
IDC-200B-12 20 - 35 12.5 16
IDC-200C-12 30 - 60 12.5 16
IDC-200D-12 60 - 120 12.5 16
IDC-200A-24 9 - 18 24.5 8
IDC-200B-24 20 - 35 24.5 8
IDC-200C-24 30 - 60 24.5 8
IDC-200D-24 60 - 120 24.5 8
Model Name Wire Size (up to 6 ft)
IDC-200A-12 / IDC-200A-24 32V 30A AWG # 6
IDC-200B-12 / IDC-200B-24 32V 15A AWG # 12
IDC-200C-12 / IDC-200C-24 80V 10A AWG # 14
IDC-200D-12 / IDC-200D-24 125V 5A AWG # 14
Model Name Wire Size (up to 10 ft)
IDC-200A-12 32V 20A AWG # 6
IDC-200B-12 32V 20A AWG # 6
IDC-200C-12 32V 20A AWG # 6
IDC-200D-12 32V 20A AWG # 6
IDC-200A-24 32V 10A AWG # 12
IDC-200B-24 32V 10A AWG # 12
IDC-200C-24 32V 10A AWG # 12
IDC-200D-24 32V 10A AWG # 12
Safety & EMC
- Emission EN50081-1 / EN61000-6-3
- Immunity EN50082-1 / EN61000-6-1
- Automotive 95/54/EC (IDC-200A & IDC-200B Series Only)
Input/ Output Connections Quick Connect male 6.3mm / 1/4" flat blade
Dimensions (L x W x H) 176 x 88 x 50 mm / 6.9" x 3.5" x 1.9"
Weight 0.6 Kg / 1.4 lbs
*Note: Specifications are subject to change without notice
Fuse Specs
Fuse Specs
External Input Side Fuse & Wiring (Inline with "Input +" Terminal)
External Output Side Fuse & Wiring (Inline with "Output +" Terminal)
Samlex America Inc
110-17 Fawcett Road
Coquitlam BC Canada V3K6V2
1-800-561-5885 www.samlexamerica.com
IDC-200 SERIES SPECIFICATIONS
Input to output isolation
Output ripple & noise
Peak efficiency
Operating temperature
Humidity, non condensing
Protections
Yes. > 400 V RMS
< 50 mV RMS
85%
-20 o to +30 o C, (De-rate linearly to zero at 70 o C)
Max 95%
Overload / short circuit on the output side; Over voltage on the output side;
Over voltage / transients on the input side; Reverse polarity on the input side; Over heating
* The output current indicated is the maximum current at the maximum input voltage
