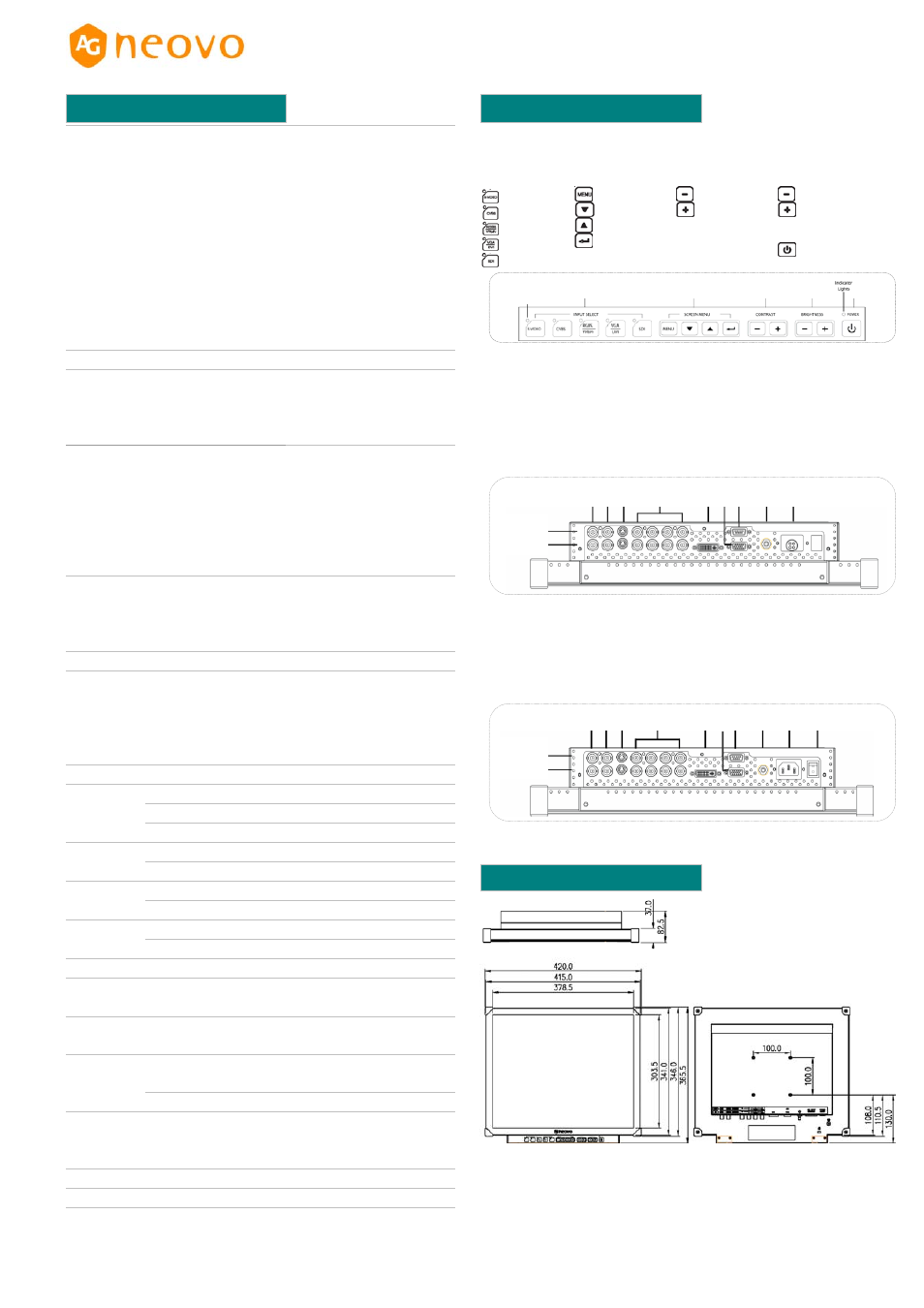

P/C:ER1910_ER1920 Version 01.2, 20080116
f SPECIFICATION
Display Panel Type TFT Active Matrix LCD
Panel Size 19" (483mm)
Resolution SXGA 1280 x 1024
Aspect Ratio 5:4
Pixel Pitch 0.294 x 0.294mm
Brightness 300cd/m 2 (Typical)
Contrast Ratio 450:1 (Typical)
Viewing Angle (H/V) 170 °/170°
Display Color 16.7M (8 bits)
Response Time 10 ms (GTG)
Frequency (H/V) H:14kHz-85kHz / V:49Hz-85Hz
Life Time 40,000hrs (Typical)
Display Functions Gamma, DICOM
Thickness 3.0mm (0.18”)
Reflection Rate <1%
Transmission Rate >96%
NeoV
Optical Glass
Hardness >6H (MOH’s Rating)
Analog 15-Pin D-Sub (female)
Digital 24-Pin DVI-D
S-Video 4-Pin mini din
CVBS BNC x 1
Component/RGBs BNC x 4
SD-SDI BNC x 1
Input
Control A 9-Pin D-Sub GPI (female)
Output S-Video 4-Pin mini din, 75 Ω termination
CVBS BNC x 1, 75 Ω termination
Component/RGBs BNC x 4, 75 Ω termination
SD-SDI BNC x 1, 75 Ω termination
Mounting VESA FPMPMI Yes (100mm)
Regulation
Approval Certifications &
Compliance UL/CUL(UL60601-1, CAN/CSA
C22.2 No.601.1), FCC,
CB(IEC60601-1), CE(IEC60601-1,
IEC60601-2, EN60601-1,
EN60601-1-2, IP22), WEEE, RoHS
Plug & Play VESA DDC 2B, DCC/CI 1.22
(a) External Power Input DC 24V, 3.0A
(b) Internal Power AC 100-240V, 1.2~0.6A, 50/60Hz
Power Supply
Power Consumption <65W (On) | <15W (Off)
Operating -10~50 °C (14~122°F) Temperature
Storage & Trans. -20~60 °C (-4~140°F)
Operating 10~90% RH Humidity
Storage & Trans. 5~95% RH
Operating Sea level to 12,000 ft Air Pressure
Storage & Trans. Sea level to 40,000 ft
Language OSD EN, FR, DE, IT, ES, CN
Dimensions Net (W x H x D) 420 x 365.5 x 82.5mm
(16.5” x 14.4” x 3.2”)
Packing (W x H x D) 550 x 550 x 265mm
(21.7” x 21.7” x 10.4”)
Net Weight
(a) External Power
7.54Kg (16.6lbs) Weight
(b) Internal Power 7.88Kg (17.4lbs)
Accessories Supplied D-Sub cable, DVI cable, warranty
card, user manual, AC power cord
1.8M; Power adaptor 3M for (a)
Optional Display pedestal for ER-19
All specifications are subject to change without prior notice
█ Connectivity
(a) External Power Supply Version
⑥SDI BNC input/output
⑦CVBS BNC input/output
⑧S-Video mini-din
input/output
⑥⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭
⑩DVI-D connector
⑪VGA D-Sub 15-Pin
⑫GPI D-Sub 9-Pin
⑬Equipotential Terminal
⑭24Vdc DC Input ⑨YP
b
P
r
/RGB (Component)
EXT SYNC (external sync)
G/Y/Y BNC input/output
B/P
b
/C
b
BNC input/output
R/P
r
/C
r
BNC input/output
█ Front Keypad
①INPUT SELECT
S-video
CVBS
RGB S /YPbPr
VGA/DVI
SDI
②SCREEN MENU
Menu
Down / Decrease
Up / Increase
Confirm a selection
③CONTRAST
Down / decrease
Up / Increase
④BRIGHTNESS
Down / decrease
Up / Increase
⑤POWER
On / Off
① ② ③ ④ ⑤
Out
In
Indicator
Lights
f DISPLAY DESCRIPTION
(b) Internal Power Supply Version
⑥SDI BNC input/output
⑦CVBS BNC input/output
⑧S-Video mini-din
input/output
⑨YP b P r /RGB (Component)
EXT SYNC (external sync)
G/Y/Y BNC input/output
B/P
b /C b BNC input/output
R/P
r
/C
r
BNC input/output
⑩DVI-D connector
⑪VGA D-Sub 15-Pin
⑫GPI D-Sub 9-Pin
⑬Equipotential Terminal
⑭AC Input ⑮Power Switch
⑥ ⑦⑧ ⑨ ⑩ ⑪⑫ ⑬ ⑭ ⑮
Out
In
f DIMENSION
