Introduction

The GTT offers a number of advanced graphical and touch features that transfer significant code loads to
the unit itself. These features require that specifically formatted files are saved onto the display SD card
for use at run time. To better understand how to create and use these unique file types, a number of
examples have been created to demonstrate the autoexec, 9-slice, animation, and region features.

Autoexec

This folder contains default start screen images for all products in the GTT line, plus an autoexec file to
load, display, and clear the start screen image from the bitmap buffer. The autoexec file currently loads
the GTT50A image, but can be changed for any unit in the series.

9Slice

This folder contains a 9-slice format jpeg image, 9-slice definition file, and an autoexec file that displays
the original image as well as 3:4 and 2:1 scale images.

Animation

This folder contains twenty eight jpeg format images used for a logo animation, an animation definition
file that displays each image for 2ms, as well as an autoexec file that loads, sets up, and starts the
animation.

Calculator

This folder contains a base or background image for a calculator screen. In addition, normal and pressed
images are present for all buttons, in addition to a touch region file that sets them all up, and an
autoexec file that loads all bitmaps required for the demo as well as the region file then sets the unit up
in region mode with motor feedback. Please note that this example is not functional, but rather
demonstrates the capability to offload graphical instructions to the display via region and script files.

Images

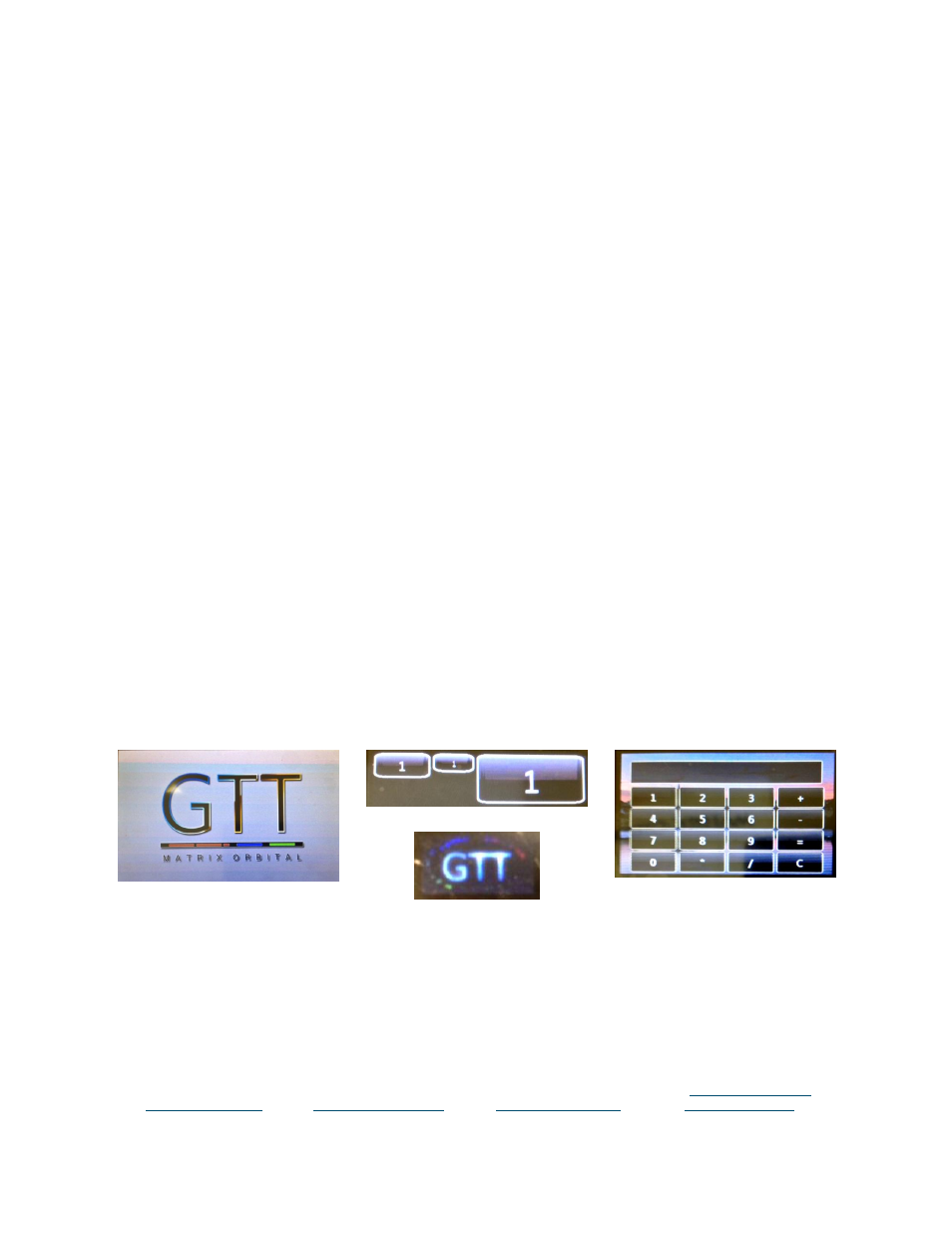

Figure 1: Autoexec Logo on Screen

Figure 2: 9-Slice Example on Screen

Figure 3: Calculator Example on Screen

Figure 4: Animation Example on Screen
