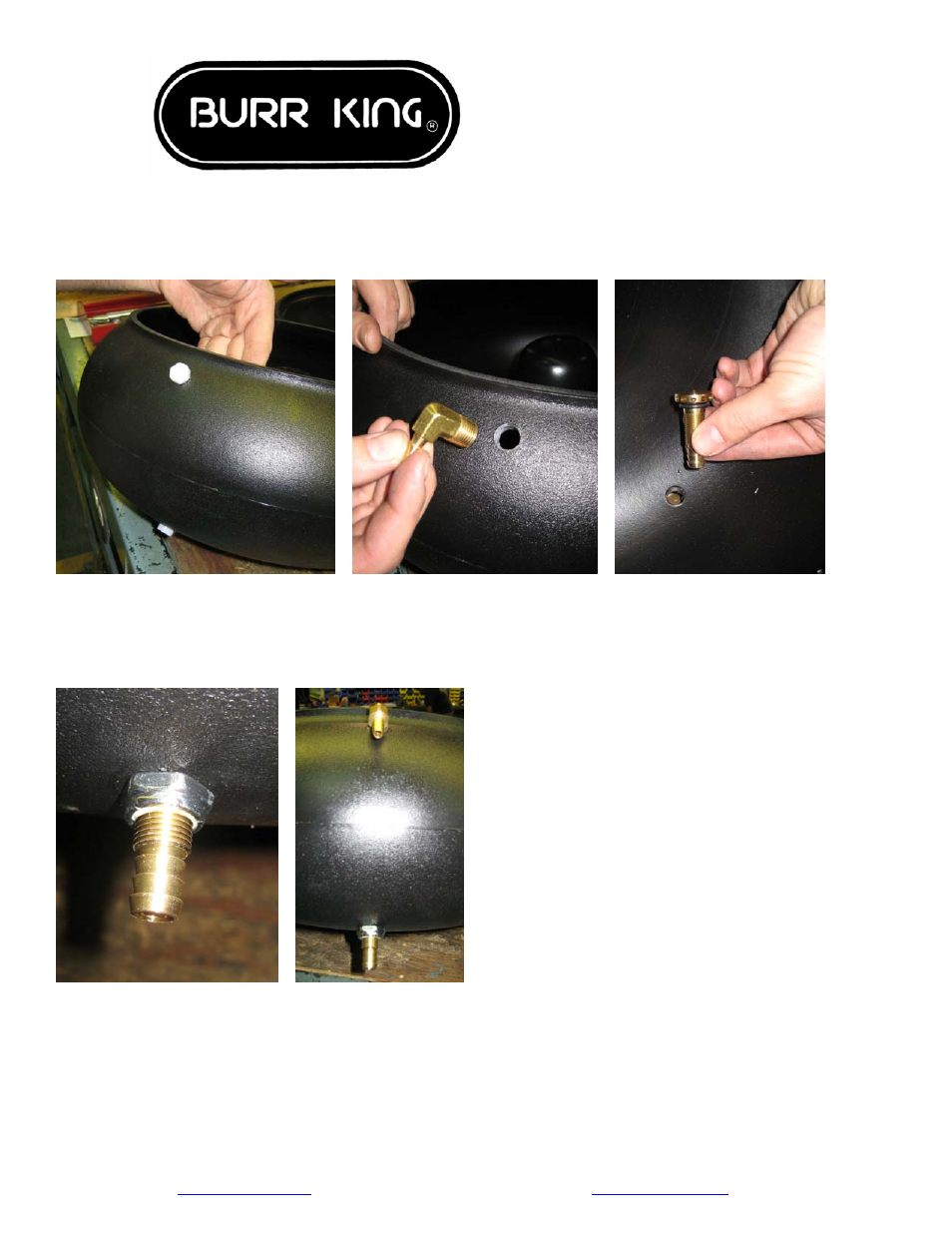

FilterPak 4001 – Installing Fittings on a 150/200 Vibratory Bowl
Remove supplied plugs with a 9/16”
wrench.
Install 90° inlet fitting to upper hole.
Install drain plug thru the bottom
of the bowl making sure that the
rubber o-ring is properly seated to
the bowl.
Using supplied nylon insert nut
tighten against the bowl with a
9/16” wrench Congratulations – You are
now ready to hook up the
supply and drain lines from
your FilterPak to your
bowl.
