ASUS P4SDX motherboard user guide 1-11

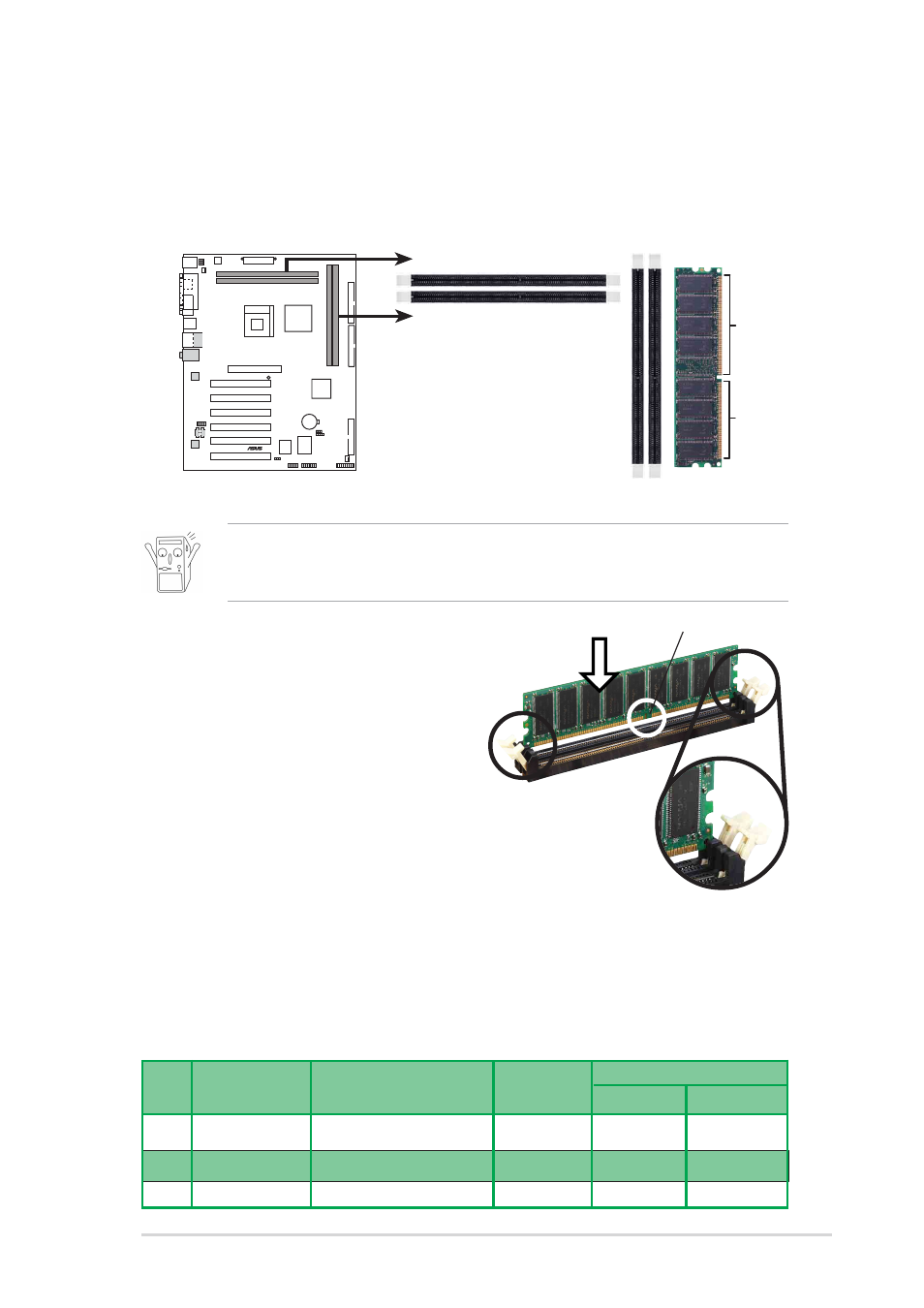

The motherboard has four (4) Double Data Rate (DDR) DIMM sockets sockets that
supports up to 4GB non-ECC PC2700/2100/1600 DDR.
Make sure to unplug the power supply before adding or removing DIMMs or
other system components. Failure to do so may cause severe damage to the
motherboard and other system components.
P4SDX
®
P4SDX 184-Pin DDR DIMM Sockets
80 Pins
104 Pins
(CHANNEL1)
(CHANNEL0)
1.9.1 Overview
1.9 System memory
Follow these steps to install a DIMM.
1. Unlock a DIMM socket by pressing the
retaining clips outward.
2. Align a DIMM on the socket such that
the notch on the DIMM matches the
break on the socket.
3. Firmly insert the DIMM into the socket
until the retaining clips snap back in
place and the DIMM is properly seated.
Unlocked Retaining Clip
DDR DIMM notch
1.9.2 DIMM Qualified Vendor List
The following table lists the memory modules that have been tested and qualified
for use with this motherboard.
Qualified DDR 400 memory modules:
Max DIMMs support
Type Vendor Model Size Channel A Channel B
SS TwinMOS TMD7608F8E50B 256MB x 2 x 2
SS Apacer K4H560838D-TCC4 256MB x 2 x 2
DS Apacer K4H560838D-TCC4 512MB x 2 x 2
