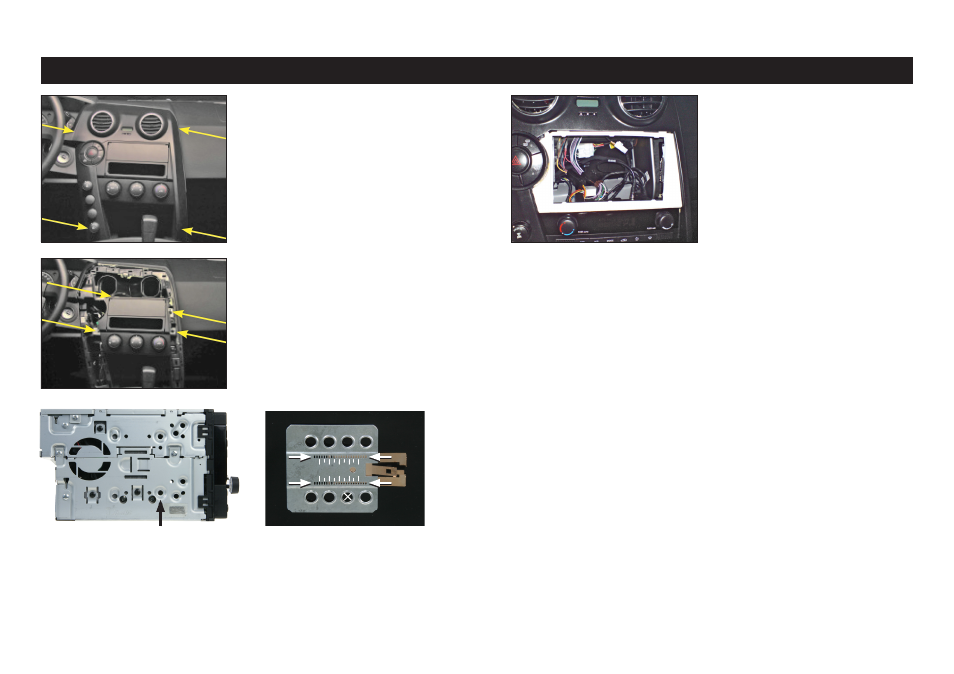

Mount the metal brackets with
the double DIN head unit The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
Installation Manual Double DIN Kit CAW 2275-04
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
1. Remove the panel under the
climate control panel.
2. Remove the original bracket, which
is fixed by four screws at the locati-
on of the arrows.
3. Place the new facia plate on the
dashboard and fix it with the
four screws.
Push the metal frame into the
facia plate.
Connect all required wires
and push the Pioneer Navigation
into the metal frame until it
snaps in.
Reinstall everything in reverse
order to finish installation.
