Mount the metal brackets with
the double DIN head unit The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)

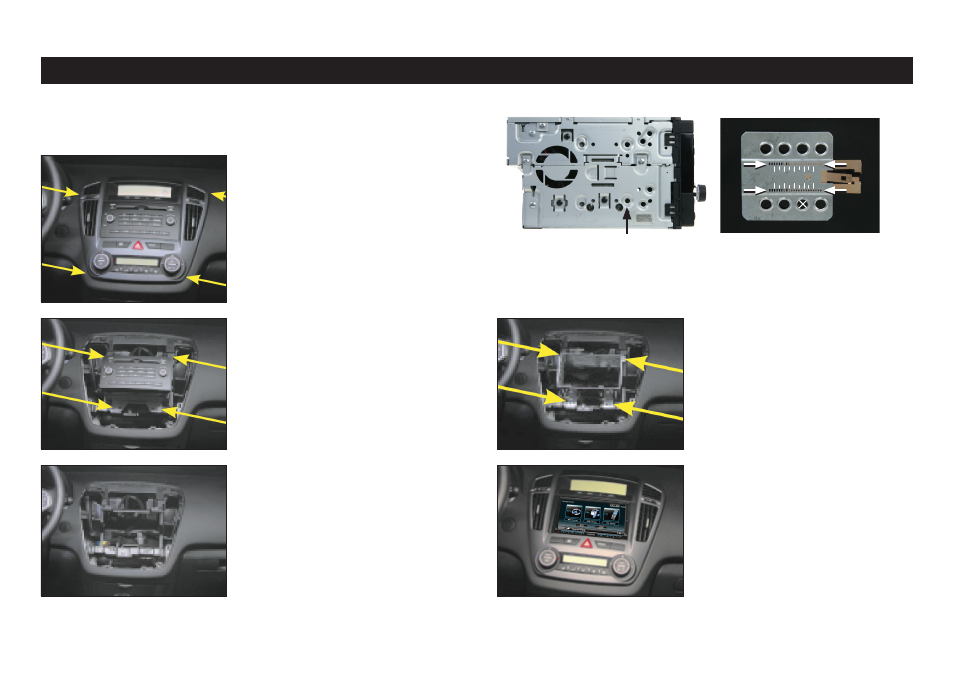

Installation Manual Double DIN Kit CAW 2278-18
3. Remove the OEM head unit
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
1. Remove the panel surrounding
the OEM head unit. (see arrows)
2. Remove the 4 screws (see arrows) 4. Place the Double DIN metal
frame on the dash board and
fix it with the 4 original screws.
5. Connect all required circuit
points to the Pioneer head unit
and push it into the metal fra-
me until it snaps in. Place the
facia plate.
Reinstall everything in reverse
order to finish installation.
