Kenwood CAW2190-28 User Manual
Mercedes e-class (w211)

2
3
1
4
© 12/2008 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
Compatible with these Kenwood double DIN devices
Kenwood Navigation
Installation Manual
Double DIN Kit
Standard:
CAW 2190-28
Rubber-Touch: CAW 2190-28-RT
• Mercedes E-Class (W211)

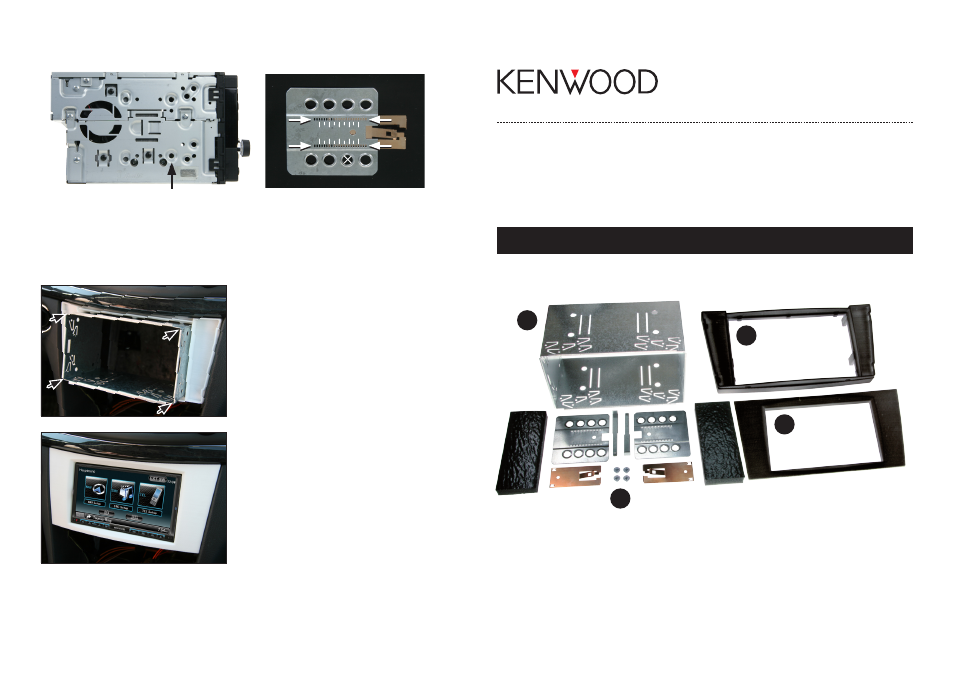

Double DIN Set contents
• (1) Metal Frame
• (2) Installation Kit
• (3) Mounting Bracket
• (4) Facia Plate
7. Push the metal frame into the
mounting bracket
Connect all required circuit points
Push the Kenwood Navigation
into the metal frame until
it snaps in.
8. Push the facia plate onto the
mounting bracket
Reinstall everything in reverse
order to finish installation.
Mount the metal brackets with
the double DIN head unit
The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
