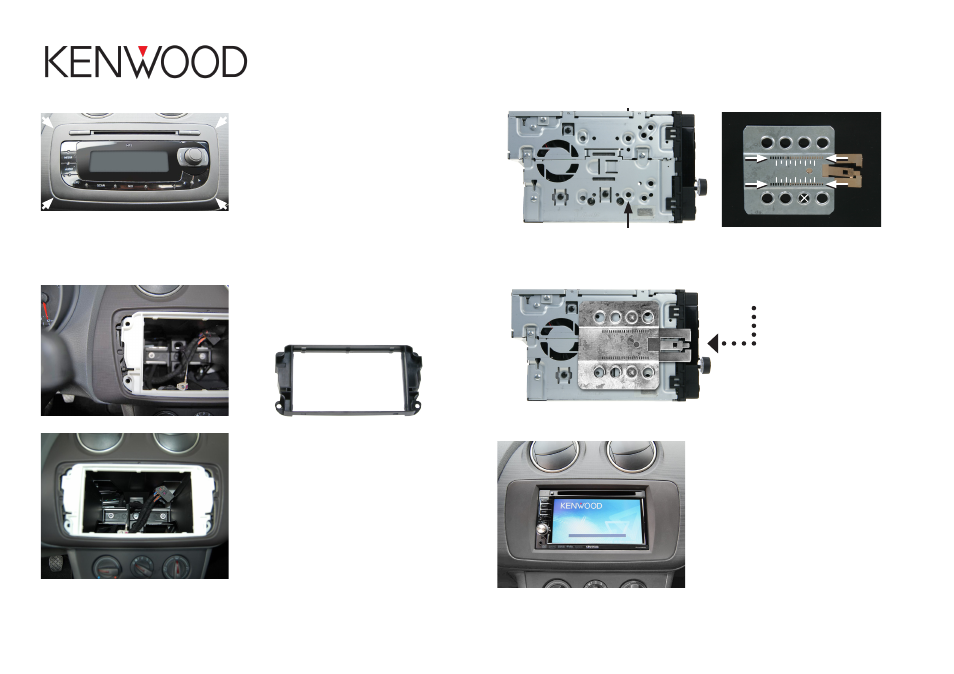

Mount the metal brackets with
the double DIN head unit The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
1. Remove the original trim frame
(surrounding the radio)
1a. unscrew the 4 screws fixing the
OEM-Radio. (keep the screws,
they will be needed for further
installation) Disconnect all wires
connected with the OEM-Radio
and finally remove it.
2. Place the new mounting frame
(see photo) into the dashboard.
3. Fix the new mounting frame with
the 4 original screws.
3.a Place the metal frame inside the
mounting frame
Special tools like radio release keys
may be required.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
4. Connect all required circuit
points and push the double DIN
head unit until it snaps in.
5. Place the facia plate to finish
installation.
