Mount the metal brackets with
the double DIN head unit The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
(Beispielabbildung) (Beispielabbildung)

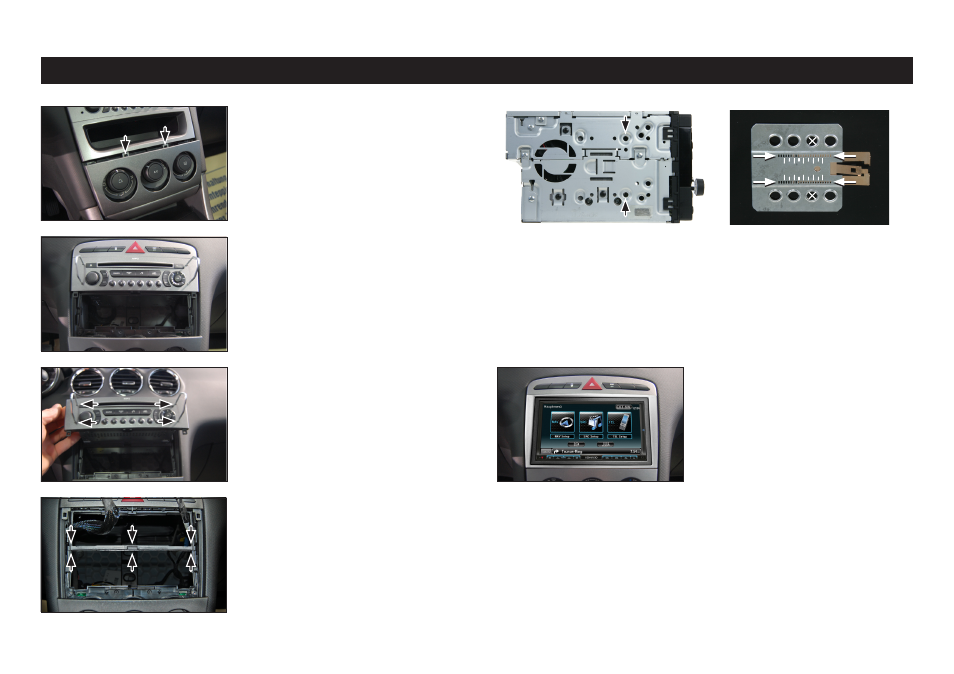

Installation Manual Double DIN Kit CAW 2040-01 / CAW 2040-01-RT
1. Dismount panel cover of the air
condition control unit.
5. Place facia plate on the dash-
board.
Push the Metal Frame into the
facia plate
Connect all required circuit points
and push the double DIN head
unit in the metal frame until it
snaps in.
Place the trim frame.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
2. Remove pocket below
OEM head unit.
(We recommend to
use a plastic wedge).
3. Insert two radio release keys in
the openings of the OEM head
unit.
Remove the OEM head unit.
4. Remove middle bar to clear space
for the Double DIN head unit.
