2-DIN 12.CAW1300-06

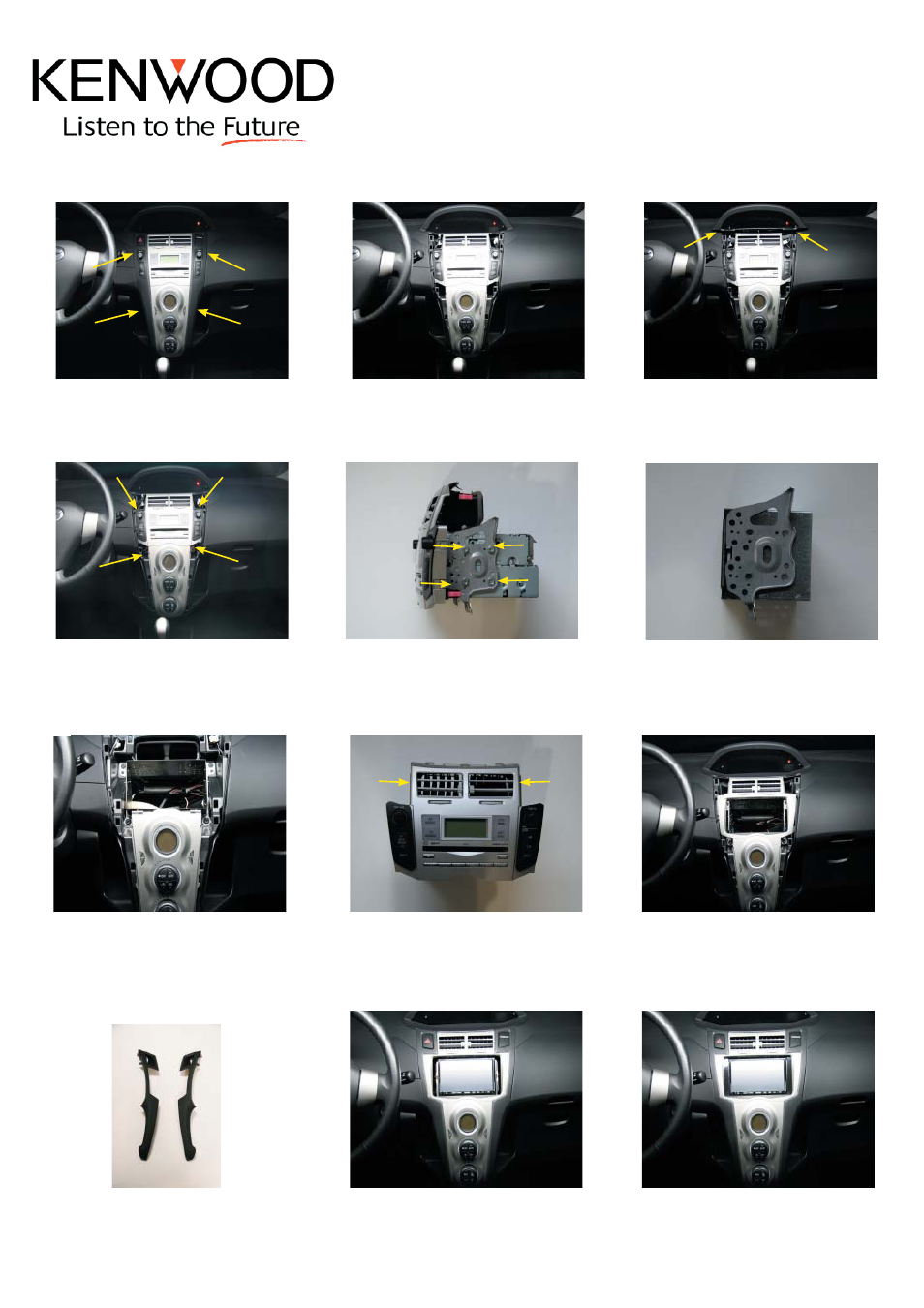

Remove the surrounding around the
original radio at the location of the
arrows
1 2 3
Remove the OEM radio at the locati-
on of the arrows.The radio is tighten
by four screws.
4 5 6
Remove the original OEM metal brackets
from the radio.This is tighten by eight
screws.
Place the OEM radio brackets on the meta
bracket of the new headunit.
This will fi t in the holes of the metal
bracket(if needed mount it with screws).
Place the metal bracket into the dash-
board.
7 8 9
Remove the air shafts from the original
radio and replace them in the OEM
replacement panel. Place the OEM replacement panel.
You need the OEM side dashboard
panels for placing the new headunit.
10
Lift up the panel above the air shafts
at the location of the arrows by using
a plastic wedge.
7R\RWD
Place the new headunit and the side
panels
11 12
Place the radio trim.
Place the metal bracket into the
dashboard between the metal OEM
brackets.
Remove the dashboardpanels around
the radio at the location of the ar-
rows.
