3. Remove the two Torx (TX20)
screws underneath the air condition
control unit.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

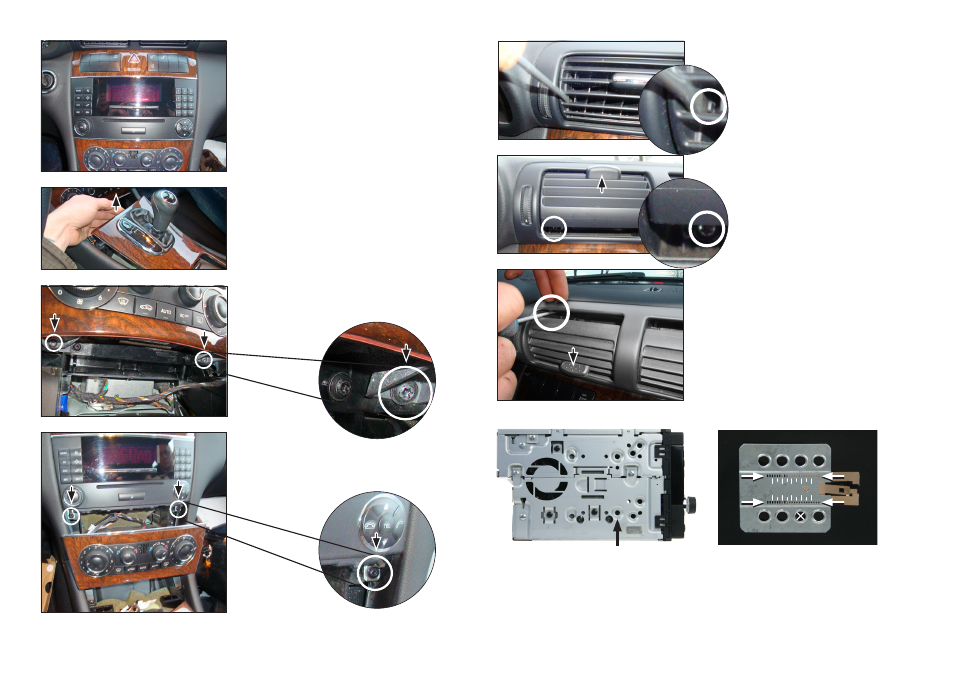

1. Mercedes C-Class with
OEM head unit.
2. Remove panel by lifting it up.
Remove ash tray.
4. Pull out the air
condition control unit. Remove the
two Torx (TX20) screws under the
OEM-Radio.
5. Unclip the air vent unit carefully
on both sides with a screw driver.
6. Pull up the air vent and remove
the 2 screws (left and right) which
become visible.
7. Pull down the air vent and unclip
the whole unit at both sides care-
fully with a screw driver.
Remove the air vent unit.
Mount the metal brackets with
the double DIN head unit The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
