Installation Manual Double DIN Kit CAW 2320-19 / CAW 2320-19-RT
4. Fix the mounting frame with
two screws (see arrows)
Push the Metal Frame into the
mounting frame
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.

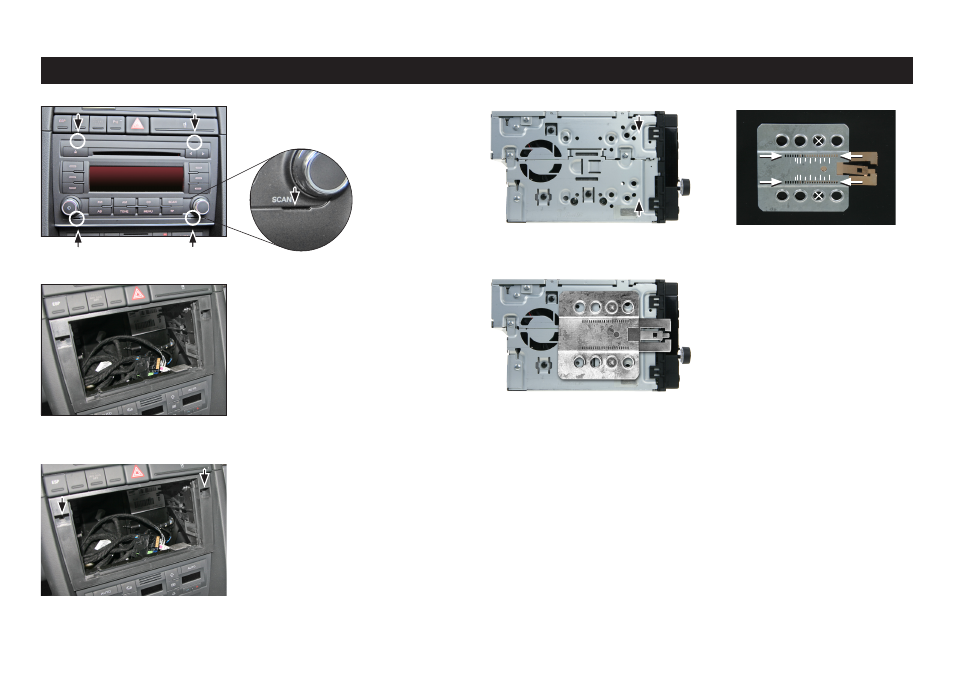

1. Put four radio release keys in the
appropiate slots of the OEM radio
2. Remove the OEM head unit by
pulling it towards your direction.
3. Place the mounting frame on
the dashboard.
5. Push the Metal Frame into the
facia plate, place both into the
dashboard.
Connect all required circuit
points and push the double
DIN head unit in the metal
frame until it snaps in. Fix the
facia plate with the original
screws, place the trim frame.
Reinstall everything in reverse
order to finish installation.
Mount the metal brackets with
the double DIN head unit The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
(sample photo) (sample photo)
