Installation Manual
Double DIN Kit
Standard:
CAW 2190-02
Rubber-Touch: CAW 2190-02-RT
• Mercedes C-Class (W203) 2004
Double DIN Set contents
• (1) Metal Frame
• (2) Installation Kit • (3) Facia Plate
• (4) Trim Frame

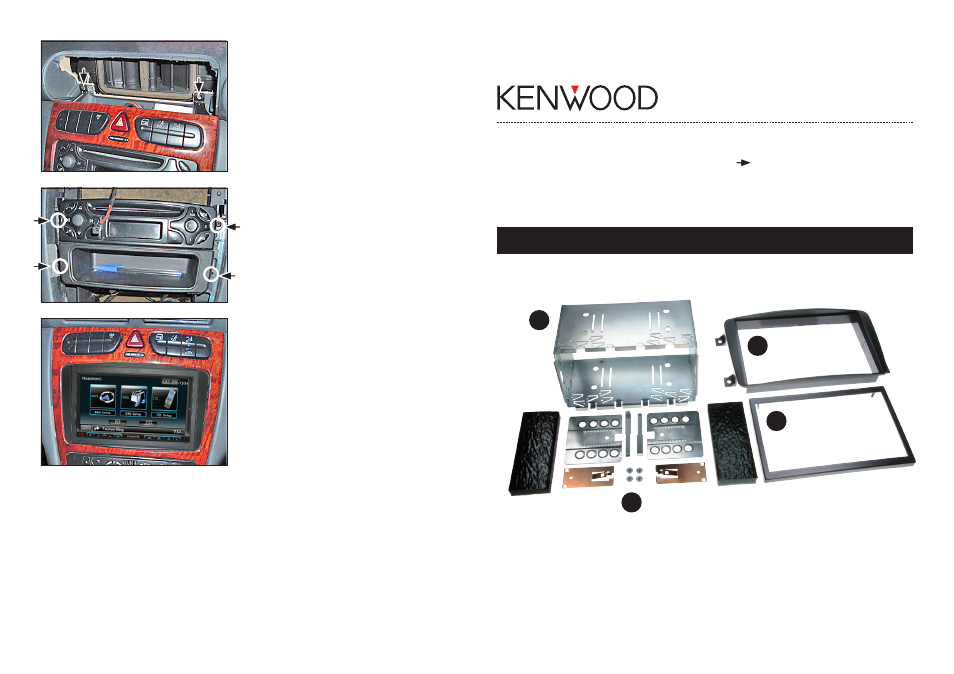

8. Remove the centre panel
9. Remove the four Torx
screws (2 on each side) holding
the OEM head unit.
Remove the OEM head unit.
10. Place the facia plate and fix it with
the 4 original screws.
Push the metal frame into the
facia plate.
Connect all required circuit points
and push the double DIN head
unit until it snaps in.
Place the trim frame.
Reinstall everything in reverse
order to finish installation.
