aircon control unit

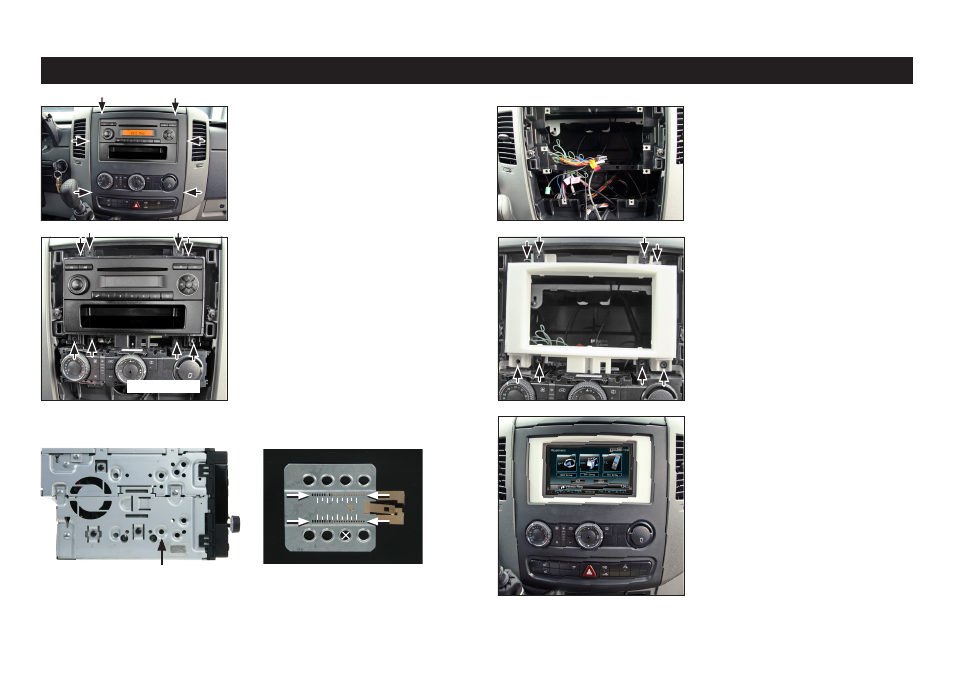

Installation Manual Double DIN Kit CAW 2190-27
1. Remove OEM front panel
(see arrows)
5. Push the Metal Frame into the
facia plate
Connect all required circuit points
and push the double DIN head
unit in the metal frame until it
snaps in.
Place the trim frame
Place the OEM front panel
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
2. Remove the OEM radio
and the aircon control unit.
They are fixed with 8 screws
(see arrows)
4. Place the new Double-DIN facia
plate on the dashboard
Fix it with the 8 original screws
(see step 2)
3. Dashboard with removed OEM
radio and aircon control unit.
Preparation of the Kenwood Navigation
Mount the metal brackets with
the double DIN head unit
The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
