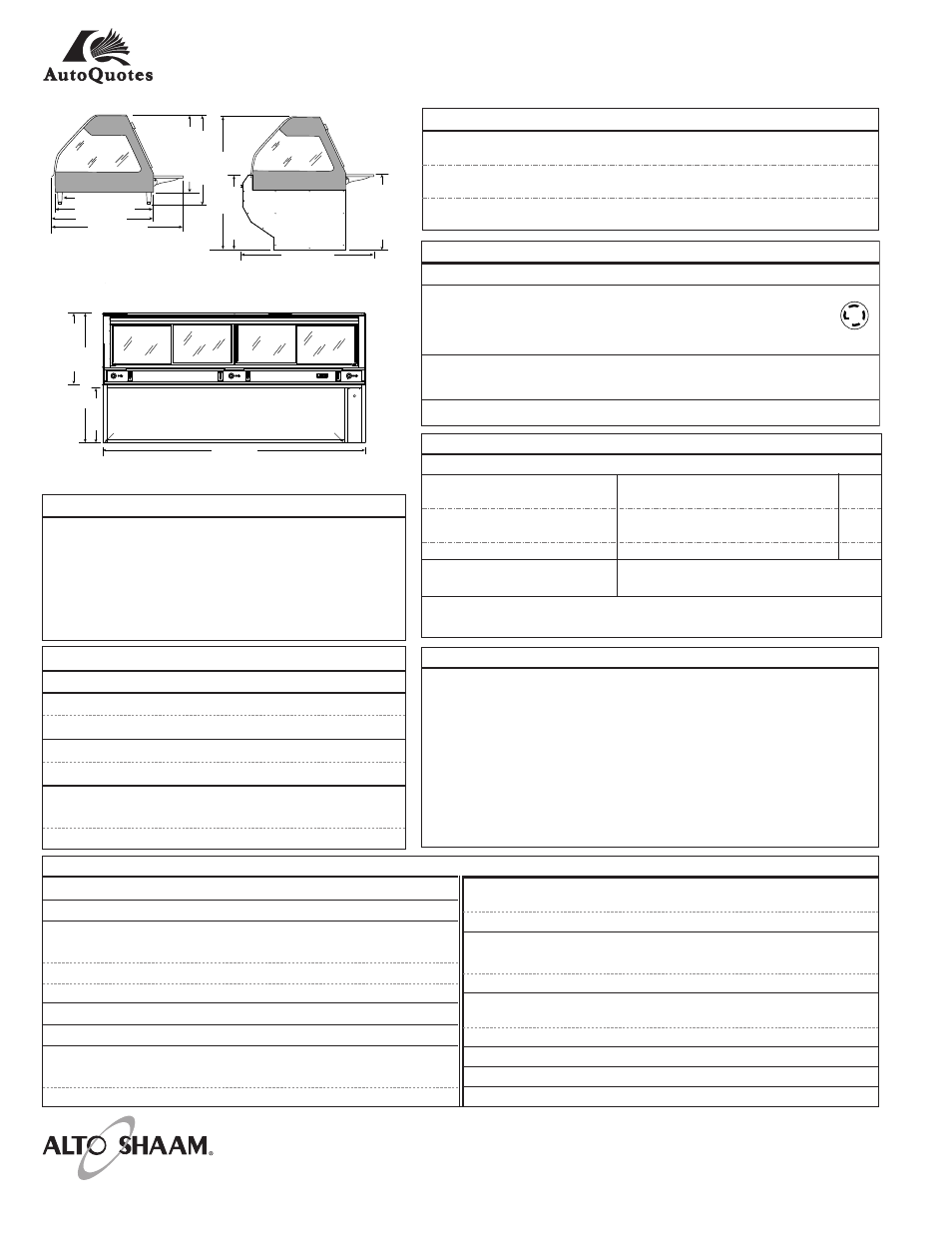

Alto-Shaam ED2-96 - Manual (Page 2)

ED2-96
SERIES
ED2SYS-96
SERIES
HEATED DISPLAY SYSTEMS
D I M E N S I O N S
(
H X W X D
)
EXTERIOR , COUNTER - TOP MODEL WITH LEGS :
29-3/4" x 96" x 44-5/16" (756mm x 2438mm x 1125mm)
EXTERIOR , WITH BASE :
47-11/16" x 96" x 47-1/8" (1212mm x 2438mm x 1196mm)
WELL DIMENSIONS ( W X L X D ):
27-3/16" x 93-5/16" x 4-1/2" (690mm x 2370mm x 114mm)
I N S TA L L AT I O N R E Q U I R E M E N T S
Display case must be installed level. The display case must
not be installed in any area where it may be affected by steam,
grease, dripping water, high temperatures, or any other
severely adverse conditions.
Do not install a heated display case near a cold air source
such as a freezer, air conditioning vents, or in any area where
outside air fluctuation can affect performance.
W164 N9221 Water Street • P.O. Box 450 • Menomonee Falls, Wisconsin 53052-0450 • U.S.A.
PHONE
: 262.251.3800 800.558.8744
U
.
S
.
A
./
CANADA FAX
: 262.251.7067 800.329.8744
U
.
S
.
A
.
ONLY
www.alto-shaam.com
W E I G H T
MODEL NET SHIP
ED2-96 526 lb (239 kg) 585 lb (265 kg)
ED2SYS-96 716 lb (325 kg) 796 lb (361 kg)
ED2-96/PL; /PR 535 lb (243 kg) 595 lb (270 (kg)
ED2SYS-96/PL; /PR 734 lb (333 kg) 816 lb (370 kg)
CRATED DIMENSIONS ( EST .): H X W X D
ED2-96: 45" x 100" x 55" (1143mm x 2540mm x 1397mm)
ED2SYS-96: 65" x 100" x 55" (1651mm x 2540mm x 1397mm)
S P E C I F I C AT I O N S
●
Fourteen (14) overhead lights in three (3) light zones.
●
Three (3) base heat zones with three (3) adjustable thermostats with
a range of 1 through 10, and three (3) heat-on indicator lights.
●
Four (4) tinted, reflective, tempered glass sliding doors on
operator side.
●
Two (2) 10" x 36" (254mm x 914mm) operator-side work shelves.
●
Self-serve models ED2-96/PL and ED2-96/PR have a self-serve
pan insert 21-5/8" x 26-7/16" x 2" (549mm x 672mm x 51mm)
and includes one (1) Wire Pan Grid.
#68B - 03/08 D U E TO O N G O I N G P R O D U C T D E V E L O P M E N T , S P E C I F I C AT I O N S A R E S U B J E C T TO C H A N G E W I T H O U T N O T I C E . P R I N T E D I N U . S . A .
