2-DIN CAW
-1179-06

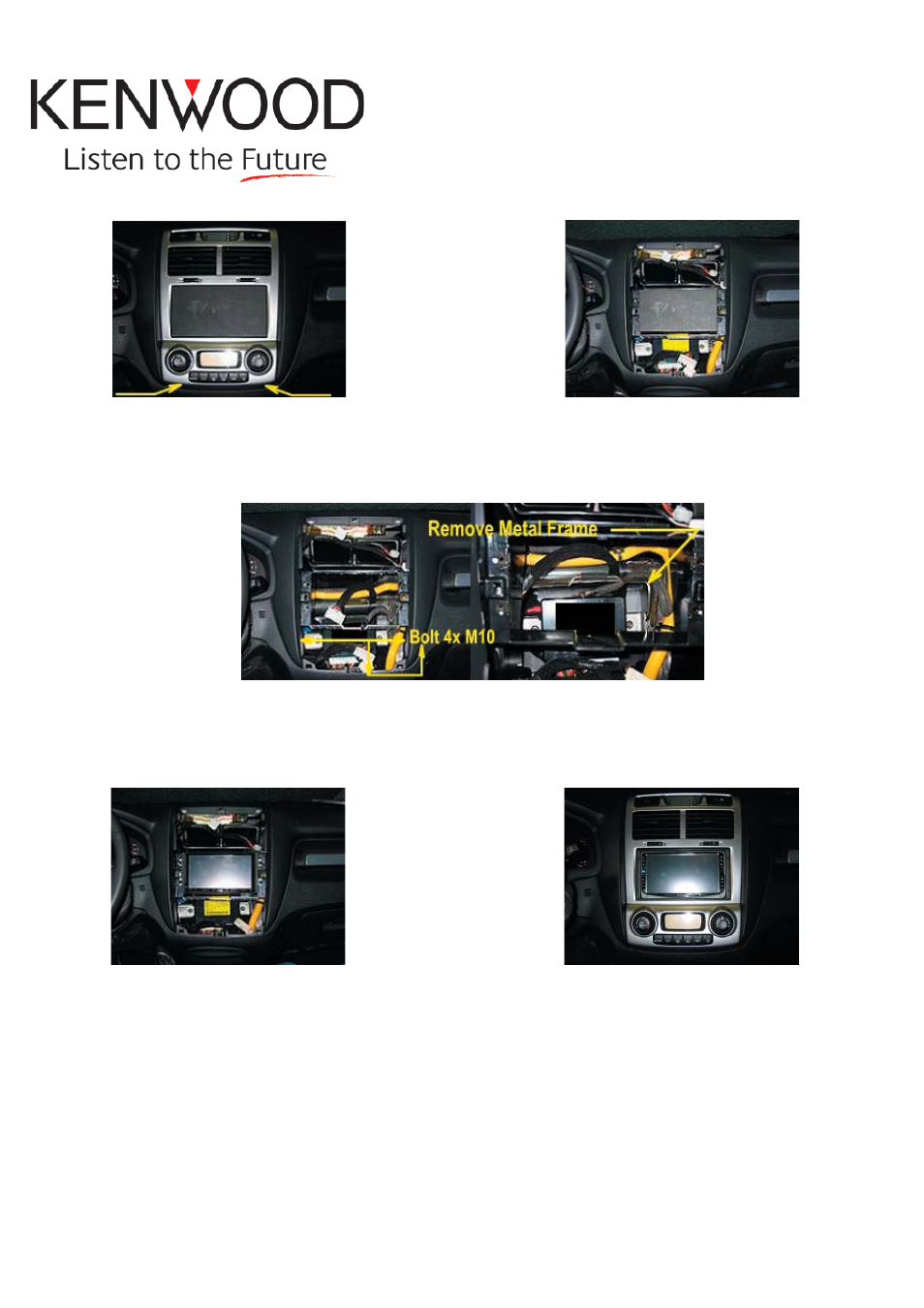

Car is equipped with original head unit or
plastic cover.
Remove 4x M10 bolt and remove metal
frame.
Use a plastic wedge to remove the panel
and remove 4 screws.
1 2
3
Connect all of the needed wiring harnesses and check all the connections carefully.
4
Place the headunit including mounting
plates and supporting bracket.
5
Place panels back in reverse order.
6
