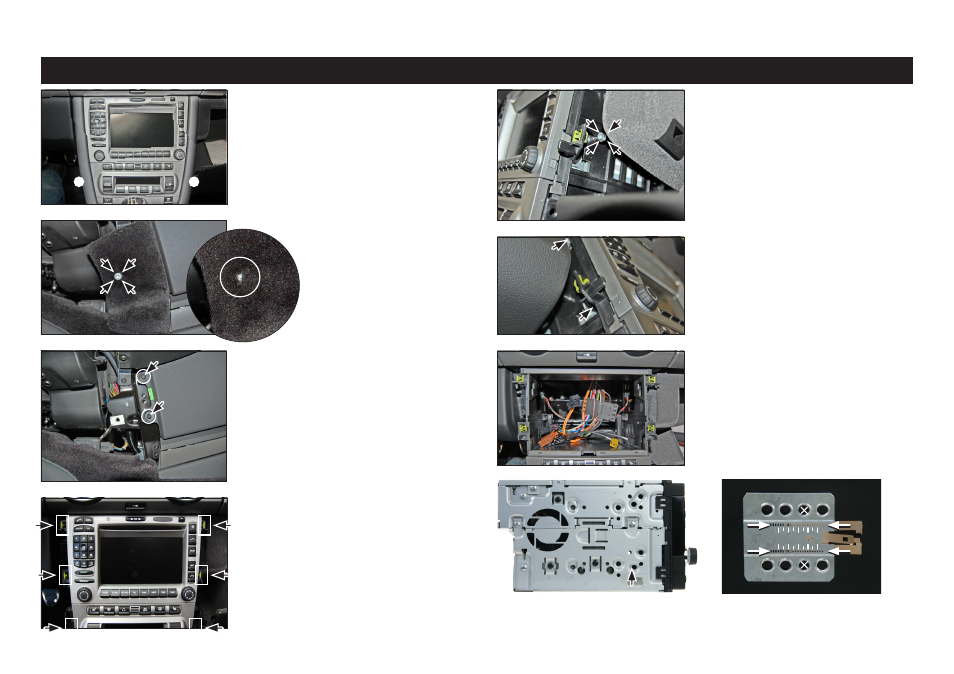

Mount the metal brackets with
the double DIN head unit
The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
(sample) (sample)
Installation Manual CAW 2323-03-1 / CAW 2323-03-2
2. Remove 4 Torx (TX15) screws
(2 on each side)
3. Remove the side panels (fixed with
clips) by pulling them towards your
direction.
1. Remove 2 Torx (TX25) screws
(1 on each side) left and right,
located at the front end of the
centre tunnel.
Note:
The screws are hidden
in the carpet. (see photo)
4. Loose one screw (head 7 mm),
located at the right side of the
head unit.
Note: Just loose the screw. Don‘t remove!
There is no screw at the left side.
5. Release the 4 retaining brackets of
the OEM head unit (2 at each side)
by turning them for 90° (see arrows)
6. Remove the OEM head unit.
