Kenwood CAW2114-15-S-RT - Manual (Page 2)

Ford Galaxy / S-MAX
Ford Focus Ford Fiesta

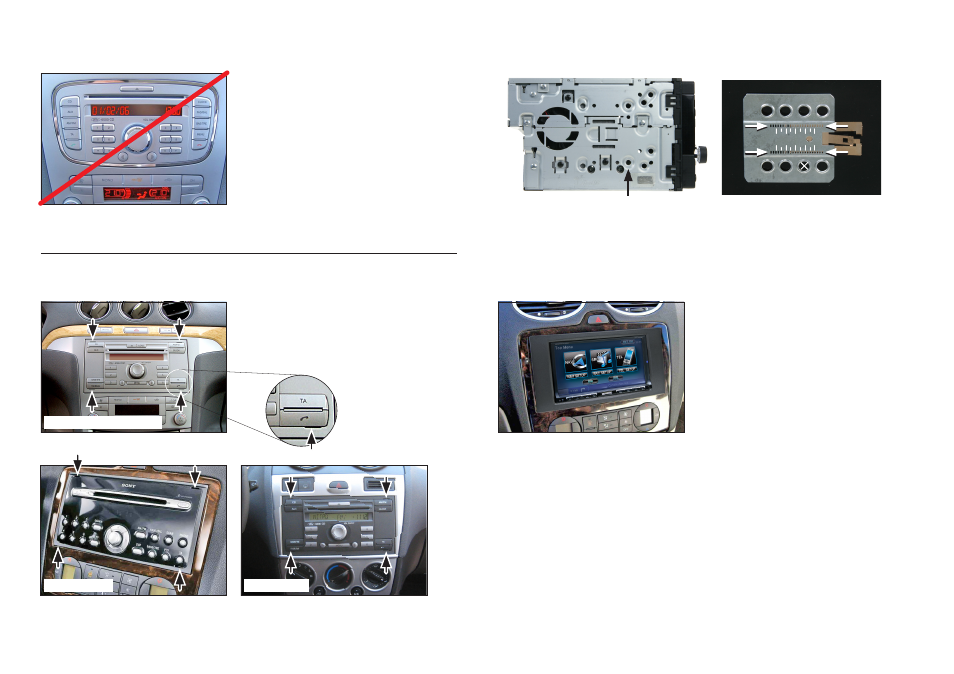

Mount the metal brackets with
the double DIN head unit The position of the copper
coloured holder can be adjusted
to your needs for perfect fit.
(see sample)
1. Insert Ford radio release keys in
the holes of the OEM head unit.
Remove OEM head unit by pulling
it towards your direction.
All installation work must be performed by a qualified professional installer only.
The manufacturer / dealer is not liable for any kind of incidential or indirect damages.
• 6000 CD (oval shape)
• Audio SONY 6CD (oval shape)
• Travel Pilot X (oval shape)
Please use our part-no.:
CAW 2114-19-B (black)
CAW 2114-19-S (silver)
instead
Not compatible for Ford with these OEM head units!
Ford with other audio systems
2. Place the facia plate
on the dashboard.
Push the metal frame into the
facia plate.
Connect all required circuit points
and push the double DIN head
unit until it snaps in.
Place the trim frame.
Reinstall everything in reverse
order to finish installation.
Oval shaped Ford OEM head unit
