Page 8

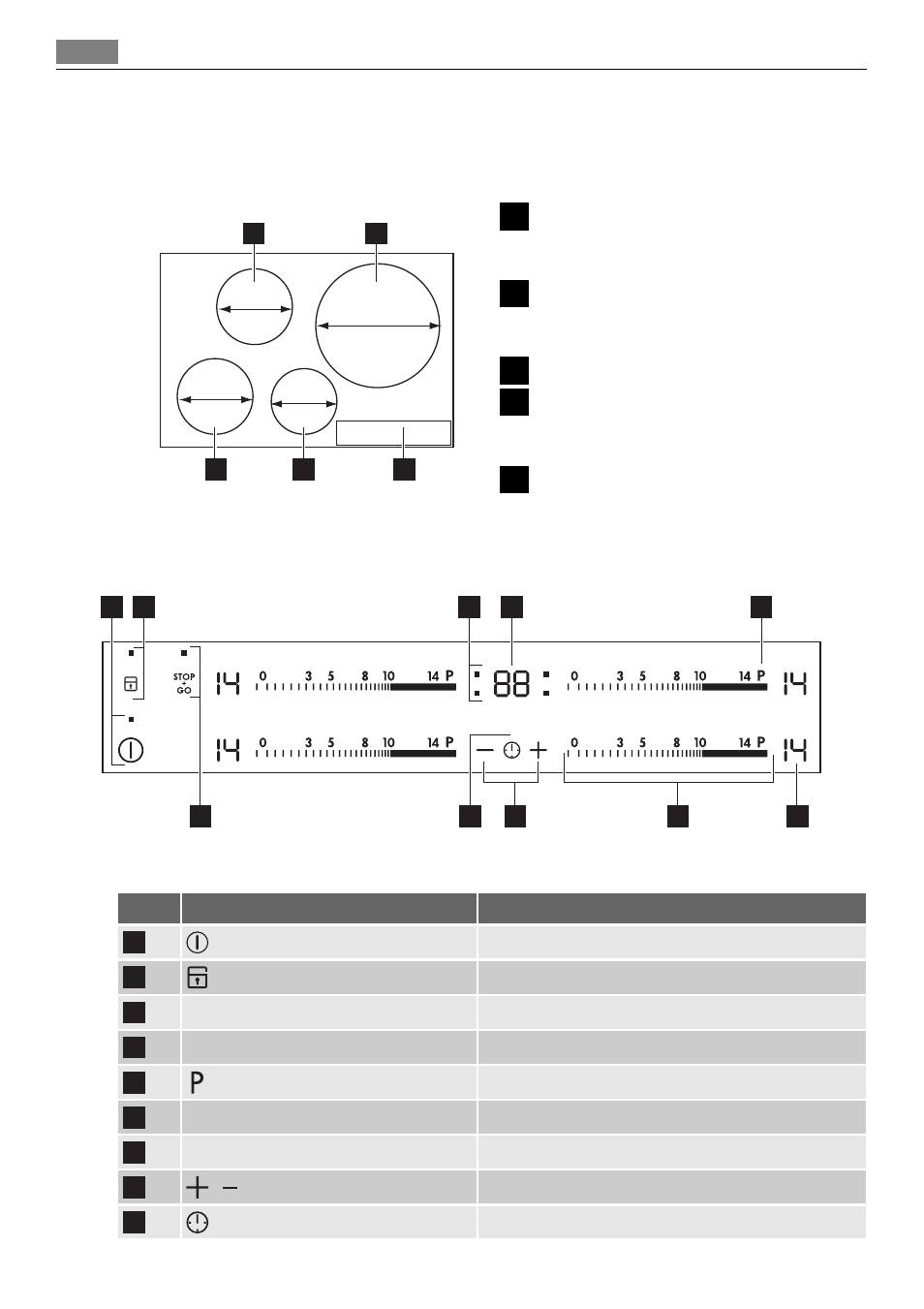

PRODUCT DESCRIPTION
General overview
300
mm
180
mm
180
mm
145
mm
2
1
3
4
5
1
Induction cooking zone 1800 W, with
Power function 2800 W (minimum
cookware diameter = 145 mm).
2
Induction cooking zone 2400 W, with
Power function 3700 W (minimum
cookware diameter = 210 mm).
3
Control panel
4
Induction cooking zone 1400 W, with
Power function 2500 W (minimum
cookware diameter = 125 mm).
5
Induction cooking zone 1800 W, with
Power function 2800 W (minimum
cookware diameter = 145 mm).
Control panel layout
5
1
2
3
4
10
8
9
7
6
Use the sensor fields to operate the appliance The displays, indicators and sounds tell which
function operate.
sensor field
function
1
It activates and deactivates the appliance.
2
It locks/unlocks the control panel.
3
cooking zones' indicators of timer
It shows for which cooking zone you set the time.
4
the timer display
It shows the time in minutes.
5
It activates the Power function.
6
a heat setting display
It shows the heat setting.
7
a control bar
To set the heat setting.
8
/
It increases or decreases the time.
9
It selects the cooking zone.
8
