NXR-700 NXR-800
GENERAL
Frequency Range K 146-174 MHz 450-480 MHz
K2 136-154 MHz 480-512 MHz (RX) / 477-512 MHz (TX)
K3 400-430 MHz
Channel Spacing Analog 12.5 / 15 / 25 / 30 kHz 12.5 / 25 kHz
Digital 6.25 / 12.5 kHz 6.25 / 12.5 kHz
PLL Channel Step 2.5 / 3.125 / 5 / 6.25 kHz 3.125 / 5 / 6.25 kHz
Frequency Stability ± 1.5 ppm
With KXK-3 (for 6.25 kHz) ± 0.5 ppm
Operating Voltage 13.8 V DC ± 15%
Operating Temperature Range -22˚ F to + 140˚ F (-30˚ C to +60˚ C)
Antenna Impedance 50 Ω
Dimensions (W x H x D) Projections not included 19.02 x 1.73 x 13.03 in (483 x 44 x 331 mm)
Weight (net) 11 lb (5 kg)
FCC ID K K44371300 K44371400
K2 K44371301 K44371401
K3 K44371402
IC Certification K 282F-371300 282F-371400
K2 282F-371301
K3 282F-371402
RECEIVER
Sensitivity
Digital @ 6.25kHz (3% BER) 0.27 µV
Digital @ 12.5kHz (3% BER) 0.33 µV
Analog (12 dB SINAD) 0.30 µV
Selectivity
Analog @ 25/30 kHz 93 dB (± 30 kHz) 87 dB (± 25 kHz)
Analog @ 12.5 kHz 85 dB (± 12.5 kHz) 81 dB (± 12.5 kHz)
FM Hum & Noise
Analog @ 25/30 kHz 60 dB
Analog @ 12.5 kHz 55 dB
Intermodulation Distortion 85 dB (± 50 / 100 kHz)
Spurious Response 100 dB
Audio Distortion (Ext. SP) Less than 2% (at 0.3W)
Audio Output (Ext. SP) 3 W (at 4 Ω , less than 5% distortion)
TRANSMITTER
RF Power Output 5 W to 0.5 W
Spurious & Harmonics 73 dB
FM Hum & Noise
Analog @ 25/30 kHz 55 dB
Analog @ 12.5 kHz 50 dB
Audio Distortion Less than 1% at 1000 Hz
Modulation 16K0F3E, 11K0F3E, 8K30F1E,
8K30F1D, 8K30F7W, 4K00F1E,
4K00F1D, 4K00F7W, 4K00F2D

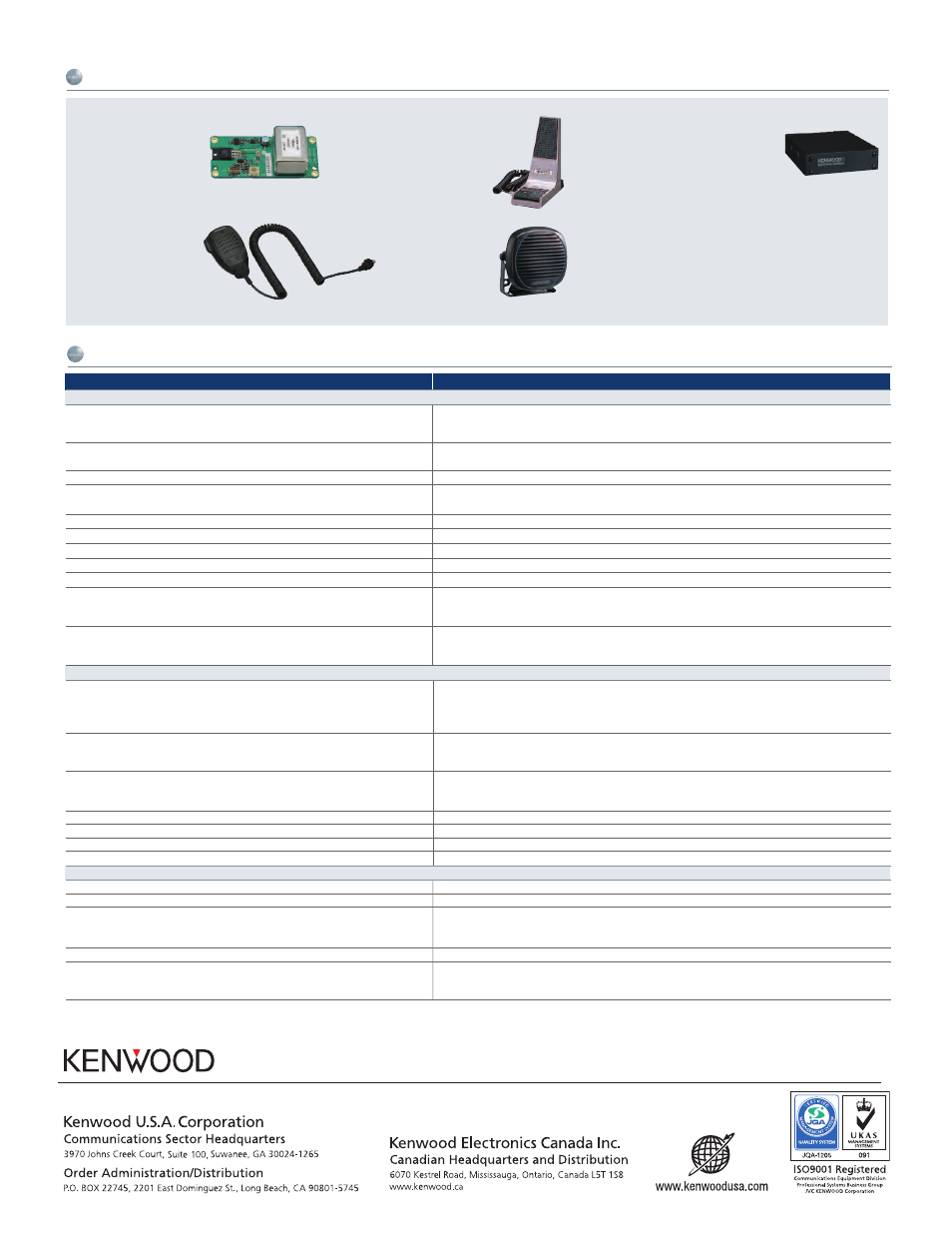

■ KXK-3
OCXO Unit
(Required for
6.25 kHz operation)
■ KMC-35
Microphone
■ KMC-9C
Desktop Microphone
■ KES-5
External Speaker
■ KTI-4M
Telephone Interconnect
Adapter
(Requires telephone patch)
Options
Main Specifications
All accessories and options may not be available in all markets.
Contact an authorized Kenwood dealer for details and complete list of all accessories and options.
Analog measurements made per TIA/EIA 603 and specifications shown are typical. Windrows ® and Windows Vista ® are registered trademarks of Microsoft Corporation
Specifications are subject to change without notice, due to advancements in technology. LTR ® is a registered trademark of Transcrypt International.
AMBE+2 TM is a trademark of Digital Voice Systems Inc.
NXDN ® is a registered trademark of JVC KENWOOD Corporation and Icom Inc.
NEXEDGE ® is a registered trademark of JVC KENWOOD Corporation.
ADS#56711 Printed in USA
