All accessories and options may not be available in all markets.
Contact an authorized Kenwood dealer for details and complete list of all accessories and options.

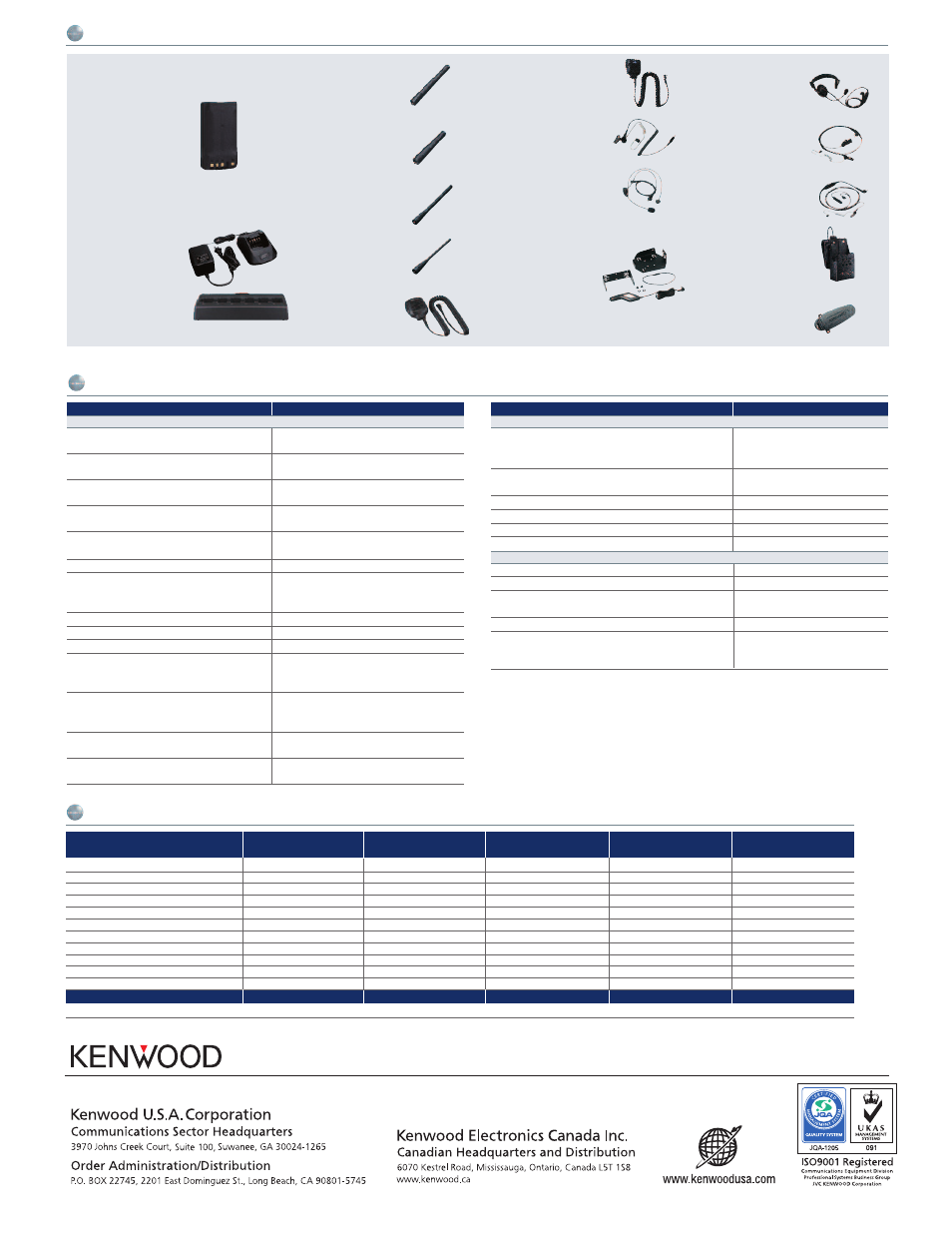

Options
NX-220 NX-320
GENERAL
Frequency Range Type 1 136-174 MHz 450-520 MHz
Type 2 400-470 MHz
Number of Channels w/LCD Model 260
w/o LCD Model 64
Zones w/LCD Model 128
w/o LCD Model 4
Max. Channels per Zone w/LCD Model 250
w/o LCD Model 16
Channel Spacing Analog 12.5 / 15 / 25* / 30* kHz 12.5 / 25* kHz
Digital 6.25 / 12.5 kHz 6.25 / 12.5 kHz
Operating Voltage 7.5V DC ± 20%
Battery Life 5-5-90 KNB-55L (1480) Approx.8.5 hours
KNB-56N (1400) Approx.8.5 hours
KNB-57L (2000) Approx. 11.5 hours
Operating Temperature Range** -22˚ F to +140˚ F (-30˚ C to +60˚ C)
Frequency Stability
± 2.0 ppm ± 1.0 ppm
Antenna Impedance 50 Ω
Dimensions (W x H x D) with KNB-55L 2.20 x 4.35 x 1.48 in (56 x 110.5 x 37.5 mm)
Projections not included with KNB-56N 2.20 x 4.35 x 1.70 in (56 x 110.5 x 43.2 mm)
with KNB-57L 2.20 x 4.35 x 1.55 in (56 x 110.5x 39.5 mm)
Weight (net) with KNB-55L 10.76 oz (305 g)
with KNB-56N 14.29 oz (405 g)
with KNB-57L 11.64 oz (330 g)
FCC ID Type 1 ALH430900 ALH431000
Type 2 ALH431001
IC Certification Type 1 282D-430900
Type 2 282D-431001
NX-220 NX-320
RECEIVER
Sensitivity Digital @ 6.25 kHz (3% BER) 0.20 µV
Digital @ 12.5 kHz (3% BER) 0.25 µV
Analog (12 dB SINAD) 0.25 µV
Selectivity Analog @ 25 kHz 72 dB
Analog @ 12.5 kHz 65 dB
Intermodulation Distortion Analog 70 dB
Spurious Response Analog 70 dB
Audio Distortion Less than 3%
Audio Output 500 mW / 8 Ω
TRANSMITTER
RF Power Output
5 W / 1 W
Spurious Response 70 dB
FM Hum & Noise Analog @ 25 kHz 45 dB
Analog @ 12.5 kHz 40 dB
Audio Distortion Less than 3%
Modulation 16K0F3E,* 11K0F3E, 8K30F1E,
8K30F1D, 8K30F7W, 4K00F1E,
4K00F1D, 4K00F7W, 4K00F2D
MIL Standard MIL 810C MIL 810D MIL 810E MIL 810F MIL 810G
Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures Methods/Procedures
Low Pressure 500.1/Procedure I 500.2/Procedure I, II 500.3/Procedure I, II 500.4/Procedure I, II 500.5/Procedure I, II
High Temperature 501.1/Procedure I, II 501.2/Procedure I, II 501.3/Procedure I, II 501.4/Procedure I, II 501.5/Procedure I, II
Low Temperature 502.1/Procedure I 502.2/Procedure I, II 502.3/Procedure I, II 502.4/Procedure I, II 502.5/Procedure I, II
Temperature Shock 503.1/Procedure I 503.2/Procedure I 503.3/Procedure I 503.4/Procedure I, II 503.5/Procedure I
Solar Radiation 505.1/Procedure I 505.2/Procedure I 505.3/Procedure I 505.4/Procedure I 505.5/Procedure I
Rain 506.1/Procedure I, II 506.2/Procedure I, II 506.3/Procedure I, II 506.4/Procedure I, III 506.5/Procedure I, III
Humidity 507.1/Procedure I, II 507.2/Procedure II, III 507.3/Procedure II, III 507.4 507.5/Procedure II
Salt Fog 509.1/Procedure I 509.2/Procedure I 509.3/Procedure I 509.4 509.5
Dust 510.1/Procedure I 510.2/Procedure I 510.3/Procedure I 510.4/Procedure I, III 510.5/Procedure I
Vibration 514.2/Procedure VIII, X 514.3/Procedure I 514.4/Procedure I 514.5/Procedure I 514.6/Procedure I
Shock 516.2/Procedure I, II, V 516.3/Procedure I, IV 516.4/Procedure I, IV 516.5/Procedure I, IV 516.6/Procedure I, IV
International Protection Standard
Dust & Water Protection IP54/55
Analog measurements made per TIA/EIA 603 and specifications shown
are typical. Specifications are subject to change without notice, due to
advancements in technology..
* 25 kHz is not for sale in the USA and the US territories.
** Operating temp. range of the KNB-55L/57L : -10ºC to +60ºC
Main Specifications
Applicable MIL-STD & IP
FleetSync ® is a registered trademark of JVC KENWOOD Corporation.
LTR ® is a registered trademark of Transcrypt International.
AMBE+2 TM is a trademark of Digital Voice Systems Inc.
Windows ® is a registered trademark of Microsoft Corporation.
NXDN ® is a registered trademark of JVC KENWOOD Corporation and Icom Inc.
NEXEDGE ® is a registered trademark of JVC KENWOOD Corporation.
Footnotes from front:
1 Requires compatible PC software
application or console.
2 Non Display Model- Pre-programmed
key operation.
3 S Version- LCD dependent and some
key-based functions not available.
4 These trunked features are primarily
system programming and operational
dependent. Priority Monitor also requires
NX subscriber settings.
■ KNB-55L
Li-ion Battery Pack
(1,480mAh)
■ KNB-56N
Ni-MH Battery Pack
(1,400mAh)
■ KNB-57L
Li-ion Battery Pack
(2,000mAh)
■ KBP-5
Battery Case
■ KSC-25
Rapid Charger
■ KSC-30
Regular Charger
for KNB-56N
■ KSC-256K
Six Unit Gang Charger
■ KRA-22
VHF Low Profile
Helical Antenna
■ KRA-23
UHF Low Profile
Helical Antenna
■ KRA-26
VHF Helical Antenna
■ KRA-27
UHF Whip Antenna
■ KMC-45
Speaker Microphone
■ KMC-48GPS
GPS Speaker
Microphone
■ KEP-2
Earphone Kit for
KMC-45 (2.5mm plug)
■ KHS-22
Head Set
■ KVC-3
Regular Rate Vehicular
Charger Adapter
(for KSC-30)
■ KVC-4
Rapid Rate Vehicular
Charger Adapter
(for KSC-25)
■ KHS-7A
Lightweight Single
Muff Headset
■ KHS-8BL
2-wire Palm Mic with
Earphone (Black)
■ KHS-9BL
3-wire Lapel Mic
with Earphone (Black)
■ KLH-179
Leather Case
■ KLH-180
Nylon Case
■ KBH-12
Belt Clip
KNB 55L
KLH-179
KSC-25
KVC-3
*To meet MIL810 and IP grade, the 2-pin connector has to be connected.
