Standard pilot wiring diagram – American Water Heater GAS-FIRED COMMERCIAL WATER HEATER User Manual

Page 23

background image

23

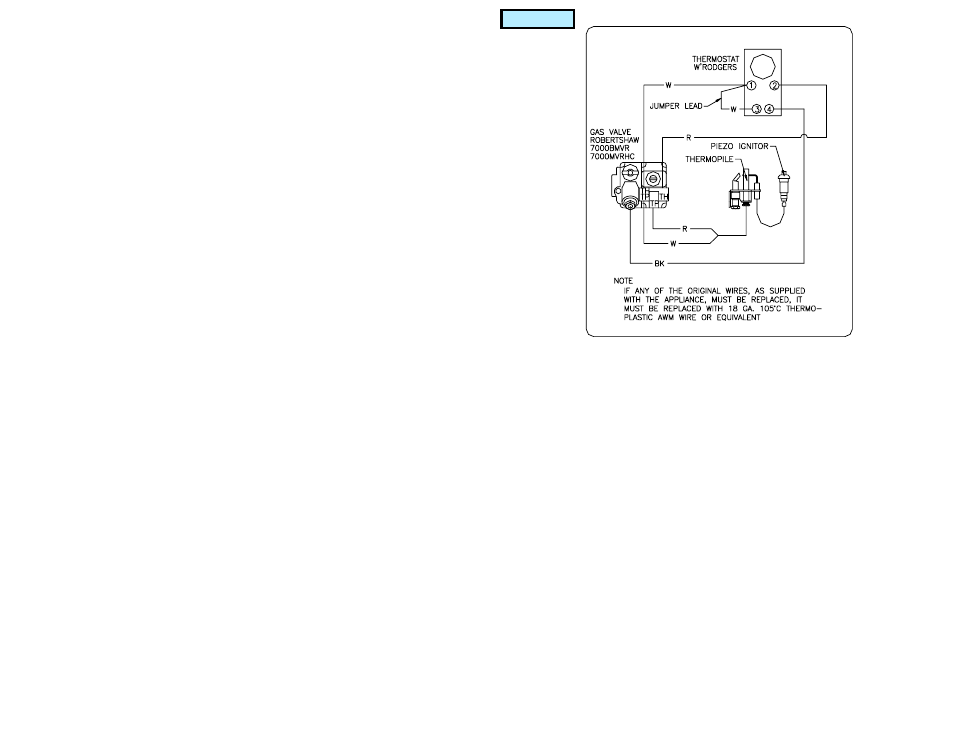

General Operation (Spark Ignition Wiring Diagram) continued-
