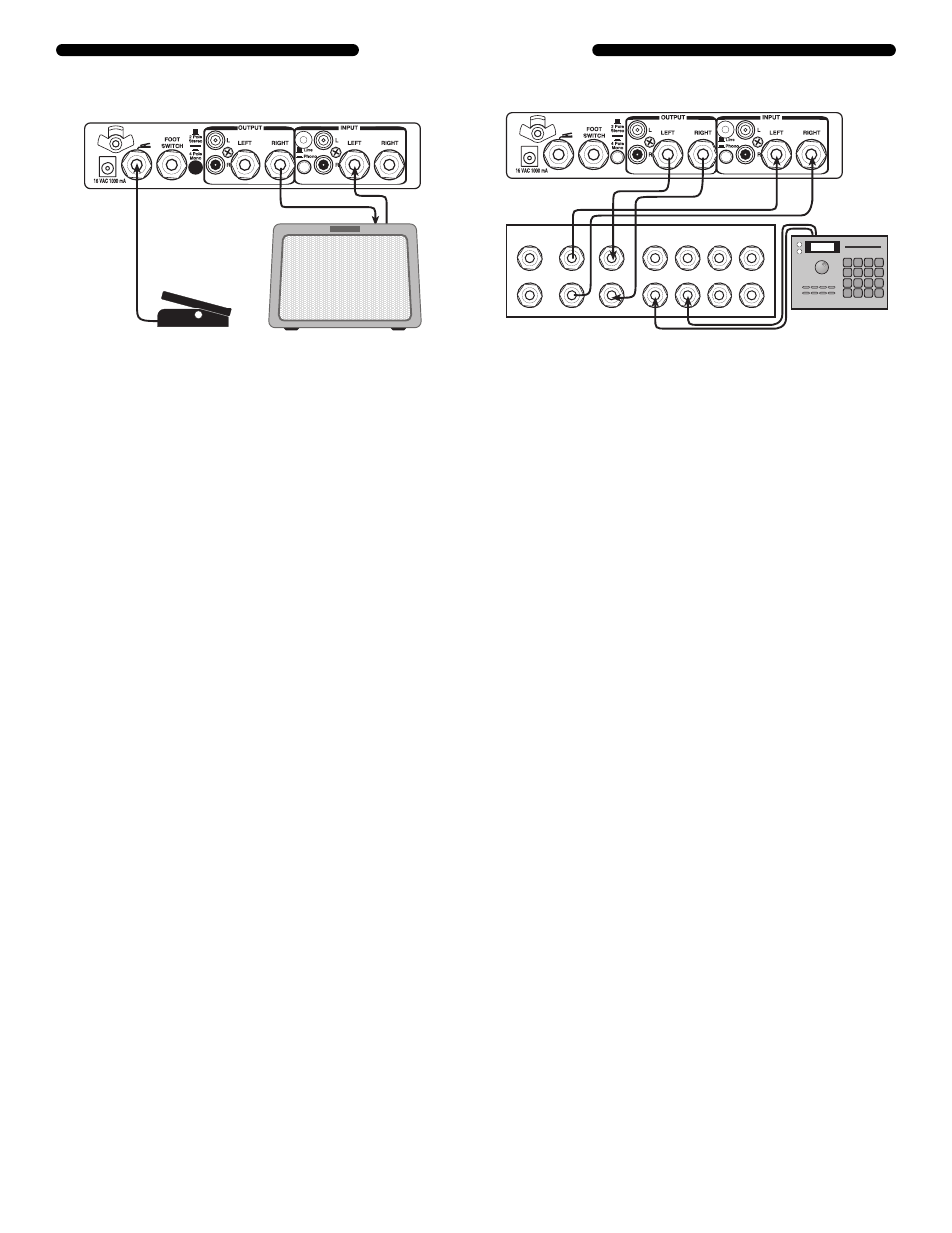

Set-up 3: Amp Effects Loop
The Filter Queen can be inserted into a guitar amp or bass amp's
effects loop. Use the 4 pole mono mode in this setup and exper-
iment with Filter Queen's Effects Mix control to get the best bal-
ance between the wet, (effected) and dry signals.
Set-up 4: Mixer with Aux Sends
This setup requires a mixer with auxiliary (aux) sends and return
capabilities. All sources are connected directly to the mixer
channel inputs. Filter Queen is fed its signals from the mixer’s
aux sends. This setup allows any or all of your sound sources to
be processed through Filter Queen at any time. The mix control
on Filter Queen should be set to 100% wet so that the dry
source signal is only heard through the mixer.
