Workhead assembly – Dake Model 150H - 907004 User Manual
Page 5
125H Press & 150H Press
10/02
5

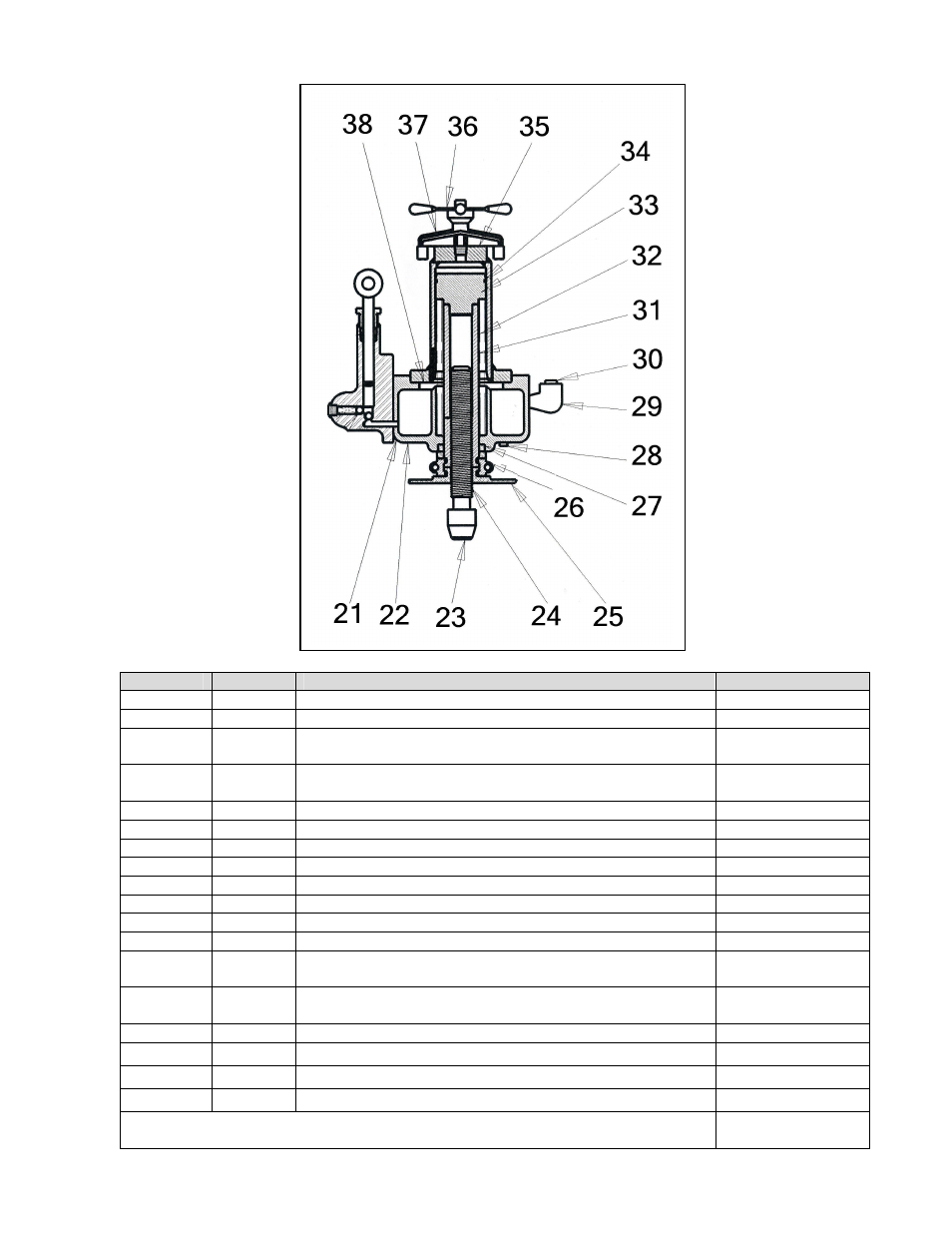

WORKHEAD ASSEMBLY
Item
Qty
Description
Part No.
21
1
Pump Gasket
591
22
1
Reservoir
1532
23
1
Screw Nose – Flat
1560
1
Screw Nose – V-ram nose
1575
24
1
1
Screw – 125H
Screw – 150H
1540
2024
25
1
Handwheel
701760
26A
1
Clamp Ring Assembly
1557
26B
1
Piston Bumper
1574
27
1
Oil Seal
1578
28
1
Pipe Plug, 1/4” NPTF
1567
29
1
Elbow, Pipe Street 3/4”
1740
30
1
Pipe Plug, 3/4” NPTF
1745
31
1
Spring, Ram
1537
32 & 33
1
Piston Assembly (Serial No. < 192522)
701803
Piston Assembly (Serial No. > 192523)
716224
34
1
Piston Leather (Serial No. < 192522)
1538
Packing Ring (Serial No. > 192523)
37052
35
1
Cylinder
1528
36
1
Handwheel
716521
37
1
Yoke
1569
38
1
Gasket, Cylinder
1577
Repair Kit – Cylinder & Hand Pump Assembly
(Includes – Items 5,8,17,20,26B,27,34,38)
701293
