OZ Lifting Products Brake Winch OM - Manual (Page 14)

pg.14

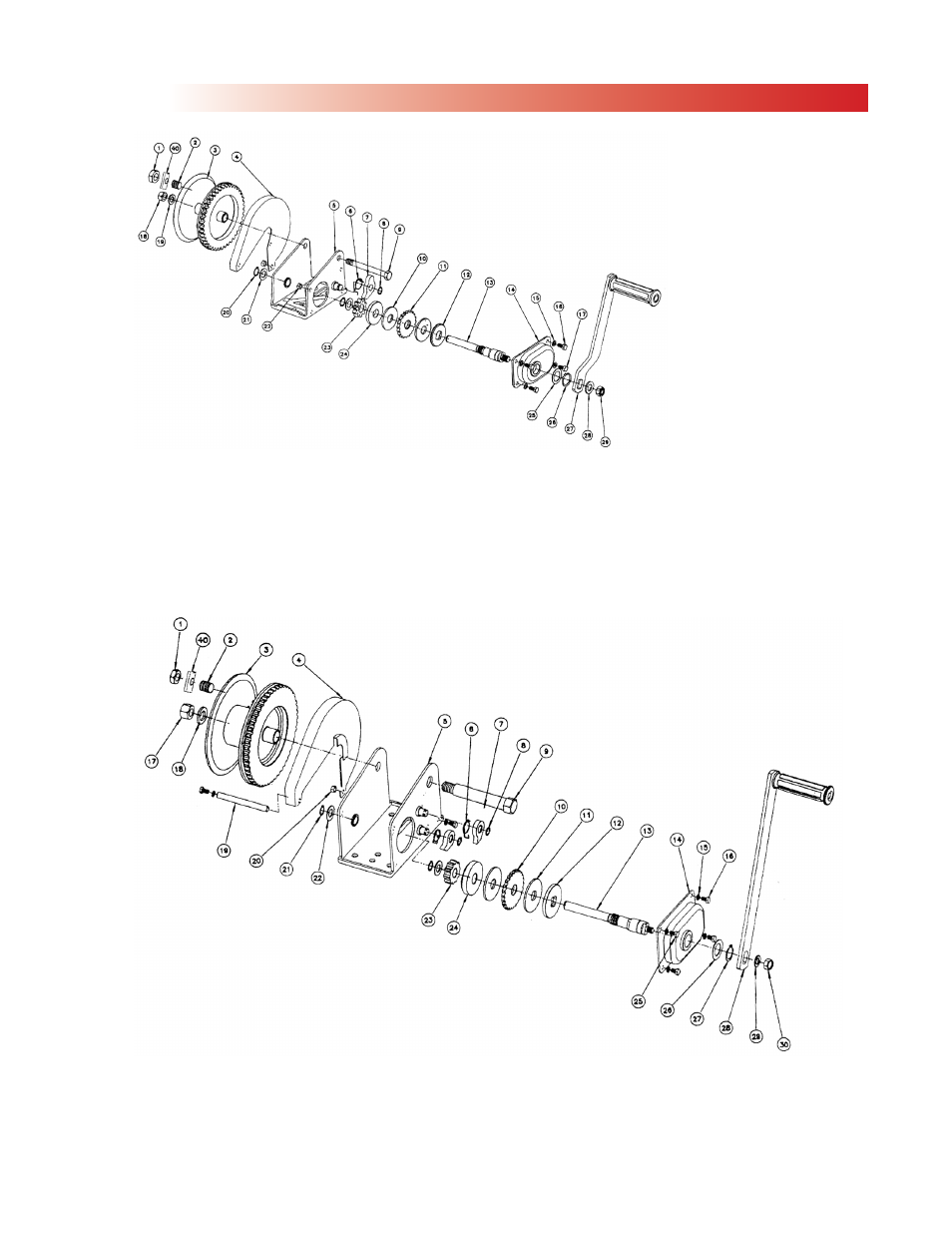

Parts
1. Nut (1)
2. Screw (1)
3. Drum (1)
4. Cover (1)
5. Mounting Base (1)
6. Snap Ring (2)
7. Ratchet Pawl (2)
8. Retaining Ring (2)
9. Shaft (1)
10. Rachet (1)
1. Nut (1)
2. Screw (1)
3. Drum (1)
4. Cover (1)
5. Mounting Base (1)
6. Snap Ring (2)
7. Ratchet Pawl (1)
8. Retaining Ring (1)
9. Bolt (1)
10. Friction Brake (2)
11. Friction Brake (2)
12. Clip (1)
13. Shaft (1)
14. Cover Part (1)
15. Washer 6 (5)
16. Bolt (5)
17. Nut (1)
18. Washer (1)
19. Support Rod (1)
20. Nut (1)
11. Rachet (1)
12. Clip (1)
13. Shaft (1)
14. Cover Part (1)
15. Washer (4)
16. Bolt (2)
17. Bolt (2)
18. Nut (1)
19. Washer (1)
20. Retaining Ring (2)
21. Retaining Ring (2)
22. Washer (2)
23. Gear (1)
24. Clip (1)
25. Bolt (1)
26. Washer (1)
27. Retaining Ring (1)
28. Handle (1)
29. Washer (1)
30. Nut (1)
40. Wire Rope Clip
21. Washer (2)
22. Nut (2)
23. Gear (1)
24. Clip (1)
25. Washer (1)
26. Retaining Ring (1)
27. Handle (1)
28. Washer (1)
29. Nut (1)
40. Wire Rope Cip (1)
OZ1500BW - OZ1500BWSS
OZ1000BW - OZ1000BWSS
