Technical Information
(0.75, 1.5, 3, 6, and 9 tons)
Specification
Product Code OZ075LHOP OZ150LHOP OZ300LHOP OZ600LHOP OZ900LHOP
Safe Working Lift (tons) 0.75 (t) 1.5 (t) 3 (t) 6 (t) 9 (t)
Headroom (in) 12.79 (in) 14.96 (in) 18.90 (in) 24.41 (in) 27.56 (in)
Effort on lever to lift full load (lbs) 30.86 (lbs 48.50 (lbs) 70.55 (lbs) 74.96 (lbs) 79.37 (lbs)
Number of Load Chain Falls 1 1 1 2 3
Diameter of Load Chain (mm) 6 (mm) 8 (mm) 10 (mm) 10 (mm) 10 (mm)
Length of Lever Handle (in) 11.02 (in) 16.14 (in) 16.14 (in) 16.14 (in) 16.14 (in)
A 12.79 (in) 14.96 (in) 18.89 (in) 24.40 (in) 27.55 (in)
B 5.35 (in) 6.29 (in) 7.08 (in) 9.25 (in) 12.44 (in)

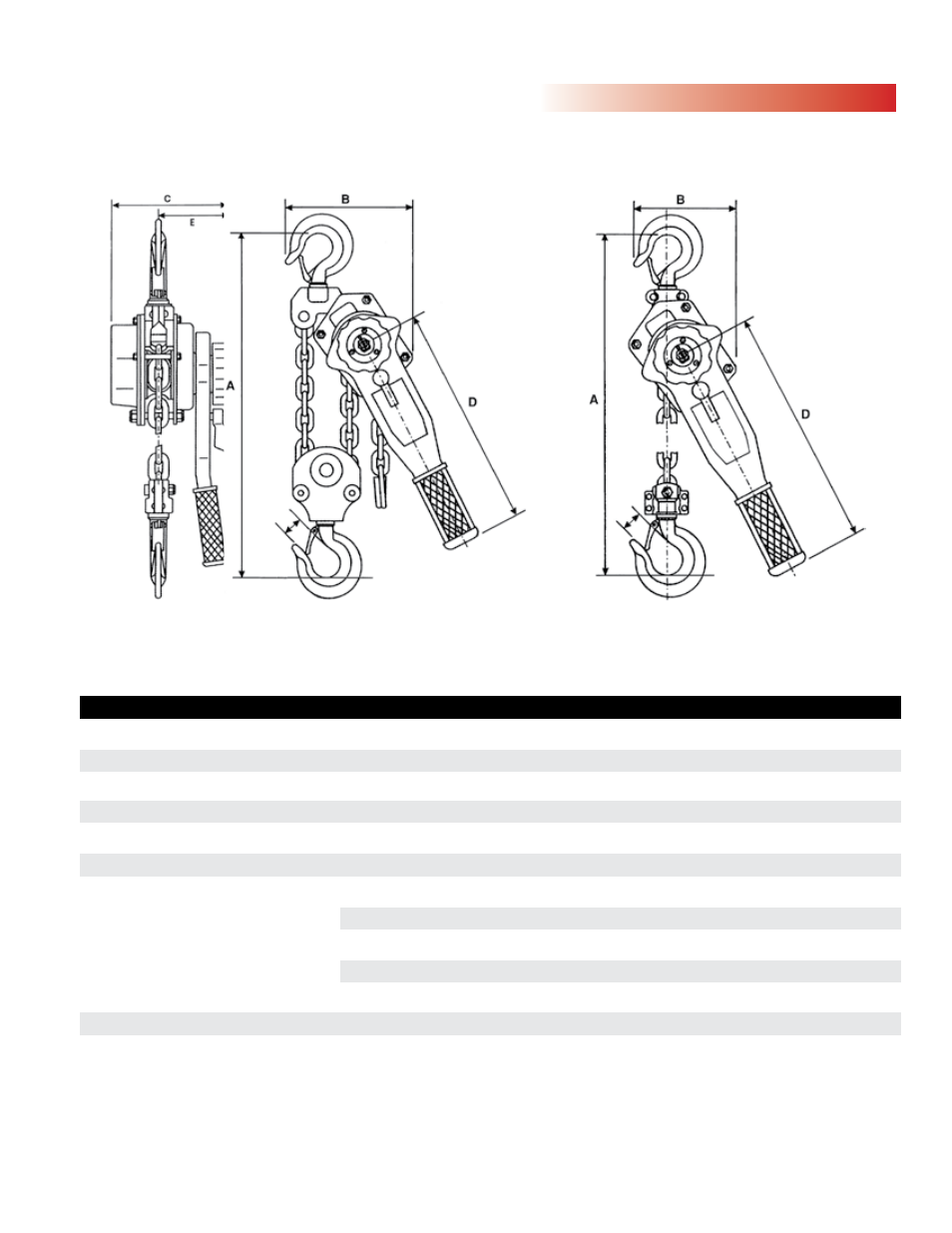

Dimensional Information (in) C 5.82 (in) 6.77 (in) 7.87 (in) 7.87 (in) 7.87 (in)
D 11.02 (in) 16.14 (in) 16.14 (in) 16.14 (in) 16.14 (in)
E 3.54 (in) 3.85 (in) 4.52 (in) 4.52 (in) 4.52 (in)
Hook-opening, upper & lower (in) 1.18 (in) 1.41 (in) 1.57 (in) 1.96 (in) 2.28 (in)
Net Weight of Head Only (lbs) 13 (lbs) 22 (lbs) 33 (lbs) 51 (lbs) 67 (lbs)
