Accessories
FPM-3150G-RMKE
19” rack mounting kit for
FPM-3150G series FPM-2150G-RMKE
19” rack mounting kit for
FPM-2150G series FPM-2150G-SMKE
Stand / desk / wall mounting kit
for FPM-2150G, FPM-3150G,
FPM-3120G PWR-246E
Industrial DC to DC converter
w/24~48VDC power input
RS-232 Cable 9-pin
to 9 pin
1700091800 (1.8m) VGA Cable 15-pin
to 15-pin
1700151801 (1.8m)
1700155000 (5m)
1700151000 (10m)
1700155001 (50m) FPM-3060G-VMKE
VESA mounting kit for
FPM-3060G series FPM-5151G-SMKE
Stand Kit for FPM-5151G

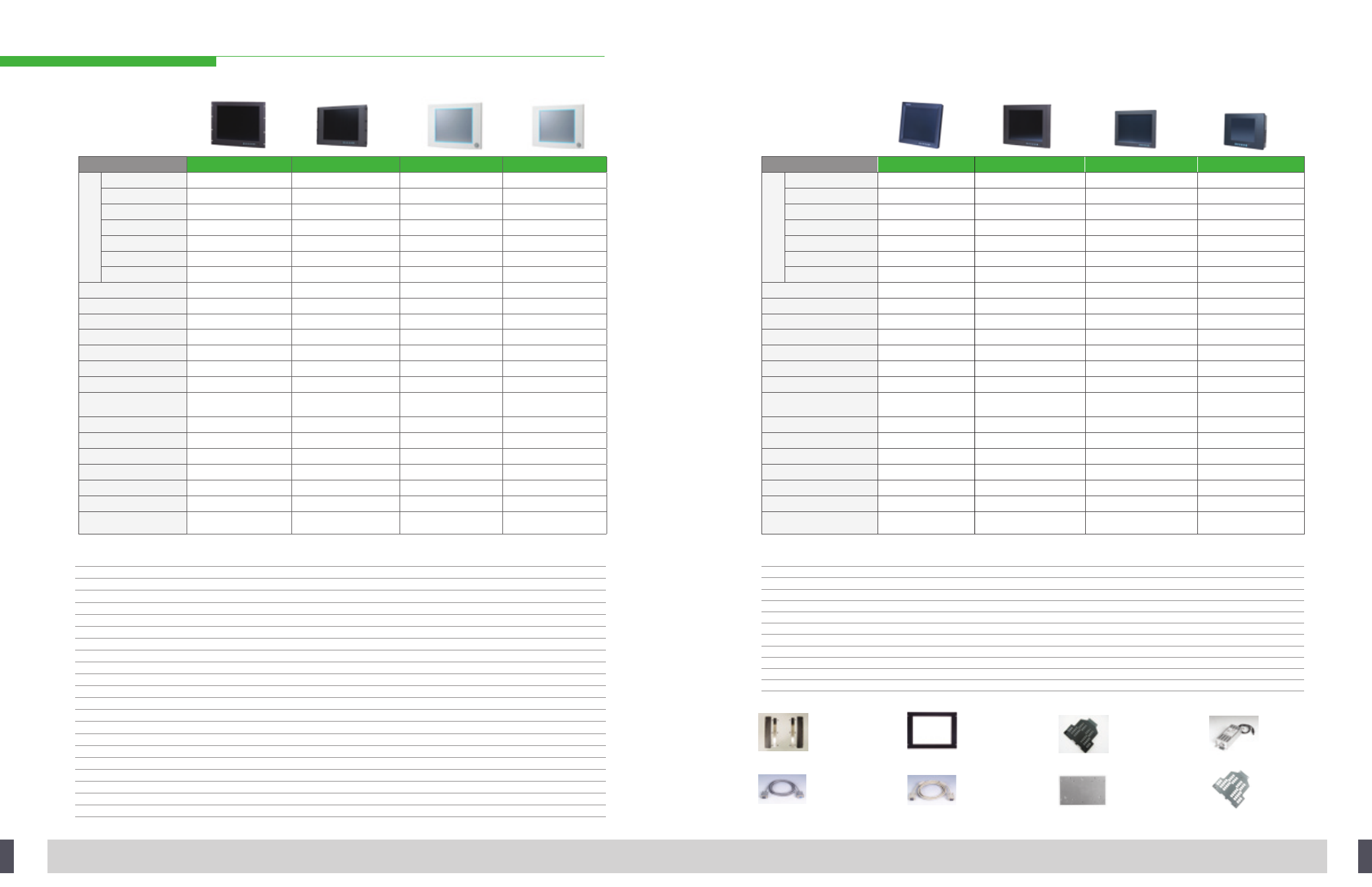

Model FPM-3190G/3191G FPM-3170G/3171G FPM-5171G FPM-5151G
LC
D D
is
pl
ay
Size (diagonal) 19" 17" 17" 15"
Resolution 1280 x 1024 1280 x 1024 1280 x 1024 1024 x 768
Colors 16.2M 16.2 M 16.7 M 16.2 M
Viewing Angle (H/V°) 178, 178 140, 130 160, 160 140, 120
Luminance (cd/m2) 300 300 300 250
Backlight Life (hrs) 50000 40000 50000 50000
Contrast Ratio 1000 : 1 700 : 1 800 : 1 500 : 1
Direct VGA Input Yes Yes Yes Yes
DVI Input FPM-3190G FPM-3170G Yes Yes
S-Video FPM-3190G FPM-3170G - -
Video Input FPM-3190G FPM-3170G - -
Touchscreen (optional) Resistive Resistive Resistive Resistive
OSD (onscreen display) Yes Yes Yes Yes
Touchscreen Sensor ELO ELO AMT AMT
Inverter TDK TDK TDK TDK
Power Adapter (voltage, AC) 100-240 V 100-240 V 100-240 V 100-240 V
DC Power Input (voltage) N/A N/A 10-30 V 10-30 V
Front Panel Ingress Protection NEMA4/IP65 NEMA4/IP65 NEMA4/IP65 NEMA4/IP65
Operating Temperature 0 ~ 50° C (32 ~ 122° F) 0 ~ 50° C (32 ~ 122° F) 0 ~ 50° C (32 ~ 122° F) 0 ~ 50° C (32 ~ 122° F)
Storage Temperature -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F)
Certifications BSMI, CCC, CE, FCC BSMI, CCC, CE, FCC BSMI, CCC, CE, FCC BSMI, CCC, CE, FCC, UL
Dimensions (W x H x D)
312 x 244 x 44.6 mm
(12.28” x 9.61” x 1.76”)
220 x 150 x 46 mm
(8.7” x 5.9” x 1.8” )
422 x 310 x 86 mm
(16.6” x 12.2” x 3.4”)
383 x 307 x 48 mm
(15” x 12” x 1.89”)
Model FPM-2150G FPM-3150G FPM-3120G FPM-3060G
LC
D D
is
pl
ay
Size (diagonal) 15" 15" 12.1" 6.5"
Resolution 1024 x 768 1024 x 768 800 x 600 640 x 480
Colors 16.2 M 16.2 M 262 k 262 k
Viewing Angle (H,V) 140, 125 140, 120 140, 120 140, 120
Luminance (cd/m2) 250 550 350 300
Backlight Life (hrs) 50,000 50,000 50,000 50,000
Contrast Ratio 500 : 1 500 : 1 200 : 1 500 : 1
Direct VGA Input Yes Yes Yes Yes
DVI Input - Yes - -
S-Video - - - -
Video Input - - - -
Touchscreen (optional) Resistive Resistive Resistive Resistive
OSD (onscreen display) Yes Yes Yes Yes
Touchscreen Sensor AMT AMT AMT AMT
Inverter TDK TDK TDK TDK
Power Adapter (voltage, AC) 100-240 V 100-240 V 100-240 V 100-240 V
DC Power Input (voltage) N/A N/A N/A N/A
Front Panel Ingress Protection NEMA4/IP65 NEMA4/IP65 NEMA4/IP65 NEMA4/IP65
Operating Temperature 0 ~ 50° C (32 ~ 122° F) 0 ~ 50° C (32 ~ 122° F) 0 ~ 50° C (32 ~ 122° F) 0 ~ 50° C (32 ~ 122° F)
Storage Temperature -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F) -20 ~ 60° C (-4 ~ 140° F)
Certifications BSMI, CCC, CE, FCC, UL BSMI, CCC, CE, FCC BSMI, CCC, CE, FCC BSMI, CCC, CE, FCC
Dimensions (W x H x D)
383 x 307 x 48 mm
(15” x 12” x 1.89”)
422 x 310 x 86 mm
(16.6” x 12.2” x 3.4”)
312 x 244 x 44.6 mm
(12.28” x 9.61” x 1.76”)
220 x 150 x 46 mm
(8.7” x 5.9” x 1.8” )
FPM Selection Guide and Ordering Information
FPM-3190G-XBE Industrial 19” TFT LCD Display with 19” Rack-Mount Bezel, Direct-VGA, DVI-D, S-Video & Video Input
FPM-3190G-RBE FPM-3190G-XBE with Resistive Touchscreen (RS-232 Interface)
FPM-3190G-UBE FPM-3190G-XBE with Resistive Touchscreen (USB Interface)
FPM-3191G-XBE Industrial 19” SXGA Flat Panel Monitor
FPM-3191G-RBE FPM-3191G-XBE with Resistive Touchscreen (RS-232 Interface)
FPM-3191G-UBE FPM-3191G-XBE with Resistive Touchscreen (USB Interface)
FPM-3170G-XBE Industrial 17” TFT LCD Display with 19” Rack-Mount Bezel, Direct-VGA, DVI-D, S-Video & Video Input
FPM-3170G-RBE FPM-3170G-XBE with Resistive Touchscreen (RS-232 Interface)
FPM-3170G-UBE FPM-3170G-XBE with Resistive Touchscreen (USB Interface)
FPM-3171G-XBE Industrial 17” SXGA Flat Panel Monitor
FPM-3171G-RBE FPM-3171G-XBE with Resistive Touchscreen (RS-232 Interface)
FPM-3171G-UBE FPM-3171G-XBE with Resistive Touchscreen (USB Interface)
FPM-5171G-X0AE Industrial 17" TFT LCD Display with Direct-VGA & DVI-D Port
FPM-5171G-R3AE FPM-5171G-X0AE with Resistive Touchscreen (RS-232 & USB Interface)
FPM-5151G-X0AE Industrial 15" TFT LCD Display with Direct-VGA & DVI-D Port
FPM-5151G-R3AE FPM-5151G-X0AE with Resistive Touchscreen (RS-232 & USB Interface)
FPM-3150G-XCE Industrial 15” TFT LCD Display with Direct-VGA & DVI-D Port
FPM-3150G-RCE FPM-3150G-XCE with Resistive Touchscreen (RS-232 & USB Interface)
FPM-2150G-XCE Industrial 15” TFT LCD Display with Direct-VGA Port
FPM-2150G-RCE FPM-2150G-XCE with Resistive Touchscreen (RS-232 Interface)
FPM-2150G-UCE FPM-2150G-XCE with Resistive Touchscreen (USB Interface)
FPM-3120G-XAE Industrial 12.1” SVGA TFT LCD with Direct-VGA Port
FPM-3120G-RAE FPM-3120G-XAE with Resistive Touchscreen (RS-232 Interface)
FPM-3060G-XAE Industrial 6” VGA TFT LCD with Direct-VGA Port
FPM-3060G-RAE FPM-3060G-XAE with Resistive Touchscreen (RS-232 Interface)
FPM-3060G-UAE FPM-3060G-XAE with Resistive Touchscreen (USB Interface)
FPM-3150G-RMKE Mounting Kit for 19” Industrial Rack (For FPM-3150G Series)
FPM-2150G-RMKE Mounting Kit for 19” Industrial Rack (For FPM-2150G Series)
FPM-2150G-SMKE Mounting Kit for Desktop & Wall (For FPM-2150G/3120G/3150G Series)
FPM-3060G-VMKE FPM-3060G VESA Mounting Kit
FPM-5151G-SMKE Stand Kit for FPM-5151G
PWR-246E Industrial DC to DC Converter with 24 ~ 48VDC Power Input
Ordering Information Ordering Information
