4. Connecton Diagram
The RM6193 comes with a standard 15-pin VGA video input and external
110/220VAC power adapter.
Optional Video-input for S-video / BNC / RCA connector and USB or PS/2 type
resistive-type touch.

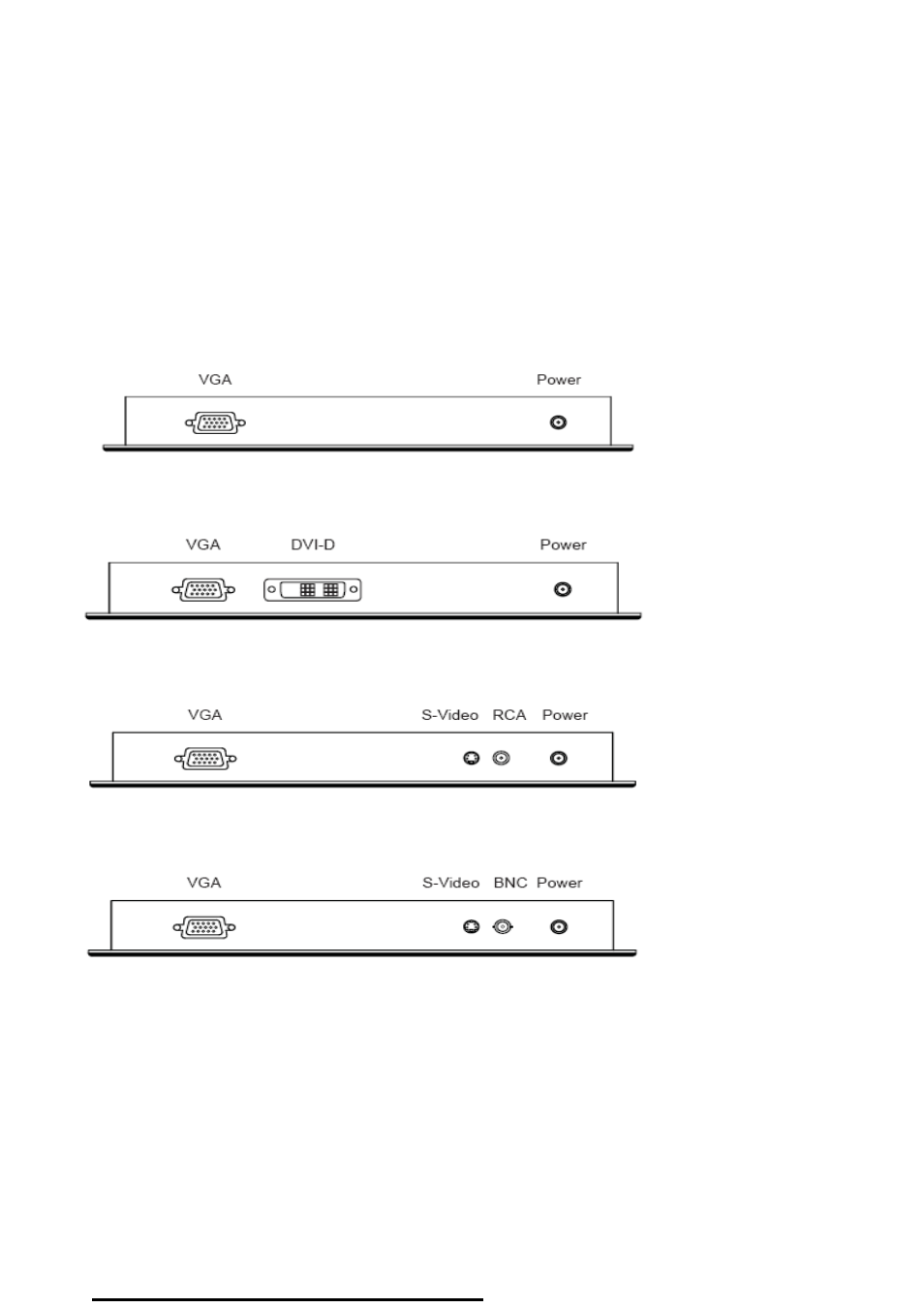

4.1 Video-input Connection Diagram
15-pin D-sub VGA
15-pin D-sub VGA and DVI-D
15-pin D-sub VGA, S-video and RCA
15-pin D-sub VGA, S-video and BNC
