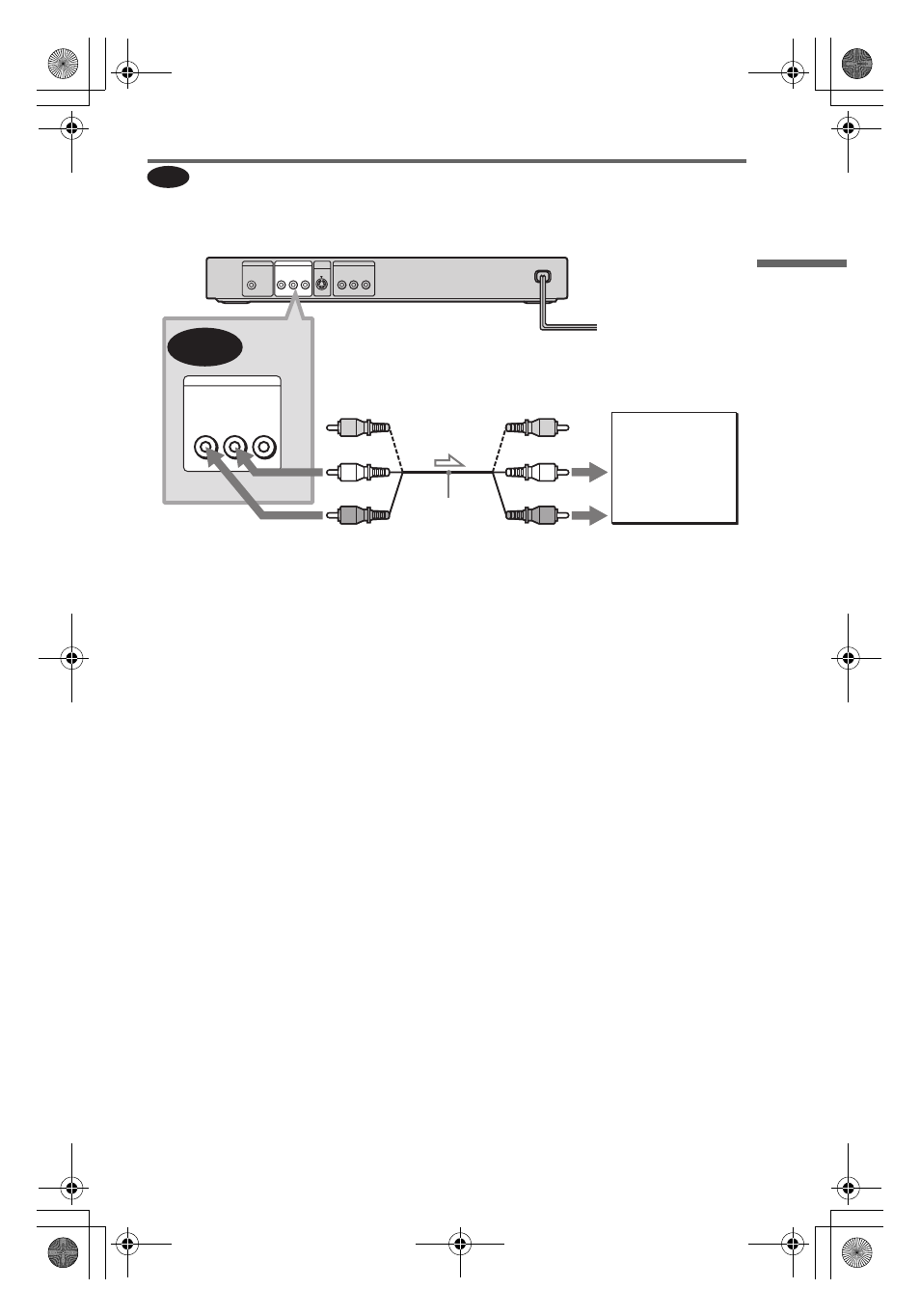

Connecting to your TV
This connection will use your TV speakers for sound.
* The yellow plug is used for video signals (page
16).
z Hint
When connecting to a monaural TV, use a stereo-
mono conversion cord (not supplied). Connect the
LINE OUT L/R (AUDIO) jacks to the TV’s audio
input jack.
A
PCM/DTS/ DOLBY DIGITAL
COAXIAL
DIGITAL OUT LINE OUT S VIDEO OUT
R-AUDIO-L VIDEO PR Y
COMPONENT VIDEO OUT
PB
A
LINE OUT
R-AUDIO-L VIDEO
TV
l : Signal flow
CD/DVD player
(white)
(red)
Audio/video
cord (supplied)
to audio input
(yellow) *
(white)
(yellow) *
to LINE OUT L/R
(AUDIO)
(red)
, continued
