5
2. Setting Up RocketStor SMART BackUp

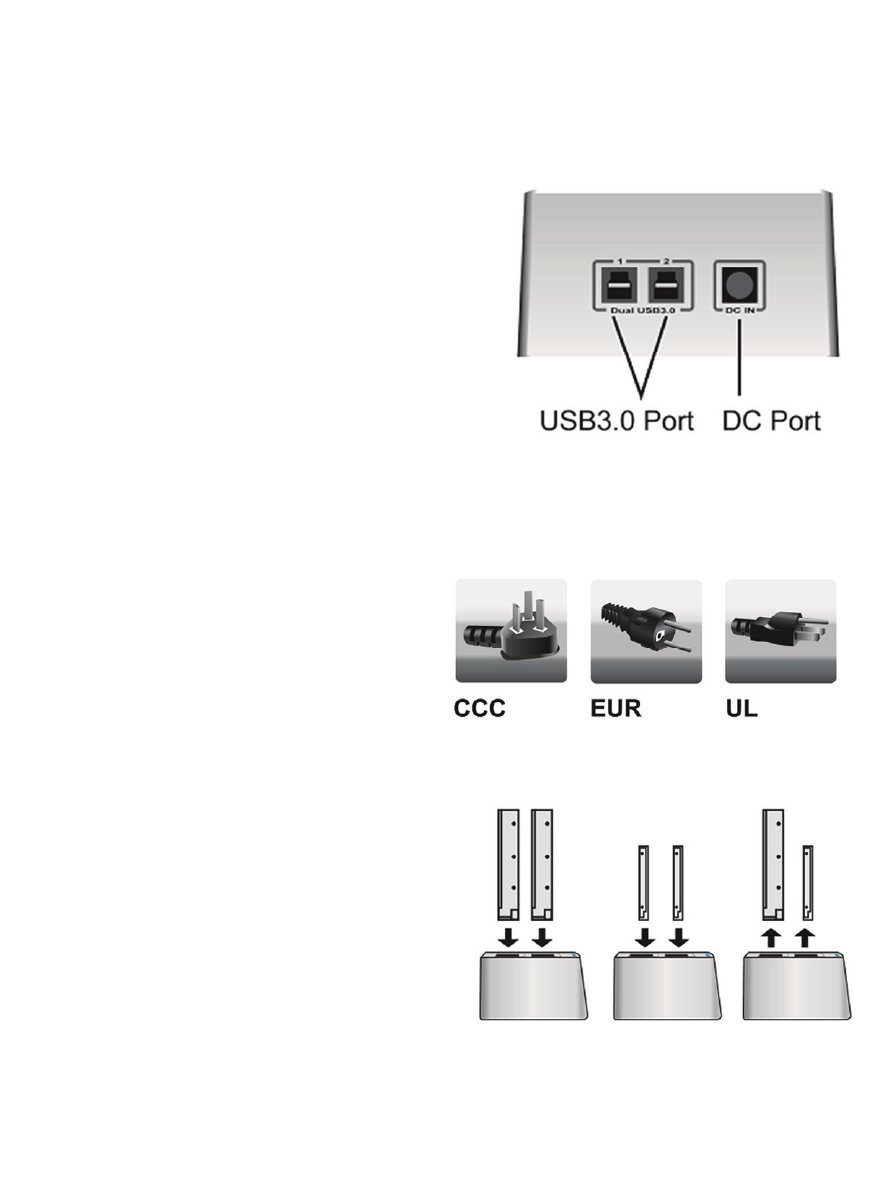

2.1 Connecting USB cables
Connect the Type B USB Connectors
to the back of the RocketStor USB
device.
2.2 Power Adapter Installation
Installing the DC Power Plug:
Connect the power adapter to the DC Port
found on the back of the RocketStor SMART BackUp device.
Installing the AC Power cord:
Connecting the AC Power cord to the Power Adapter and connecting the AC Power
Plug to the Power Jack.
CCC is for Asia
EUR is for Europe
UL is for the United States
2.3SATA Drives Installation and Ejecting
Installation - Simultaneously install
two 3.5’’HDD or two 2.5’’HDD/SDD
Ejecting
- Hold the base of the
RocketStor device and press the Eject
Button. Gently remove the drive by
pulling straight upwards.
