1. Open the system chassis and locate an unused PCI-E (2.0 or 1.0) ×8
(or x16) slot.
2. Remove the PCI-E slot cover.
3. Gently insert the RocketRAID 4520/4522 into the PCI-E slot, and
secure the bracket to the system chassis.
4. After installing the adapter, attach the hard disks or backplane
enclosure to the host adapter using the mini-SAS cables.
5. Close and secure the system chassis.
Using the RocketRAID 4500 Series HBA
Driver and Software Installation (Windows)
1. After installing the RocketRAID 4500 series host adapter, boot to
the Windows operating system.
2. Windows should automatically detect the card, and display the
“Found New Hardware Wizard”.
3. Insert the HighPoint software CD to a CD/DVD drive.
4. Windows will popup the CD auto-run program. Allow to run the
CD by click the “Run Setup.exe”

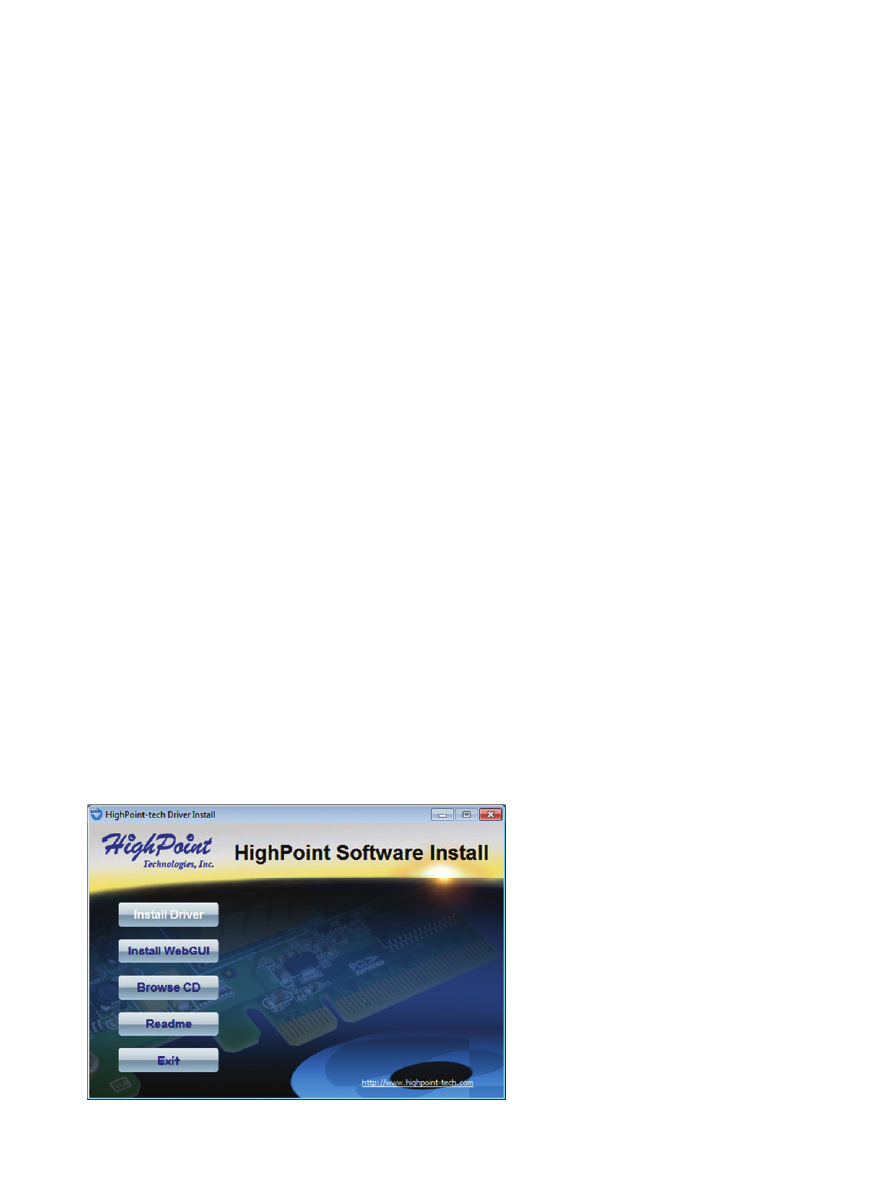

5. The HighPoint software Install program interface will be pop-up.
Click the “Install Driver” button to install the Device Driver for
RocketRAID 4500 Series HBA.
