Page 5
5
NA762TB Hardware

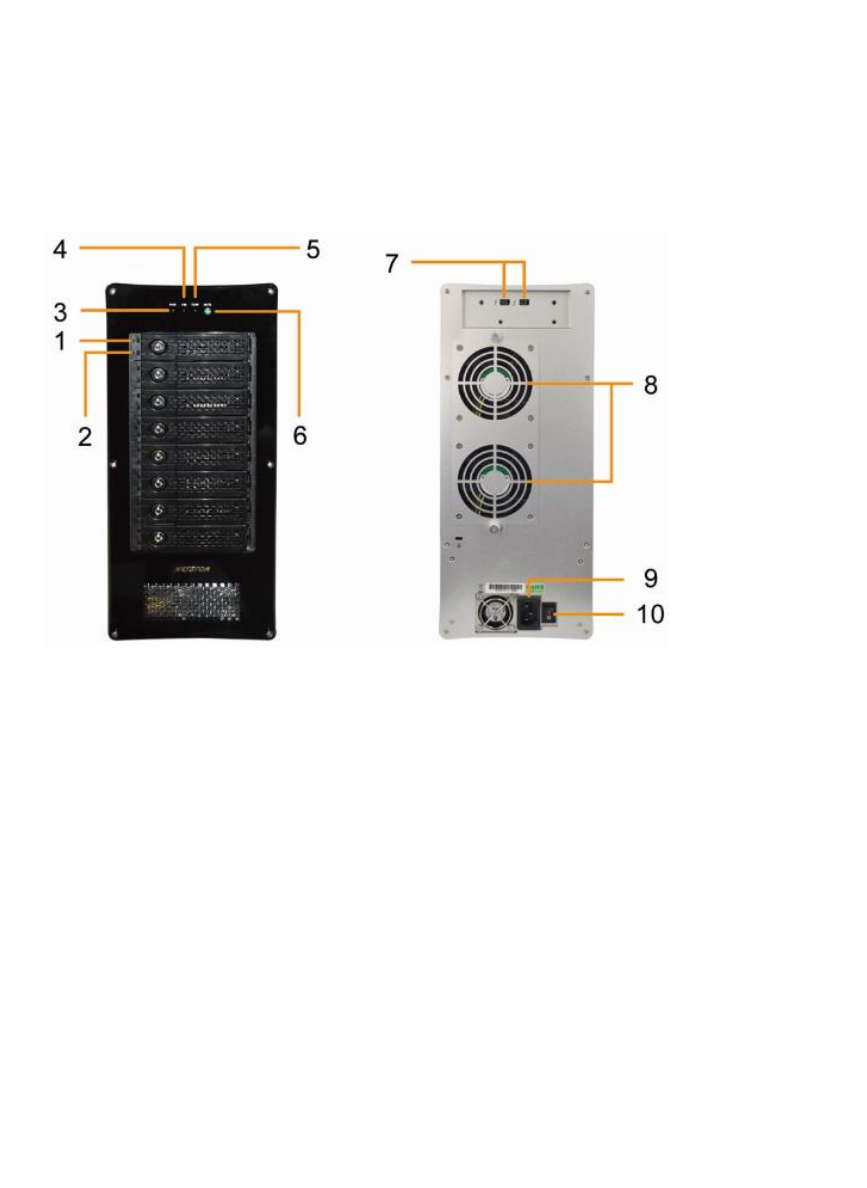

Panel Layout
1.
HDD Power LED: White - Power On Indicator
2.
HDD Status LED: Flash Blue - HDD Access Indicator, Red -
HDD Failure Indicator
3.
Power on LED: White - Enclosure power on
4.
Fan Status LED: Normal - Green, Failure - Red (too slow RPM or
stop)
5.
Temperature LED: Normal - Green; Over-temperature - Red
6.
Mute Button: Reset for Buzzer Beeping
7.
Thunderbolt connectors:
Connecting Thunderbolt cables to host, upstream and downstream
device
8.
Hot-swappable cooling fans
9.
Power cord receptacle
10. Power switch
