User's Guide ________________________________________________________
8 ______________________________________________________ M210294en-A
0204-044

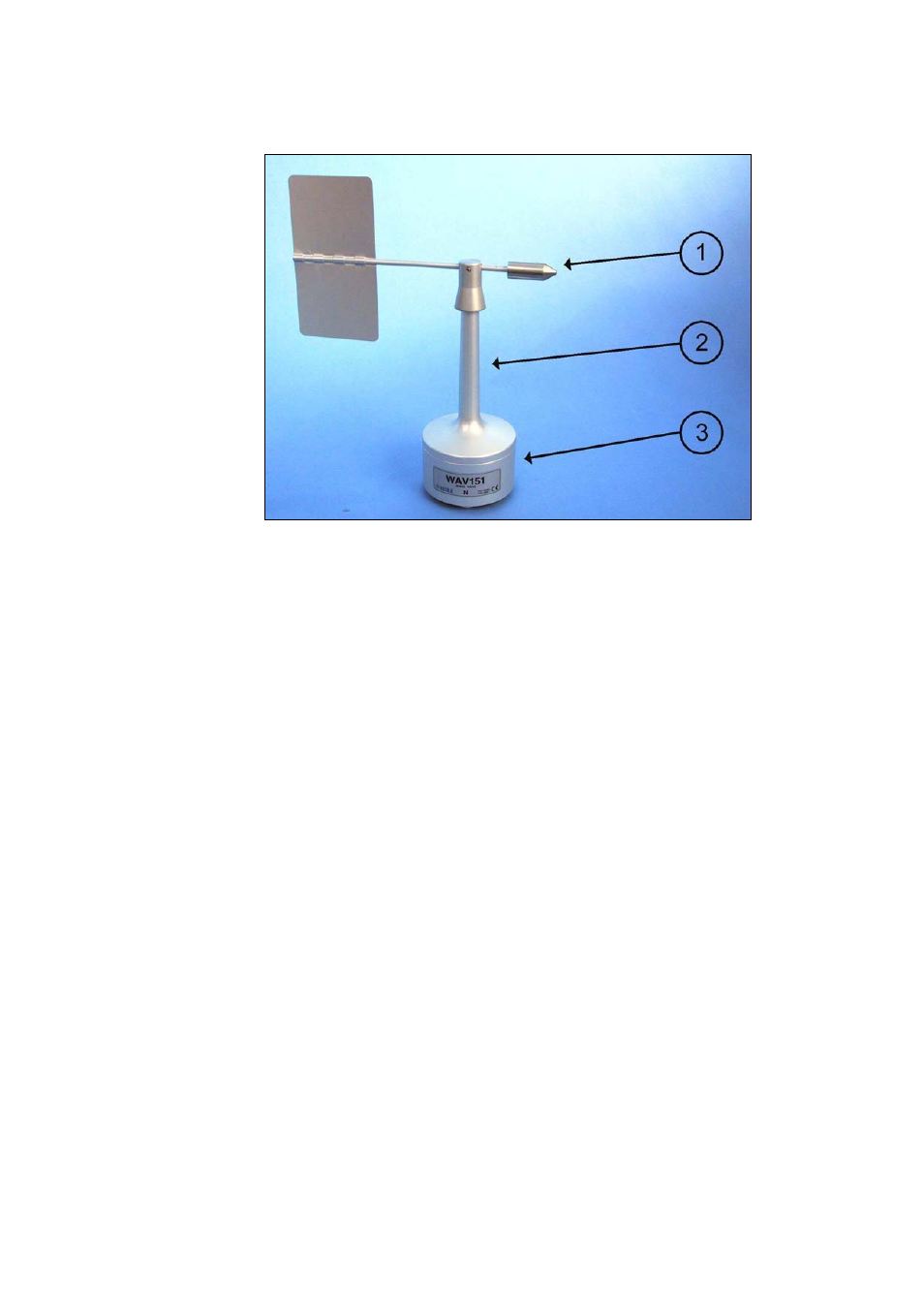

Figure 1
WAV151 Wind Vane
The following numbers refer to Figure 1 above:
1
=
Vane assembly
2
=
Sensor shaft
3
=
Lower body
