Haws 8317CTFPC1D1 - Manual (Page 6)

SHOWER VALVE ASSEMBLY
SP158B FREEZE
PROTECTION VALVE
(SEE PAGES 8 & 9
FOR ADDITIONAL
COMPONENTS)
SP170 TEST TAG
SP829
SHOWER HEAD
EYEWASH VALVE
ASSEMBLY
SP178
SHOWER/EYEWASH
SIGN
SP200
PULL ROD
1-1/4" UNION
APPROVED
DRAWN
PART NUMBER
DRAWING NO.
SCALE: SHEET OF
REV
DRAWING TYPE: SIZE: A
BY ECN NO.
PAGE
DATE
DATE
ECN:
REVISED PER
CHKD
Haws Corporation - All Rights Reserved
HAWS and other trademarks used in these materials are the exclusive property of Haws Corporation.
C
R
MODEL(S)
1455 KLEPPE LANE
SPARKS, NEVADA 89431
(775) 359-4712 FAX (755) 359-7424
E-MAIL: [email protected]
WEBSITE: WWW.HAWSCO.COM
THIS DOCUMENT IS TRUE AND CORRECT AT TIME OF PUBLICATION. CONTINUED PRODUCT IMPROVEMENTS
MAKE SPECIFICATIONS AND MEASUREMENTS SUBJECT TO CHANGE WITHOUT NOTICE.
WHEN ORDERING PARTS PLEASE SPECIFY MODEL NUMBER. SLS 07/16/08
15362A00 9
0002077032
8317CTFPC1D1
1/9 1 1
4140 HM
6 of 10

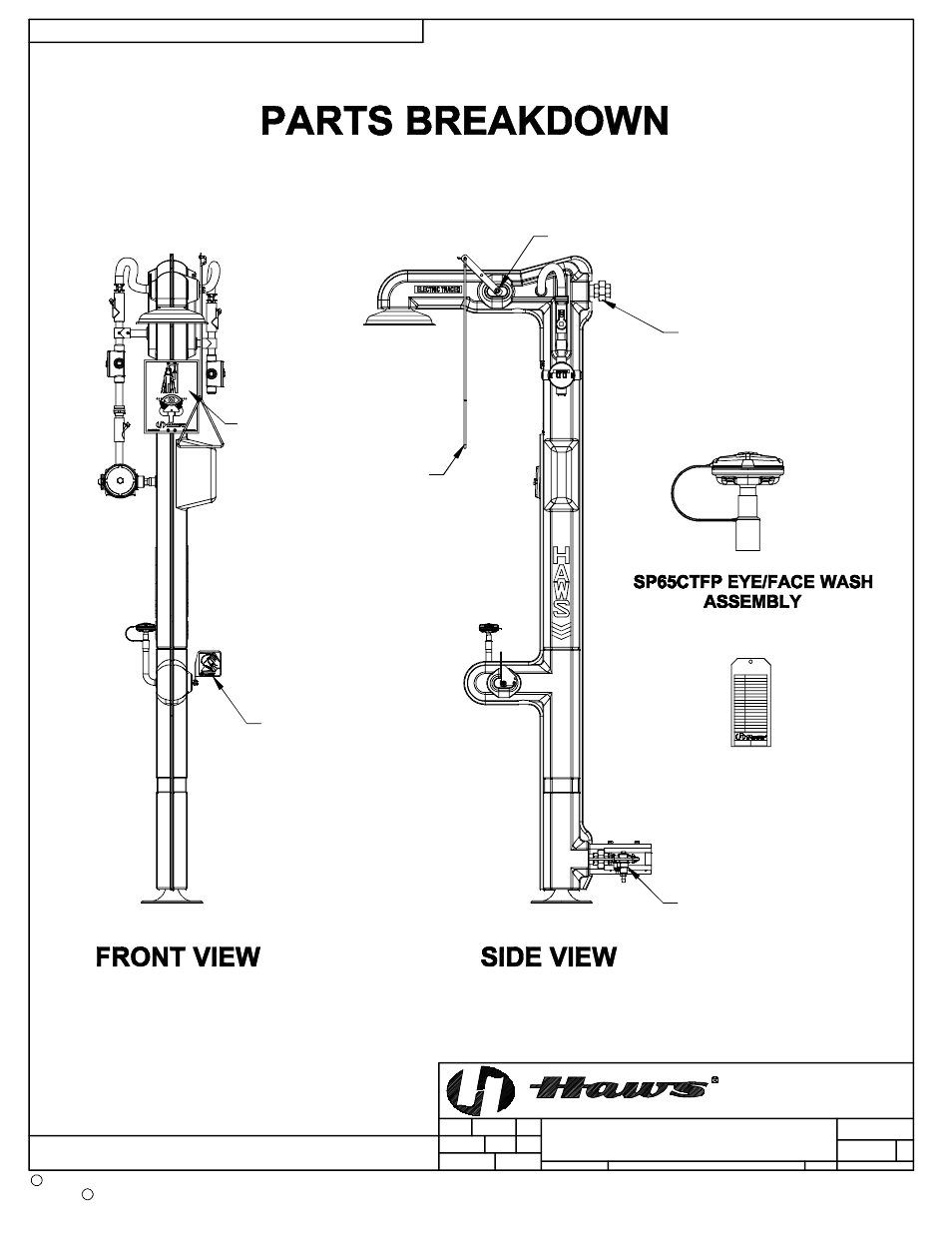

PARTS BREAKDOWN
