Parts breakdown, Sp65 eye/face wash assembly, Sp229 valve assembly – Haws 7270B User Manual
Page 3: Sp65 eye/face wash assembly (see detail) sp80
SP229 VALVE
ASSEMBLY
NOTE:
SP175
EYEWASH
SIGN
SP95
TRAP &
TAILPIECE
SP509
L-STRAINER
SP93
BOWL
SP170
TEST TAG
BRACKET

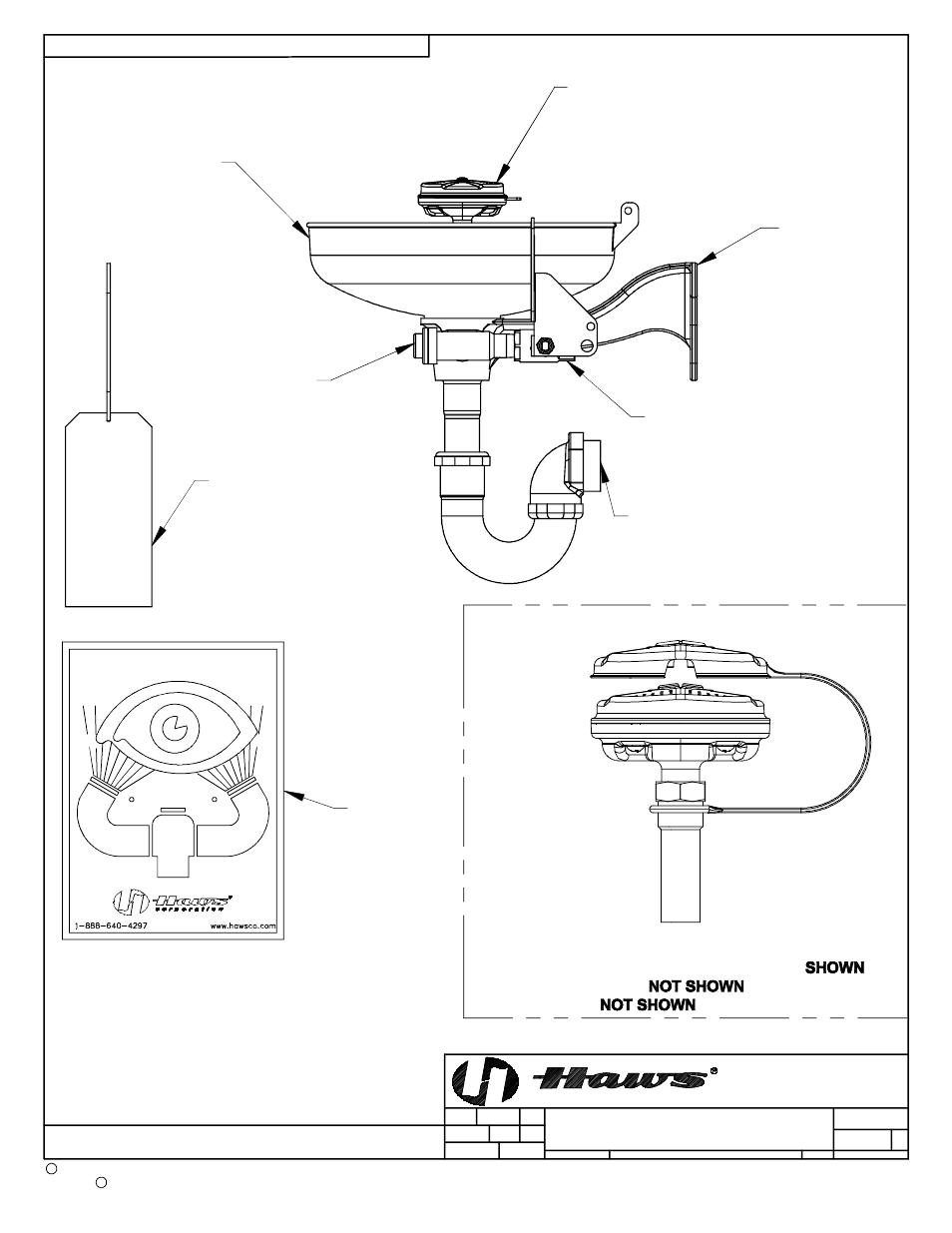

PARTS BREAKDOWN
TRAP & TAILPIECE SUPPLIED WITH MODEL 7260BT & 7270BT ONLY.
SP65 EYE/FACE WASH ASSEMBLY
(INCLUDES: EYE/FACE WASH HEAD (
)
EYEWASH HEAD (
), EYEWASH FLOW
CONTROL (
), DUST COVER (SHOWN)
SP65 EYE/FACE WASH
ASSEMBLY
(SEE DETAIL)
SP80
