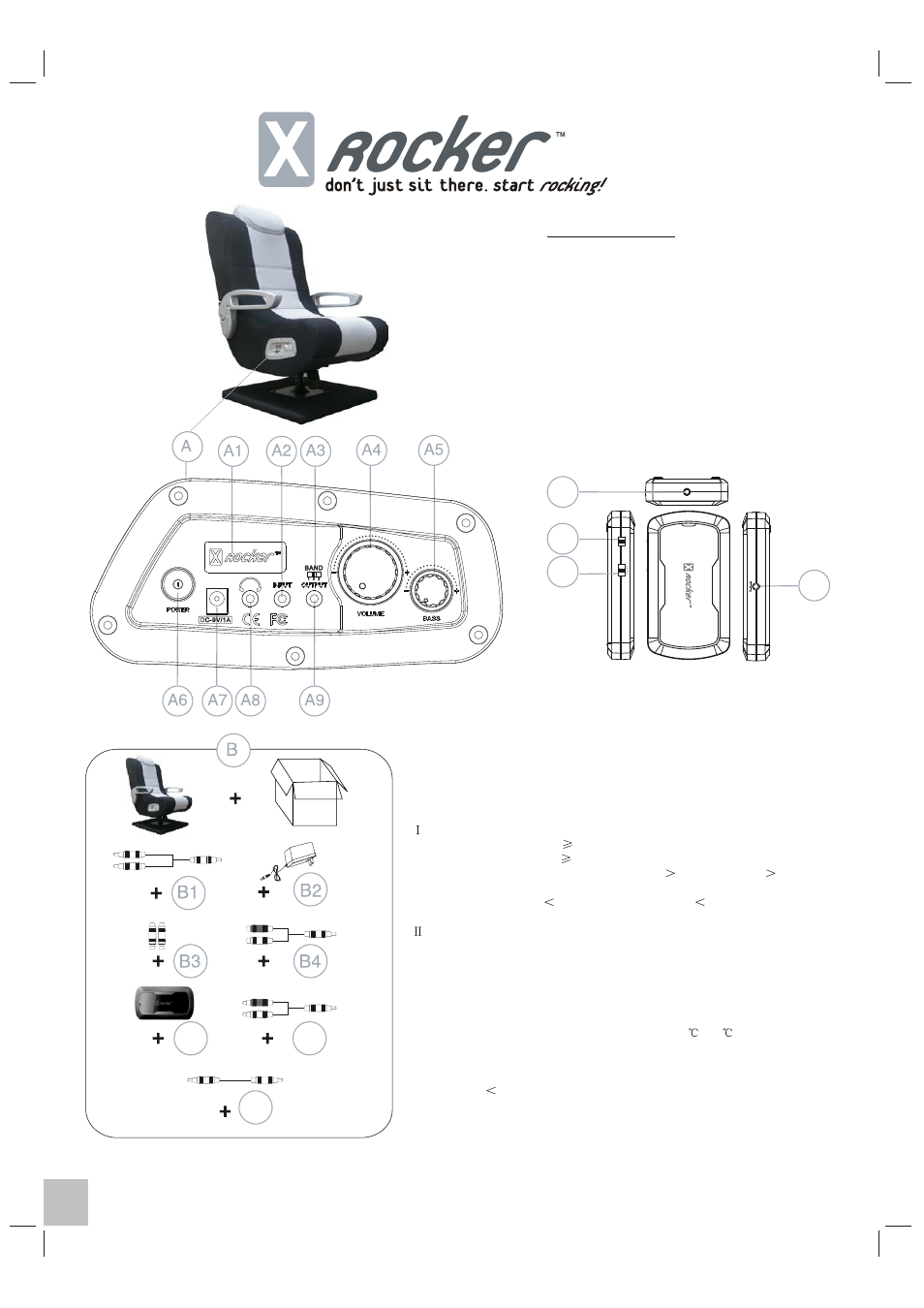

FEATURES
A-Control Panel
A1-Power Indicator Light of X-Rocker
A2-Audio Input Jack
A3-Wireless Band Switch of X-Rocker
A4-Volume Adjustment
A5-Bass Volume Adjustment
A6-Power On/Off Switch of X-Rocker
A7-9V DC Power Input Jack of X-Rocker
A8-Headphone Jack
A9-Audio Output Jack
A10-DC
Power Input Jack of TX
A11-Audio Input Jack of TX
A12-Power On/Off Switch of TX
A13-Wireless Band Switch of TX
3V/200mA
A12
A11
A13
AUDIO IN
OFF/ON
BAND
123
Transmitter
A10
DC IN
DC
3V
Need Help? Email: [email protected] Web: www.xfunctional.com
Phone: 931 359 2603, In the UK, call +44(0)208 978 3707 or +44(0)208 978 3708
B-Accessories Supplied with X ROCKER
B1-3m RCA Stereo male to 3.5mm stereo male cable (1 PC)
B2-INPUT:100-240V AC 50/60Hz
OUTPUT:9V DC 1000mA 9W Main POWER Adapter.
B3-RCA female to female barrel adapter (2 PC )
B4-0.15m RCA stereo female to 3.5mm stereo male cable (1PC)
B5-TX Box
B6-0.15m RCA stereo male to 3.5mm stereo male cable (1PC)
B7-3.5mm stereo male to 3.5mm stereo male cable (1PC)
C-Specification for X ROCKER
.The unit specifications:
Power output: Subwoofer: 3.5 W RMS
Satellite: 1.5WX2 RMS (THD=10%)
Signal-to-Noise Ratio(Amplifier):Subwoofer: 50dB Satellite: 60dB
Frequency Response: 60Hz~15kHz
Distortion: Subwoofer:
4% (F=100Hz) Satellite: 1% (F=1kHz)
Input: DC 9V/1A
.TX / RX specification:
1) TX Power supply
2XAAA Batteries (BATTERIES ARE NOT INCLUDED )
2) TX Current: 40mA
3) RX Current: 20mA
4) TX Transmission distance: < 65.6 ft / 20 meters (No buildings
or other barriers)
0 0 5) Environmental temperature: 14 F~158 F / -10 ~70
6) Modulation mode: FSK
7) TX Work frequency: 863.3, 863.9 Mhz
8) RX Work frequency: 864.55 MHz
9) TX Power:
10dBM
10) RX Sensitivity:-100dBM
11) RX frequency range: 50Hz~13KHz
12) Second harmonic suppression: -40dB
13) Band quantity: 3 channels
3V DC/200mA
9.84ft/3m
B6
B7
B5
0.492ft/0.15m
*SOME PARTS MAY VARY SLIGHTLY
0.492ft/0.15m
0.492ft/0.15m
S
