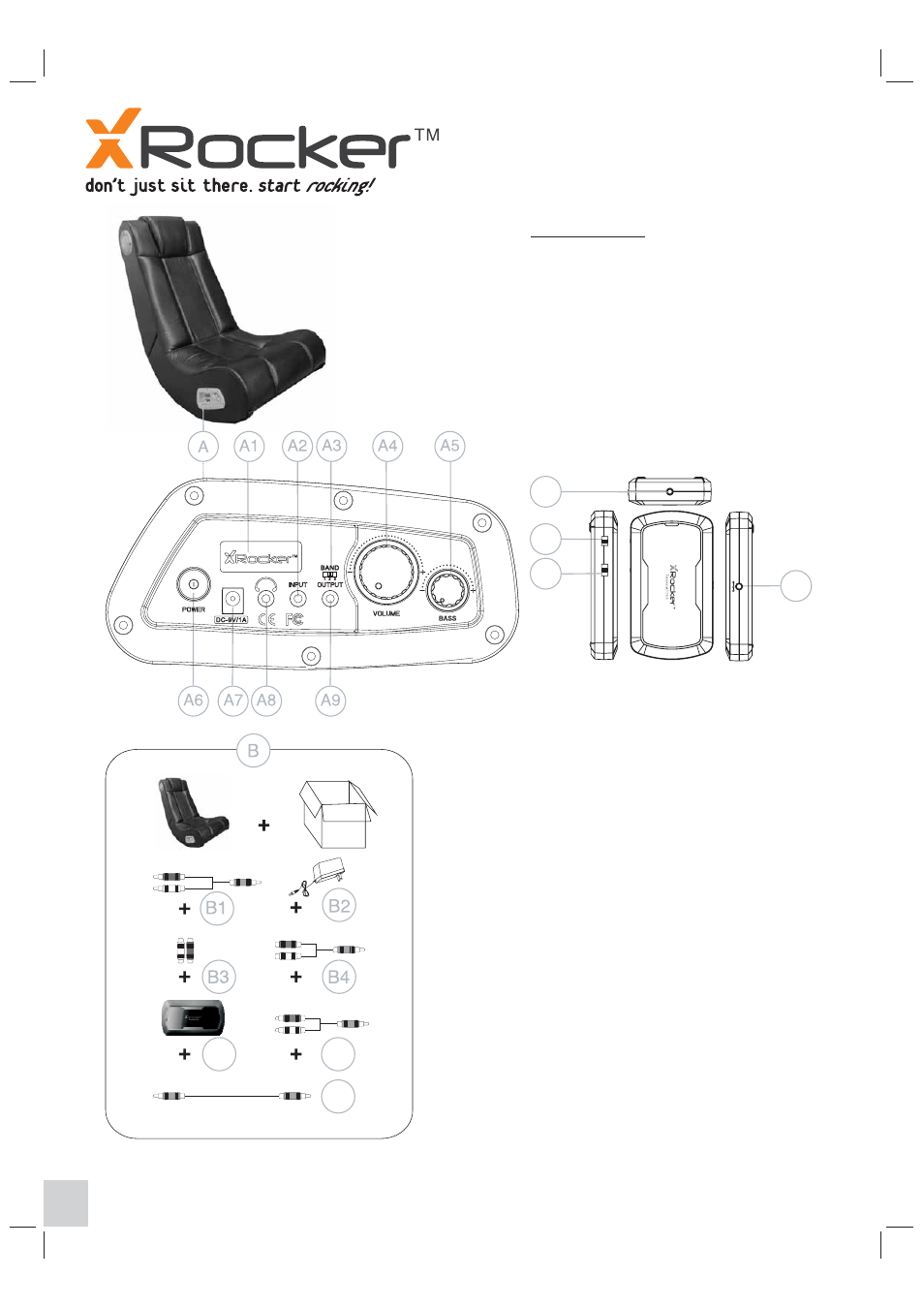

FEATURES
A-Control Panel
A1-Power Indicator Light
A2-Audio Input Jack
A3-
A4-Volume Adjustment
A5-
A6-Power On/Off Switch
A7-9V DC Power Input Jack
A8-Headphone Jack
A9-
A10-DC
Power Input Jack of TX
A11-Audio Input Jack of TX
A12-Power On/Off Switch of TX
A13-
Wireless Band Switch
Bass Volume Adjustment
Audio Output for linking multiple chairs
Wireless Band Switch of TX
3V/200mA
B-Accessories Supplied
B1-3m RCA Stereo male to 3.5mm stereo cable (1 PC)
B3-RCA female to female barrel adapter (2 PC )
B4-0.15
RCA s to
B5-TX Box
B6-0.15m
B7-3.5mm stereo
to (1PC)
male
B2-INPUT:100-240V AC 50/60Hz
OUTPUT:9V DC 1000mA 9W Main POWER Adapter.
S
m tereo female 3.5mm stereo male cable (1PC)
RCA stereo male to 3.5mm stereo male cable (1PC)
male 3.5mm stereo male cable
.
Signal-to-Noise Ratio(Amplifier):Subwoofer: 50dB Satellite: 60dB
Frequency Response: 60Hz~15kHz
Distortion: Subwoofer:
4% (F=100Hz) Satellite: 1% (F=1kHz)
Input: DC 9V/1A
.TX / RX specification:
1) TX Power supply
2XAAA Batteries (BATTERIES ARE NOT INCLUDED )
2) TX Current: 40mA
3) RX Current: 20mA
4) TX Transmission distance: < 65.6 ft / 20 meters (No buildings
or other barriers)
5) Environmental temperature: 14 F~158 F / -10 ~70
6) Modulation mode: FSK
7) TX Work frequency: 863.3, 863.9,864.55 MHZ
8) RX Work frequency: 863.3, 863.9,864.55 MHZ
9) TX Power:
10dBM
10) RX Sensitivity:-100dBM
11) RX frequency range: 50Hz~13KHz
12) Second harmonic suppression: -40dB
13) Band quantity: 3 channels
C-Audio Specifications:
The unit specifications: Ⅰ
＞ ＞
＜ ＜
Ⅱ
℃ ℃
＜
0 0
3V DC/200mA
Need Help? Email: [email protected] Web: www.thexrocker.com
Phone:1 931 359 2603, In Europe, call +44 (0)845 468 0262
