FEATURES

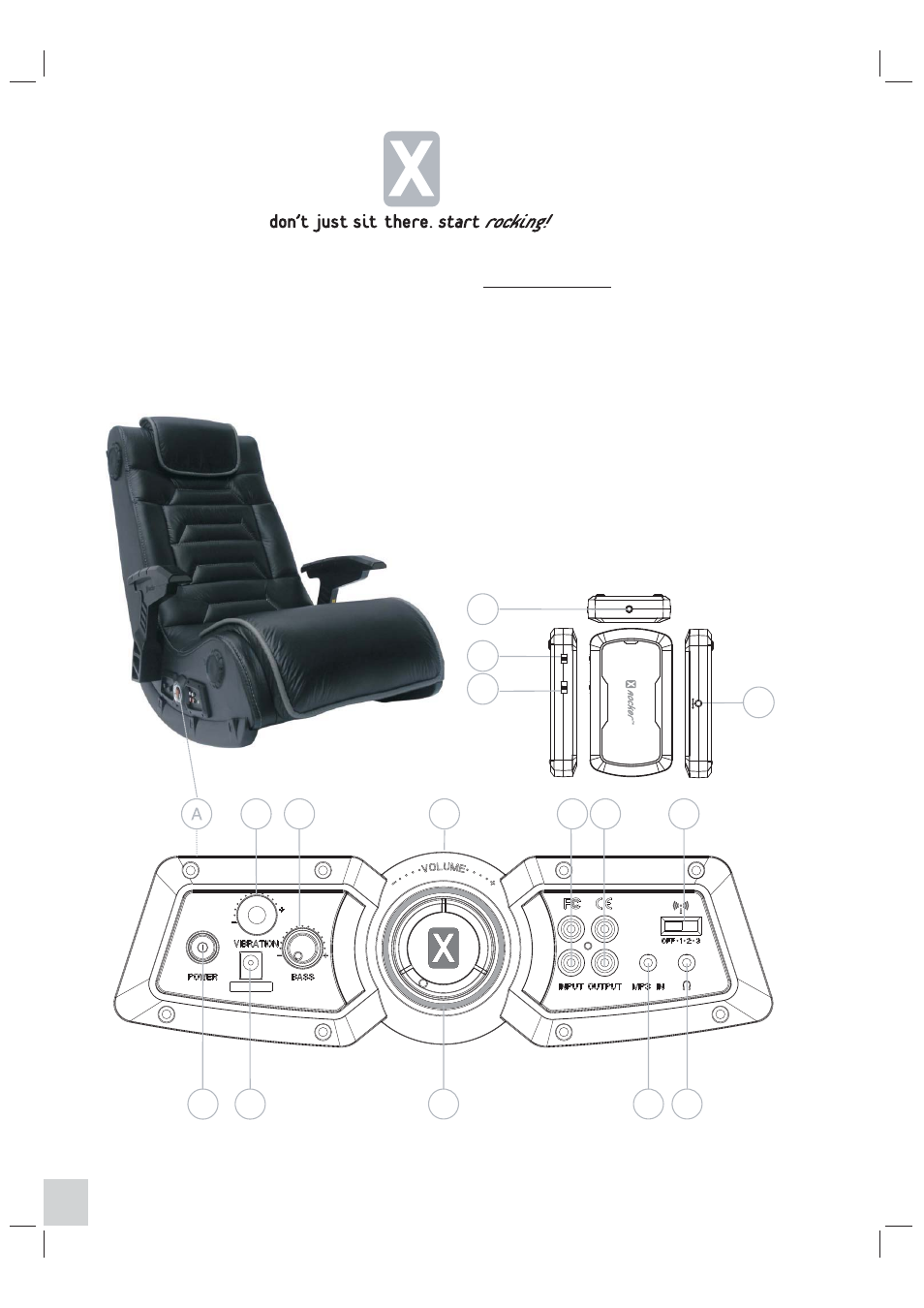

A-Control Panel
A2-Bass Volume Adjustment
A3-Volume Adjustment
A4-Audio Input Jack
A5-Audio Output Jack
A6-Wireless Band Switch of X
A7-Power On/Off Switch of X
A8-12V DC Power Input Jack of X
A9-Power Indicator Light of X
A10-MP3 Input Jack of X
A11-Headphone Jack
A12-DC 3V/200mA Power Input Jack of TX
A13-Audio Input Jack of TX
A14-Power On/Off Switch of TX
A15-Wireless Band Switch of TX
A1-Vibration adjustment
A14
A13
A12
A15
AUDIO I N
OFF/ON
BAND
1 ……
2 ……
3
D C I N
DC
3 V Transmitter
