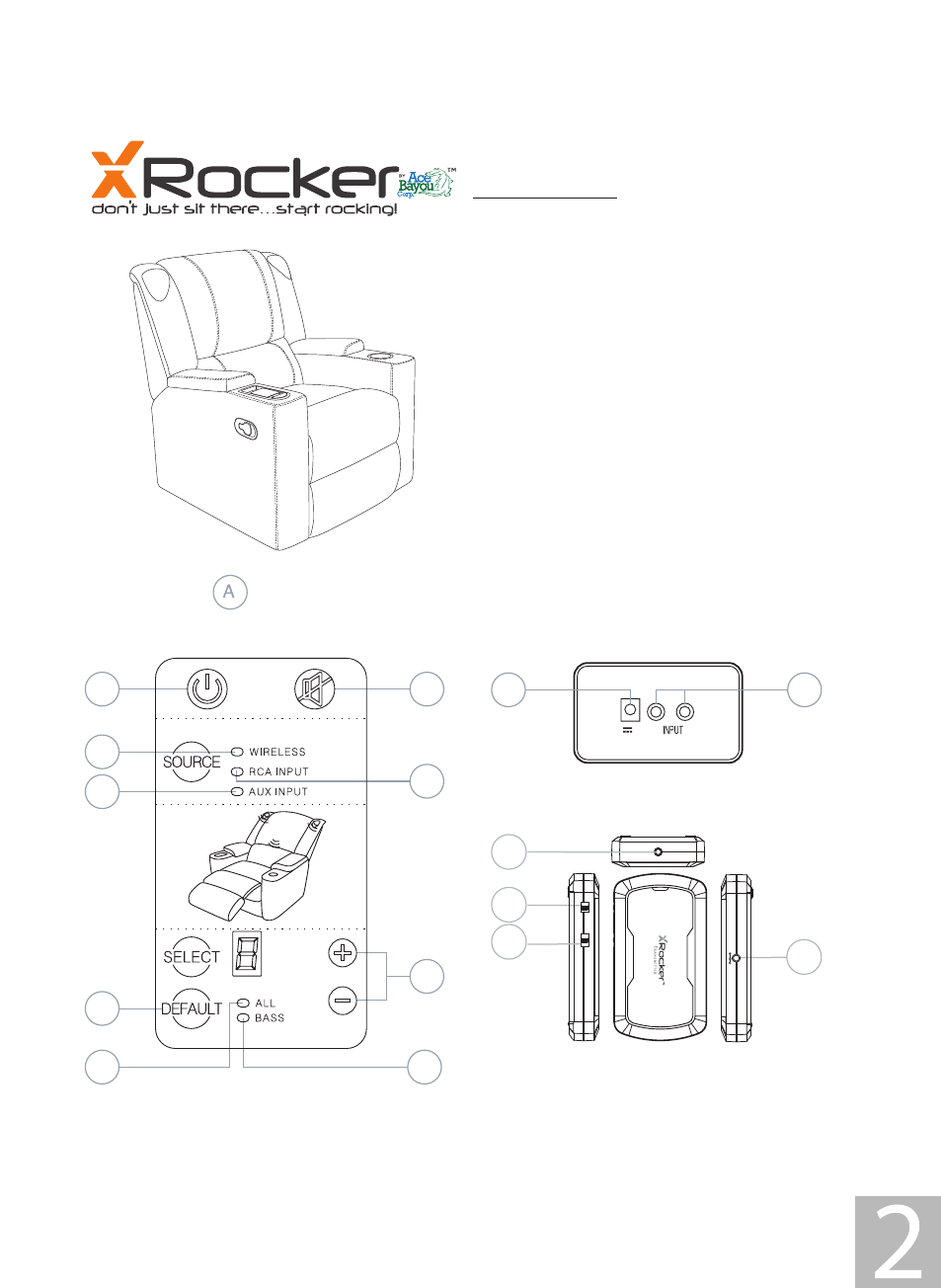

FEATURES
A-Control Panel
A1-Power On/Off
A2-Mute
A3-Source Choose/Wireless
A4- Source Choose/ RCA Input
A5- Source Choose /AUX Input
A6-Volume Select/All
A7-Volume Select/Bass
A8-Volume Default
A9-Volume and Bass adjustment
A10-Aux Input Cable
A11-Mini Device Holder
A12-12V DC Power Input Jack
A13-RCA Input Jack
A14-
DC 3V/200mA Power Input Jack of
Transmitter
A15-Audio Input Jack of Transmitter
A16-
Power On/Off Switch of
Transmitter
A17-
Wireless Band Switch
of Transmitter
A9
A8
A13
A1
A2
A3
A4
A5
A6
A7
A12
12V 2.5A
A16
A15
A14
A17
AU
DIO
IN
O
F
F
/O
N
B
A
N
D
1
2
3
…
…
…
…
D
C
IN
D
C
3V
