Installation Manual | Tropical Lighting System (AL Series)

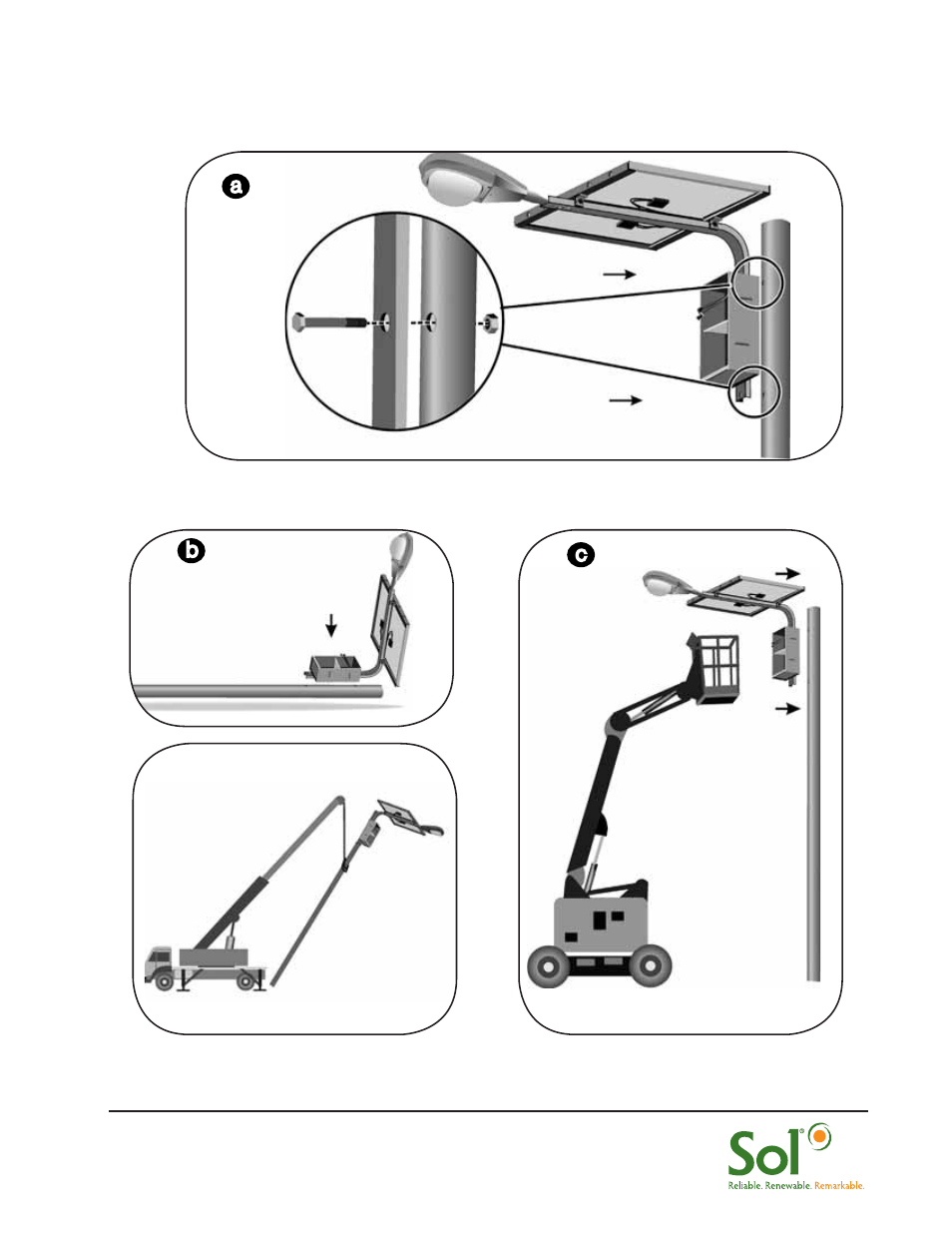

2.7 Attach the Assembled Arm to the Pole
On the Ground: On the Pole:
a
2 x 5/8-12” Bolt/Nut
Arm Fastener Set
b
c
