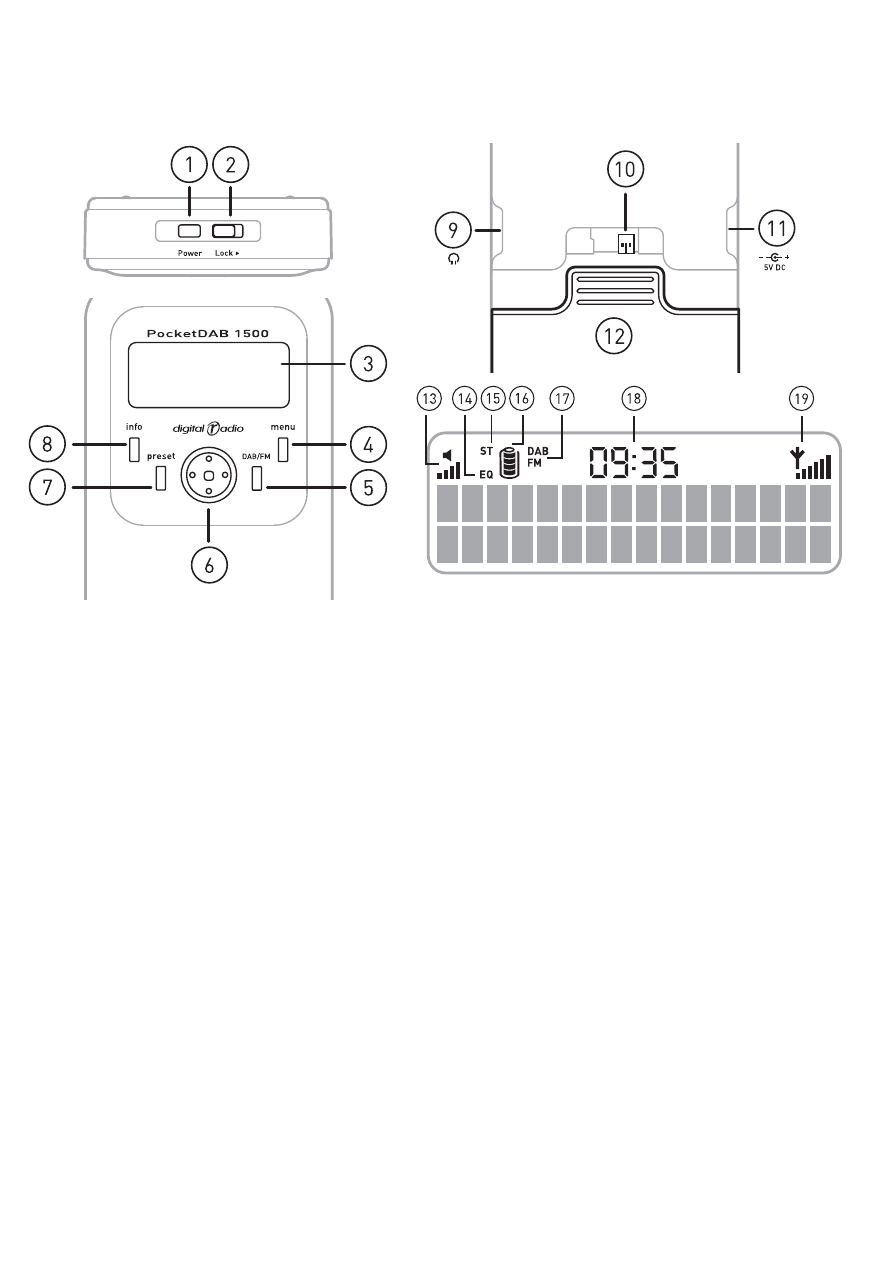

Overview diagrams
1. Power on/off (hold down for
around three seconds).
2. Button lock switch.
3. Backlit LCD display.
4. Options menu, see page 6.
5. Switches between DAB and FM.
6. 5-way navigator, rock left or right
to scroll and press the centre
to select radio stations or menu
options. Rock up or down to
increase or decrease volume. Press
to use textSCAN™.
7. Access preset stations.
8. Changes the information shown on
the display.
9. Headphone socket (3.5 mm).
10. Connector for ChargePAK™
rechargeable battery (supplied).
11. Connector for 5V DC mains
adapter (supplied)
12. Battery compartment cover.
13. Volume level (max=6 bars).
14. EQ on indicator.
15. Stereo indicator.
16. Battery power indicator (max=4
bars). Animated when charging.
Disappears when connected to DC
power and fully charged.
17. DAB or FM indicator.
18. Time from the most recently
selected DAB or FM (RDS) station.
19. Signal strength indicator (max=6
bars)
