10

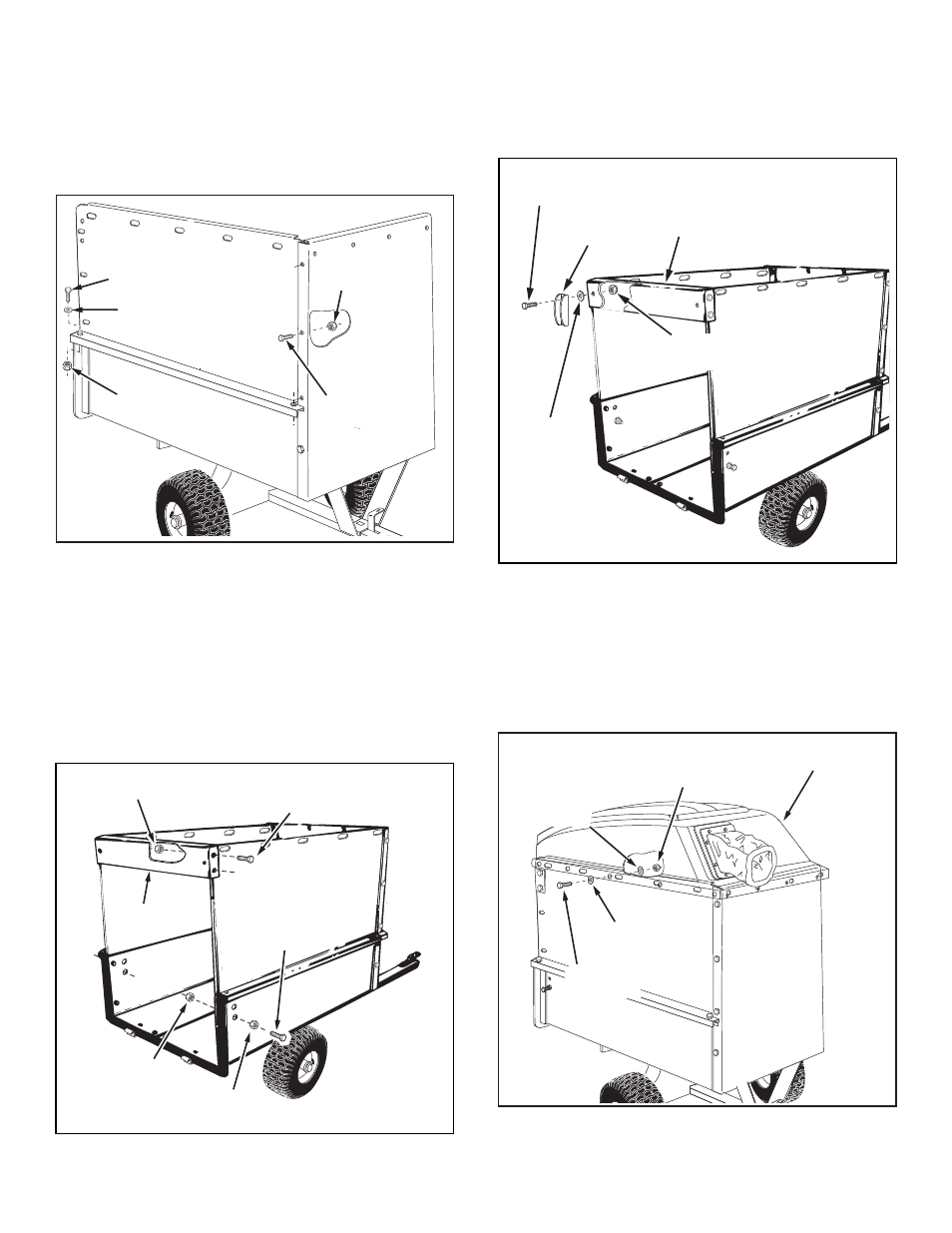

FIGURE 11
20. Place a side panel on top of the cart bed flange, inside
the lip of the front panel. Fasten the side panel to the front
panel using three 1/4" x 5/8" hex bolts and 1/4" Nylock
hex nuts. Fasten the side panel to the cart bed flange
using two 1/4" x 5/8" hex bolts, 1/4" flat washers, and
1/4" Nylock hex nuts.
Tighten. See figure 11. Repeat on
other side.
FIGURE 12
21. Screw a 1/4" Nylock hex nut approximately half an inch
onto a 1/4" x 1" hex bolt. Insert the bolt into the hole
shown in figure 12, in the side of the cart. Fasten the
bolt to the cart using a 1/4" Nylock hex nut.
Tighten so
that the nut is flush with the end of the bolt. Repeat on
the other side. See figure 12.
22. Assemble the cross brace to the top rear holes in the
side panels using four 1/4" x 5/8" hex bolts and 1/4"
Nylock hex nuts. See figure 12.
23. Assemble a door latch at each end of the cross brace
using a 5/16" x 3/4" hex bolt, a nylon washer and a
5/16" Nylock hex nut. Place the nylon washer between
the door latch and cross brace.
Tighten so that latch is
snug but will still rotate. See figure 13.
FIGURE 13
5/16" x 3/4"
HEX BOLT
CROSS
BRACE
DOOR
LATCH
NYLON
WASHER
5/16" NYLOCK
HEX NUT
24. Install the poly hard top using fourteen 1/4" x 3/4" hex
bolts and 1/4" flat washers on the outside and fourteen
1/4" flat washers and 1/4" Nylock hex nuts on the inside.
Tighten. See figure 14.
FIGURE 14
1/4" x 5/8"
HEX BOLT
1/4" NYLOCK
HEX NUT
1/4" NYLOCK
HEX NUT
1/4" x 5/8"
HEX BOLT
1/4" FLAT WASHER
1/4" x 3/4"
HEX BOLT
1/4" FLAT
WASHER
1/4" NYLOCK
HEX NUT POLY HARD TOP
1/4" FLAT
WASHER
1/4" NYLOCK
HEX NUT
1/4" NYLOCK
HEX NUT
1/4" x 5/8"
HEX BOLT
CROSS
BRACE
1/4" NYLOCK
HEX NUT
1/4" x 1"
HEX BOLT
